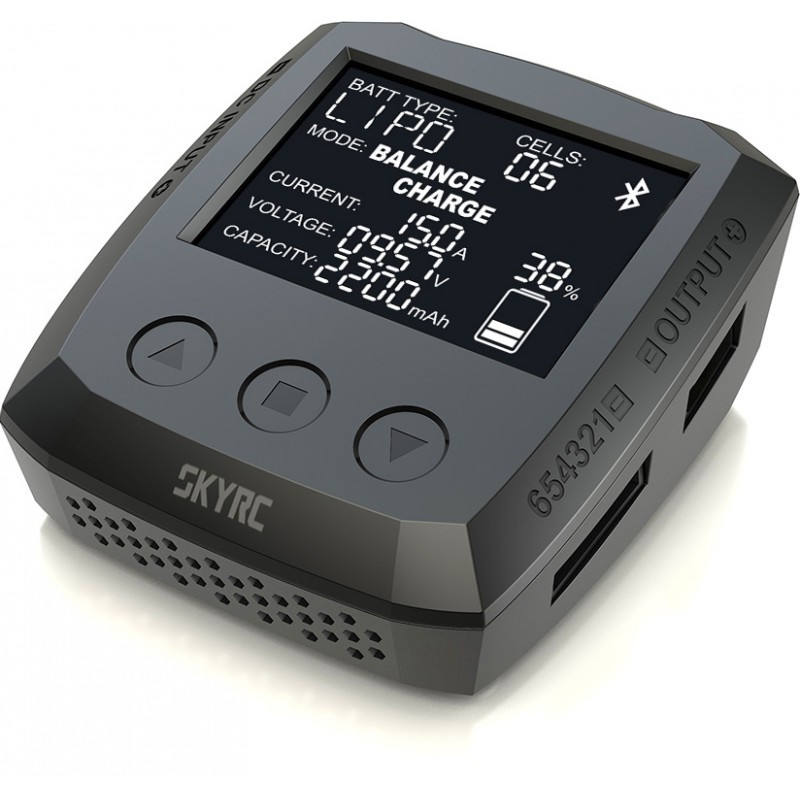

SKYRC B6 Nano DC Charger

Compact and powerful, the new SkyRC B6 nano charger is ideal for both home and field, and connects to your smartphone for even more convenient control.

Our great desire to always develop better chargers for model makers is at the heart of the design of the B6 nano. In order to be always at the best level of technology, an integrated Bluetooth module allows to control the B6 nano from a smartphone via an application.
With the Nano B6, it is even faster and more enjoyable to load your packs.

Capacitive touch keys
The B6 nano adopts touch keys, robust and durable, very responsive and easy to use. Loading becomes more flexible.

Powerful, tiny, smart, that's a good summary!
The B6 nano is highly optimized for both the firmware and its structure, while it can deliver a monster power for such a small size. The black screen and touch keys help to provide a better viewing and portability experience.

Powerful and super fast micro controller
The 32-bit ARM® Cortex®-M4F fast processor that manages the data improves processing speed by up to 20 times. With an input voltage at the top of what induistrie does (2.5 to 5.5 V), it offers great anti-interference capabilities.

Intelligent and efficient ventilation system
A fast fan running at 16,000 rpm is temperature controlled and blows air through an extruded aluminum heat sink, effectively cooling the system.

No need to scroll through complex menus, you see everything you need.
The big black 50 x 37.5 mm screen displays all the information at a glance.

SCAN TO GO
Smart Bluetooth technology makes it easy to control your charger from a smartphone. You can download the app from the App Store and Google Play. Also print a label to stick on your pack, and scan it to easily enter the info in the magazine.


Intuitive Android & iOS app
You can use the SkyCharge app to manage the charger from your smartphone.

Updates so easy!
With OTA (Over the Air) capabilities, you can install firmware updates from your mobile.


A wide range of supply voltage
To get the most out of the B6 nano, the supply voltage must be between 9 and 32 V (DC) with a power of 380 W or more. Poor power supply could damage your B6 nano charger. We recommend the SkyRC 380 W power supply. In the field, you can also use a LiPo battery pack 3 to 8S to power your charger.


Technical characteristics

• Supply voltage: DC9-32V
• Max load power: 320W
• Maximum discharge power: 5W
• Charging current range: 0.1-15.0A
• Discharge current range: 0.1-3.0A
• Number of LiPo / LiFe / Lilon / LiHV elements: 1-6S
• Number of NiMH / NiCd elements: 1 to 15
• Lead battery voltage: 2-20V
• Net weight: 130g
• Dimensions: 76x85x37mm
