ROBO 1002 23500KV Motor By Flywoo

Name: ROBO 1002 23500KV Motor By Flywoo
Brand: Flywoo
SKU: FW19002153
Price: 11.58 EUR
Availability: InStock

In stock

€11.58

View More Info

Quantity

This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

4X PayPal

2X 3X 4X

ROBO 1002 23500KV Motor By Flywoo - Drone-FPV-Racer.com

Detailed Description

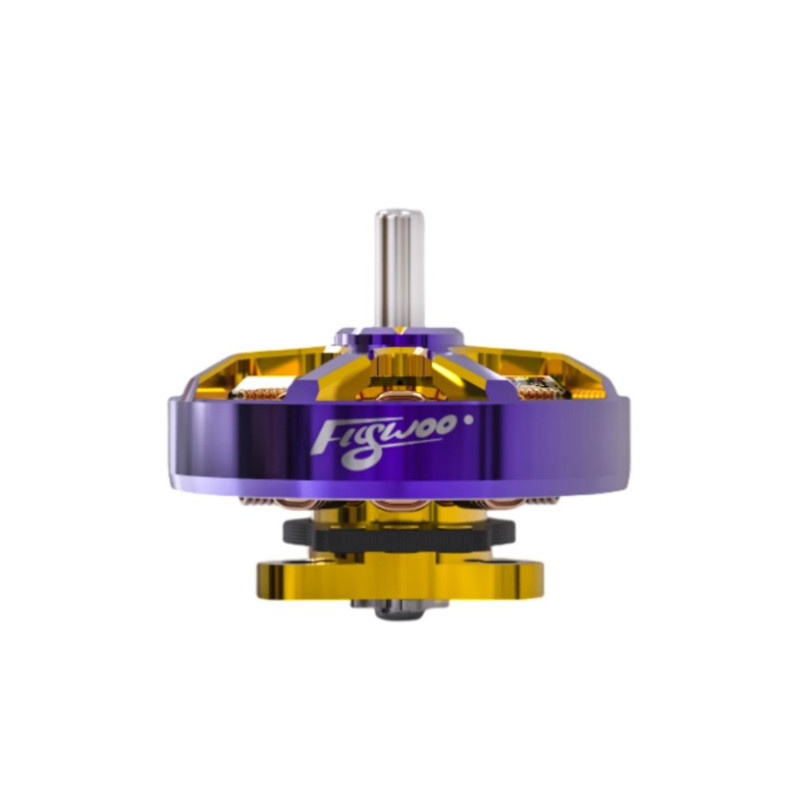

New Flywoo motor from the ROBO range with this 1002 in 23500KV.

Sporting Gold/purple colors for a new style, the motor has a shaft with 1.5mm in diameter, it is perfect for Gemfan two-blade propellers 1610 and 2015 for example.

Specifications

KV 23000

KV 24000

Shaft Type Pression

Shaft Size 1.5mm

Size 10XX

Specifications

Configuration: 9N12P
Stator Diamter: 10mm
Stator Length: 2mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.*Len): Φ13.5*7.75mm
Weight(g): 2.5(5cm wire)
Idle current(5)@5V(A): 1.5
No.of Cells(Lipo): 1S
Max Continuous Power(W)3S: 52
Internal Resistance: 75mΩ
Max Current(3S): 14A
Max Efficiency Current: (2-4A)>84%

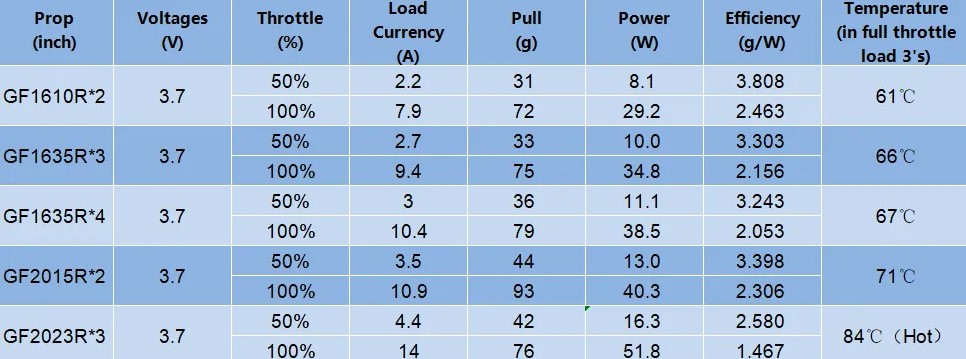

Typical Setup

Specifications

Configuration: 9N12P
Stator Diamter: 10mm
Stator Length: 2mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.*Len): Φ13.5*7.75mm
Weight(g): 2.5(5cm wire)
Idle current(5)@5V(A): 1.5
No.of Cells(Lipo): 1S
Max Continuous Power(W)3S: 52
Internal Resistance: 75mΩ
Max Current(3S): 14A
Max Efficiency Current: (2-4A)>84%

Included

1x Moteur ROBO 1002 motor
1x Set of M1.4*3 screws
