Manufacturer : Iflight / Référence : OM14601

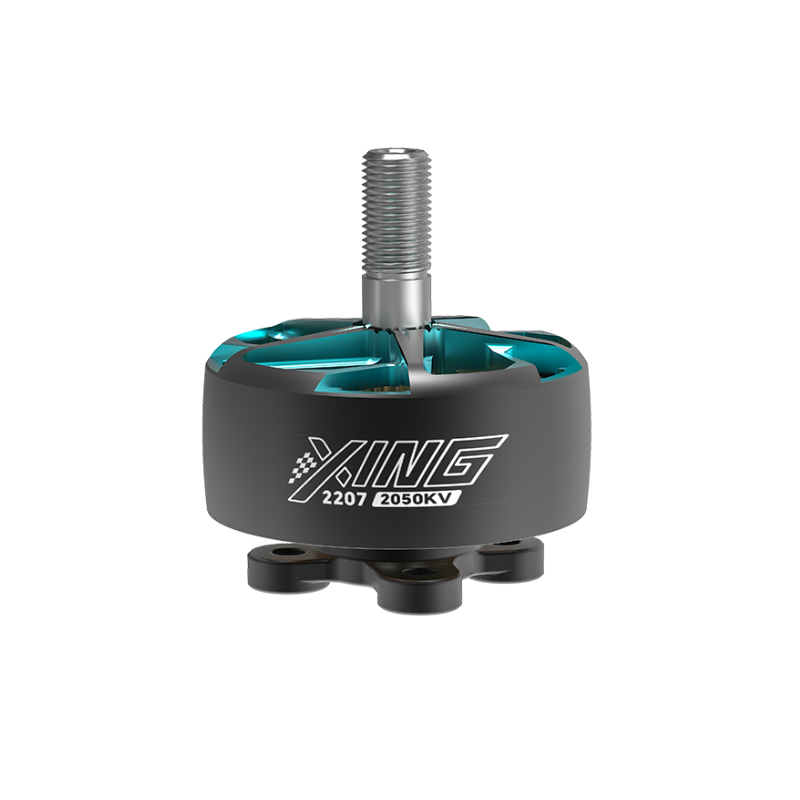

R5 2207 - 2050KV Motor By Iflight

En stock
€26.90
Same Day Shipping

3 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The R5 2207 motor is specially designed for Race drones such as the Mach R5 Sport.

This 2050KV motor from Iflight is made of high quality materials and new N52H curved arc magnets have been introduced to significantly reduce the response time of the motor.

Specifications

  • KV: 2050KV
  • Weight(included wire): 34.6g
  • Dimension: 28.2*31.5mm
  • Interphase Resistance: 56.3mΩ
  • Input Volts: 25.2V
  • Peak Current: 49.53A
  • Max Watt: 1166.4W
  • Mounting Holes: 16*16 φ3mm
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 12.5mm
  • Lead: 150mm/20AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ9*φ4*4
  • Winding: Single Strand copper winding

Included

  • 1x R5 2207 motor
