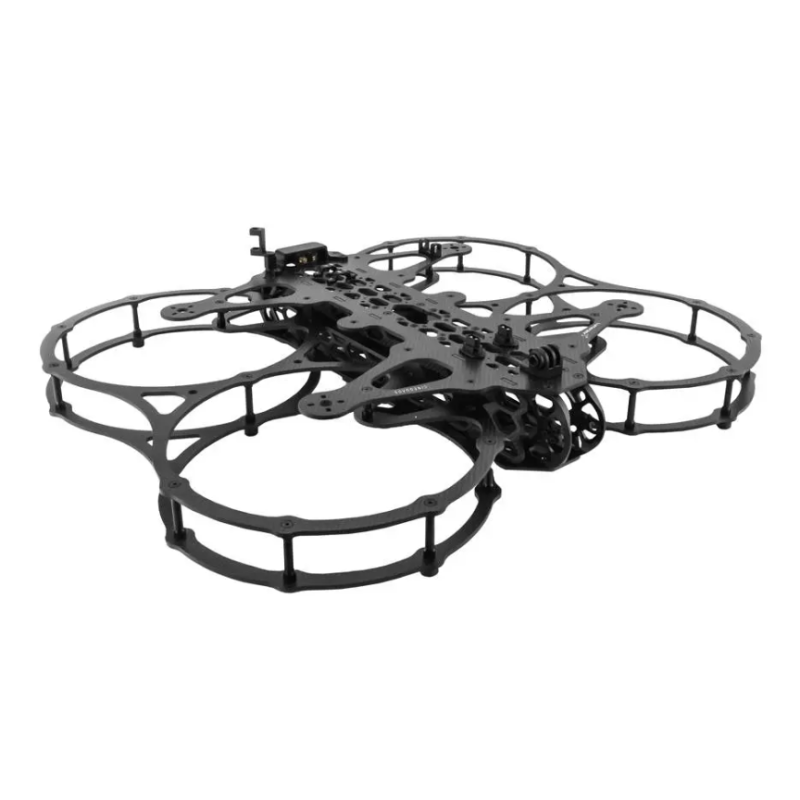

QAV-PRO Mega Whoop 7" Cinequads Edition Frame Kit By Lumenier

En stock
€799.90
Last items in stock

80 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The QAV-PRO Mega Whoop 7" is a professional cinematic drone capable of supporting large payloads such as cinema cameras.

This mega whoop born from the collaboration of Lumenier and Cinequads Edition is an excellent tool for your productions and can be used in many scenarios where additional security and stability are needed.


Bullet points

  • Additional XT30 connectors to allow cameras to be powered by the drone and reduce weight.
  • Compatible with cinematic cameras (RED KOMODO / DLSR)
  • Even weight distribution
  • Switchable flat cams for 19*19 or 20*20 FPV cameras
  • Rear, front or center cinema camera mounting
  • Durable carbon tubes
  • Nylon landing foot
  • Specially designed O3 heat sinks
  • Built by Lumenier and Cinequads Edition

Specifications

  • Connector: XT60 (1) for Battery + XT30 (2) for Cinema Cameras
  • Model: Lumenier QAV-PRO Mega Whoop 7" Cinequads Edition
  • FPV Camera Mounting: 20x20 or 19x19
  • VTX/AIO Mounting Patterns: 25x25mm
  • Antenna Mount Material: Aluminum
  • Motor Mounting Pattern: 9x9mm
  • Standoffs: M2x16mm Aluminum
  • Carbon Fiber Thickness: 1.5mm
  • O3 Heatsink Mounts: Aluminum
  • Dimensions: 470x400x60mm
  • Camera Mounts: Aluminum
  • Cable Mounts: Aluminum
  • Camera Plates: Carbon
  • Weight: Approx. 750g

Recommended parts (not included)

  • Motors: Lumenier ZIP V2 2812 kinematic motor - 1300KV
  • Receiver: TBS Crossfire Diversity Nano RX
  • Camera/VTX: DJI O3 Air Unit
  • Propellers: HQProp 7x3.5x3 V1S / Gemfan 7037
  • Antennas: TBS Crossfire Immortal T Antenna V2 - Extra Extended
  • Battery: 6S 120C 4000-5200mAh

Included

  • 1x Aluminum QAV-PRO Universal Camera Mount Base
  • 1x Lumenier QAV-PRO Mega Whoop Bottom Plate
  • 1x Lumenier QAV-PRO Mega Whoop Middle Plate
  • 1x Lumenier QAV-PRO Mega Whoop Top Plate
  • 1x USB-C to 90° USB-C Extension Cable
  • 1x 4mm O3 Mounting Heatsink Kit
  • 2x Aluminum Camera Mount
  • 2x XT30 3D Printed Mount
  • 1x Lumenier LiPo Strap
  • 1x Foam Battery Shield
  • 4x Rubber Grommets
  • 4x M2 Steel Hex Nut
  • 1x XT60 Connector
  • 2x XT30 Connector
  • 1x Antenna Mount
  • 4x Landing Feet
  • 1x Hardware Kit
  • 1x XT60 Mount
  • 6x Standoffs
  • 6x Zip Ties
