Manufacturer : SkyRC / Référence : SKY200028

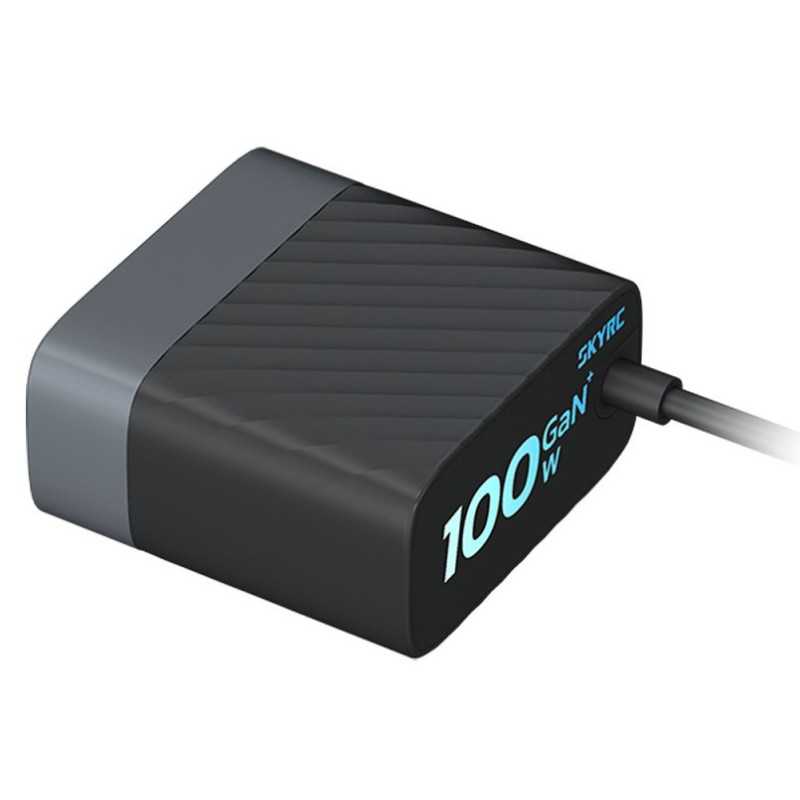

PDC100 (100W) GaN Charger (USB-C) By SkyRC
Hors stock
€25.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
SkyRC PDC100 is a compact, high-efficiency charger designed to deliver stable power to SkyRC smart chargers and other compatible devices.
With support for major fast charging protocols including PD3.0, PPS, QC2.0/3.0, this charger ensures wide compatibility and rapid charging capabilities.
Leveraging GaN (Gallium Nitride) technology, it achieves high performance with excellent thermal control in a lightweight, travel-friendly size.
Specifications
- Input Voltage/ Frequency : 100-240V AC, 50/60HZ
- Input Interface : AC Mains Socket
- Output Interface : Integrated 30cm USB-C output cable
- Rated Output Power : 100W
- Standby Power : < 0.3W
- Protocols Supported : PD3.0, PPS, QC2.0/3.0
- USB-C Output PD3.0 : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
- USB-C Output QC2.0 : 5V/3A, 9V/12V (Max 20W)
- USB-C Output QC3.0 : 5V ~ 12V (Max 20W)
- USB-C Output PPS : 5V-21V
- Output Voltage Range (No Load) 5V : 4.9V ~ 5.2V
- Output Voltage Range (No Load) 9V : 8.9V ~ 9.3V
- Output Voltage Range (No Load) 12V : 11.7V ~ 12.3V
- Output Voltage Range (No Load) 15V : 14.6 V ~ 15.4V
- Output Voltage Range (No Load) 20V : 19.5V ~ 20.5V
- Load Compensation : +80mV/A (Max), e.g., at 5A load, 20V output = 19.5V -20.9V
- Conversion Efficiency : > 86%
- Overcurrent Protection 3A : 3.6±0.3A
- Overcurrent Protection 5A : 5.6±0.3A
- Short Circuit Protection : Yes
- Dielectric Withstand : AC-USB-C 3000V, <10mA leakage, 60s
- Operating Environment Temp : 0°C to 40°C
- Operating Environment Humidity : 5%~ 75% RH (non-condensing)
- Storage Environment Temp. : -10°C ~ 70°C
- Storage Environmen Humidity : 5% ~ 75% RH (non-condensing)
- Dimensions (LxWxH) : 63.5 x 62 x 32 mm
- Weight : ~150 g
Included
- 1x PDC100 charger
- 1x AC power Cord
- 1x Manual
