Manufacturer : Iflight / Référence : FQ18004

Nazgul Evoque F6D V2 O4 Frame Kit By Iflight

En stock
€109.90
Same day shipping

11 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

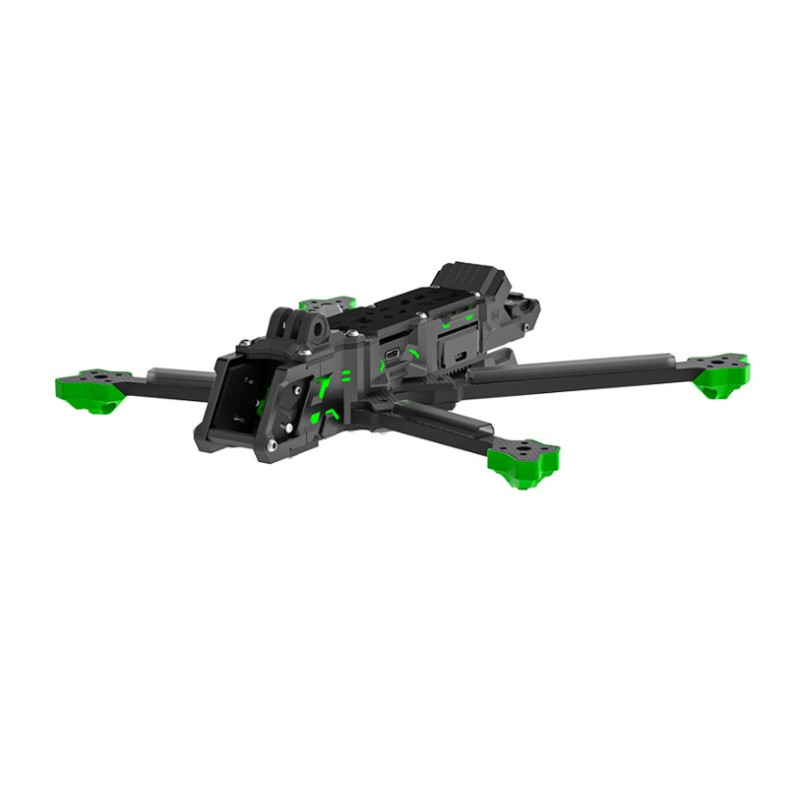

The Nazgul Evoque F6D is a versatile 6" DeadCat frame designed with a useful airflow that keeps components cool and clean without compromising weight or performance.

Now compatible with the DJI O4 air unit pro, the F6D features illuminated side panels and offers improved protection and versatility.

Specifications

  • Frame wheelbase: 262mm (DeadCat)
  • Frame Dimension: 209*162*36mm
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Max Flight Stack Height: 22mm
  • Max VTX Height: 22mm
  • Motor Mounting: 16x16mm φ3 mm
  • Flight Stack Mounting: 20*20/Φ3mm
  • VTX Mounting: 25.5*25.5/Φ2mm
  • Weight: 269±5g
  • Compatibility: DJI O4 Air Unit Pro/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

Included

  • 1x Evoque F6 V2 O4 Frame Kit
  • 2x IPEX to RP-SMA Antenna Pigtails
  • 1x Dual Antenna TPU
  • 1x GoPro TPU Base Mount
  • 1x Screw Bag
  • 4x TPU Arm guard
  • 2x Anti-slip Battery Pad
  • 2x Battery Strap
