Manufacturer : GEPRC / Référence : GP106742

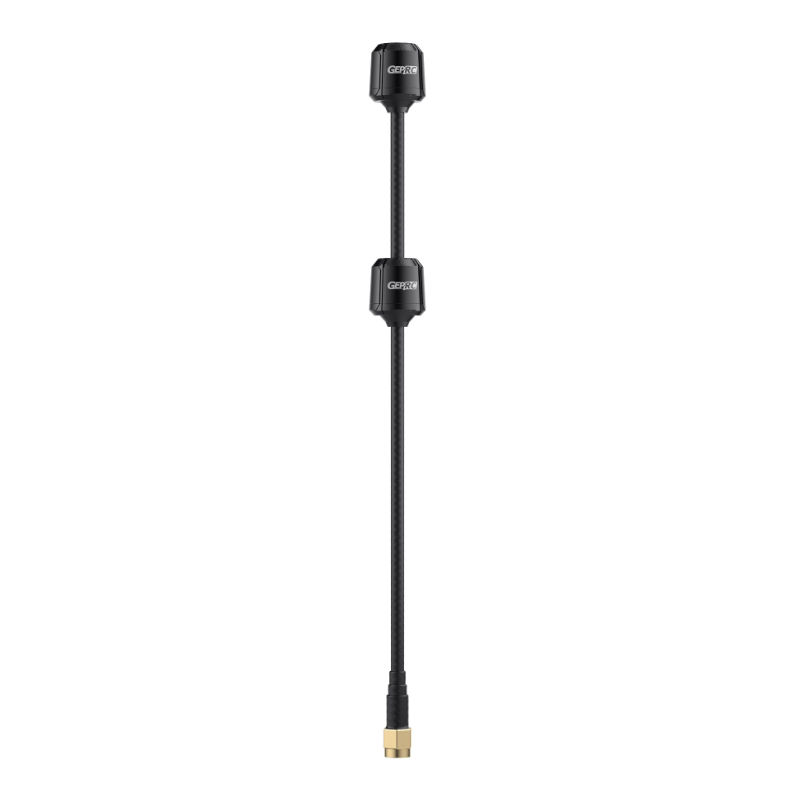

Momoda2 5.8G RHCP SMA Dual Antenna By GEPRC

En stock
€14.90
Size : 90mm
Size : 90mm Size : 170mm
Same day shipping

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)
Related products

Technical characteristics

Momoda2 5.8G dual antenna ensures stable and reliable image transmission during flight, with extended transmission distance.

This omnidirectional antenna from GEPRC has SMA connector and RHCP polarization.

Specifications

  • Center Frequency: 5.65GHz
  • Bandwidth: 5.3GHz～6GHz
  • Polarization: RHCP
  • Gain: 3.8dbi
  • Axial Ratio: ≤3

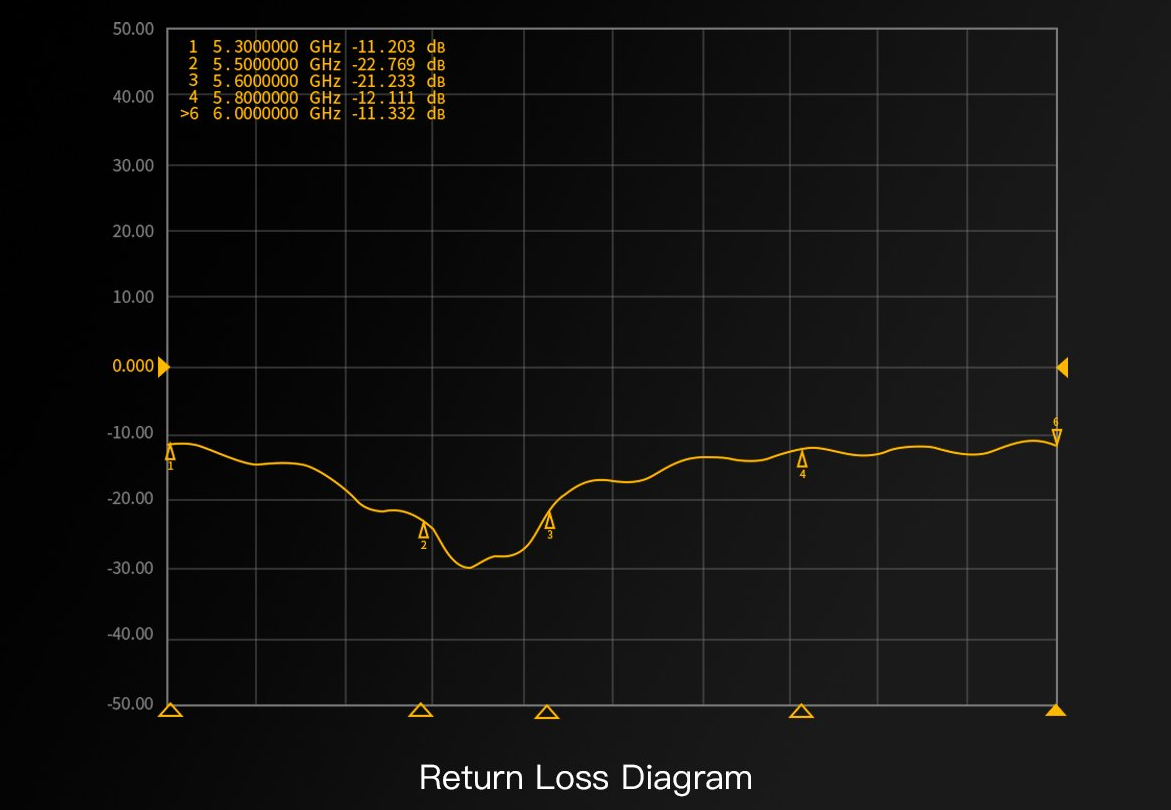

  • VSWR: ≤1.43
  • Radiation Efficiency: 85%
  • Cross Polarization Suppression: -25dB
  • Length: 170mm ou 90mm
  • Design Compostion: FPC+PCB
  • Weight: 16.6g
  • Enclosure Material: ABS
  • Connector Type: SMA

Included

  • 1x Momoda2 5.8G dual antenna
