Micro Cat 4 FPV Camera By Foxeer
Hors stock
€48.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

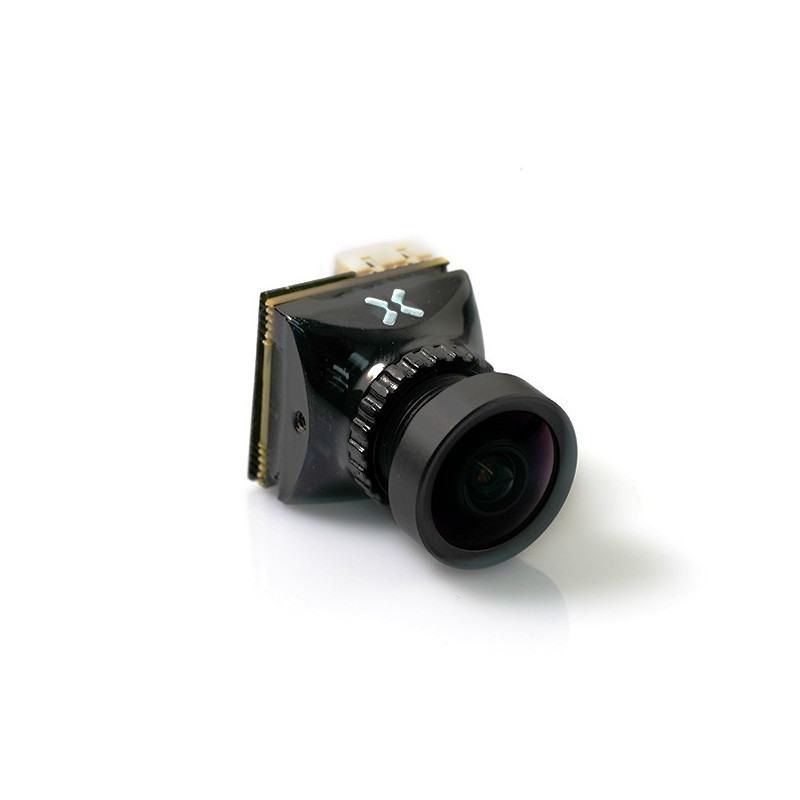

This Foxeer micro analog FPV camera features a 95° FOV, 1200TVL resolution, 4:3 and 16:9 switchable aspect ratio and is equipped with a Sony 1/3" CMOS sensor.
It offers universal compatibility (PAL/NTSC formats, 4:3/16:9 ratio) and advanced features like OSD, WDR, 3DNR and a wide power input range, all in a micro compact body.
Specifications
- Sensor Type : Sony 1/3" CMOS Sensor
- Scale : 4:3(Default)/16:9 Switchable
- Tv System : PAL(Default)/NTSC Switchable
- Resolution : 1200TVL
- Lens : M12 2.1mm Low Light Lens
- FOV 4:3 : FOV-H: 95° , FOV-V: 72°, FOV-D:120°
- FOV 16:9 : FOV-H: 95°, FOV-V: 53°, FOV-D:110°
- Shutter Speed : PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
- Video Output : CVBS Analog Signal
- Minimum Illumination : 0.00001Lux
- White Balance : Auto
- DNR : 3DNR
- WDR : 100dB
- DAY/NIGHT : EXT/Auto/Color/B&W
- Flight OSD : Voltage/Cam Title/Time
- Input Voltage : 5V~20V
- Language : ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
- Working Temperature : -10°~50°C RH90% MAX
- Working Humidity : 20~80%
- Storage Temperature : -20°~70°C
- Consumption : 95mA±15% @ DC12V

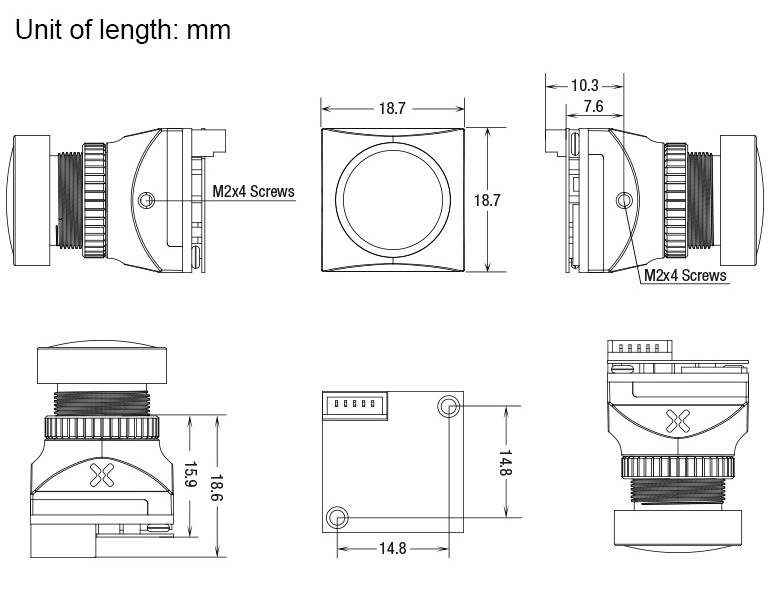

- Dimension : 19*19mm
- Weight : 11.8g(Exclude cable)
Included
- 1x Camera
- 1x Silicon cable
- 1x Hardware set
- 1x OSD board
