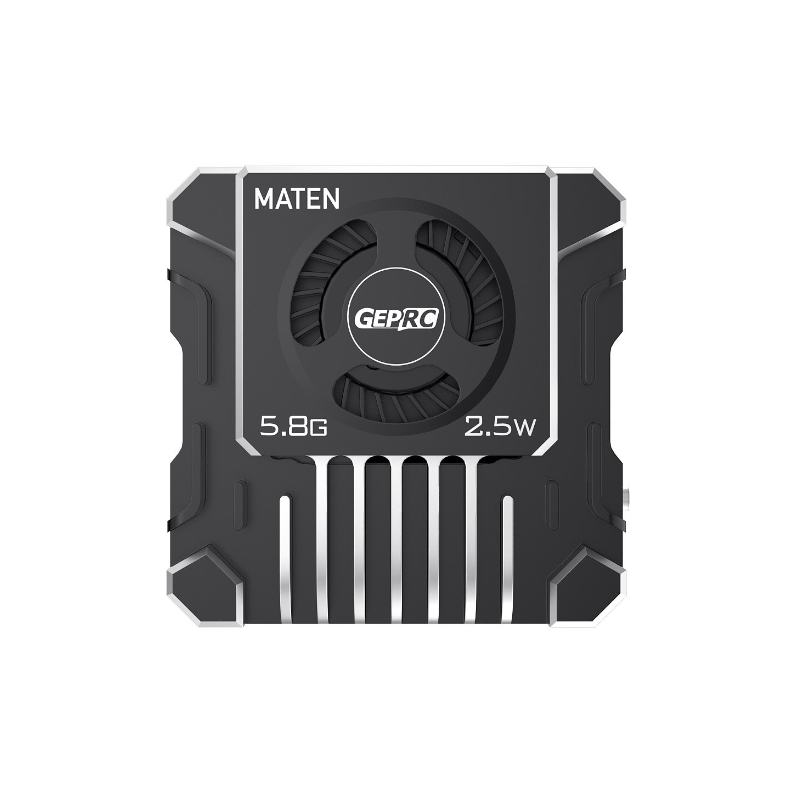

MATEN 5.8G 2.5W VTX PRO By GEPRC
Related accessories
Technical characteristics
Experience the powerful performance of GEPRC's VTX PRO MATEN 5.8G 2.5W.
This analog VTX has 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.
The durable CNC aluminum alloy shell provides an original aesthetic while facilitating heat dissipation. The MATEN supports the IRC Tramp protocol and can use the OSD to quickly adjust settings. In addition, the built-in mic can transmit drone sound in real time.
It has a wide voltage input of 7-36V and a temperature control protection function to prevent overheating or burning.
Finally, supporting 72 transmission channels, the VTX can be installed in 20*20mm and 30.5*30.5mm.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Specifications
- Size：36.3×36.3×15.1mm
- Mounting hole：20x20mm(M2),30.5×30.5mm(M2)
- Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode
- Frequency：5.8G
- Channel：72CH
- Input voltage：DC7-36V（2-8S Battery）
- Output voltage：5V@600mA
- Protocol：IRC Tramp
- Antenna interface：MMCX
- Cable interface：SH1.0 6pin
- Video format：PAL/NTSC
- Microphone: Built in microphone
- Color : Black / silver
- Weight：20g
Included
- 1x MATEN 5.8G 2.5W VTX PRO
- 1x MMCX Copper tube antenna
- 1x MMCX to RP-SMA（Internal needle）connector
- 1x sh1.0 6P Connecting cable
- 6x M2*5 screw
- 4x M2*12 screw
