Detailed Description

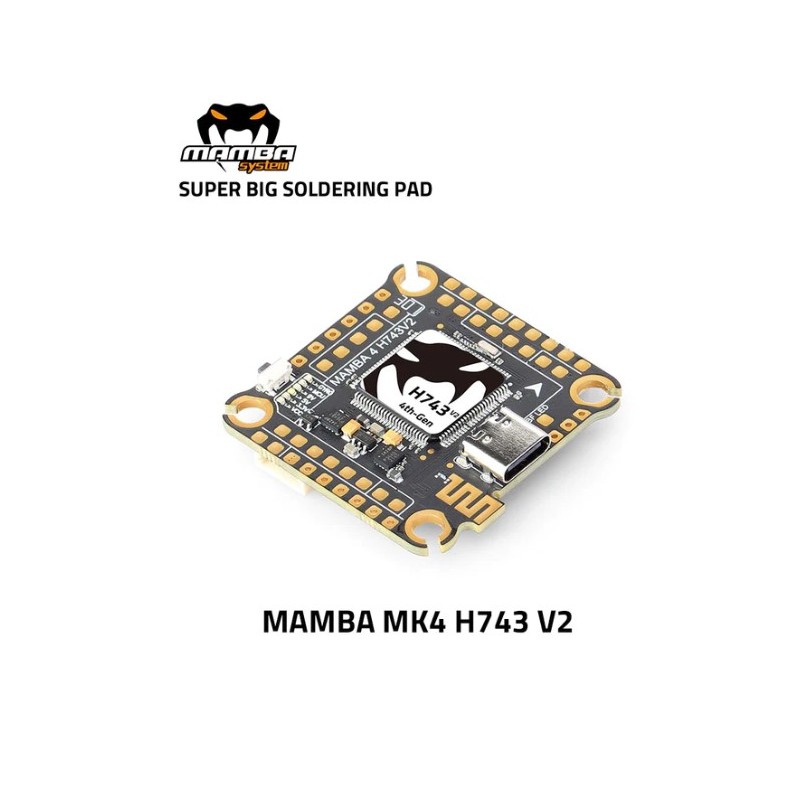

This Mamba H743 V2 flight controller from Diatone has an ICM-42688-P gyro, an OSD, a barometer and 8 UARTS.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

MK4H743V2_ICM42688P_-01_ae0d52cd-7113-45f4-9e22-29746c650f9c.jpg?v=1667891375

Specifications

Video DJI FPV
Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Processor H7
Voltage 6S
Gyro ICM42688-P
Barometer With Baro
Mount Size 30.5x30.5mm

Specifications


  • MCU: 480MHz STM32H743
  • GYRO: DUAL ICM-42688-P
  • Target：MAMBA H743_2022B
  • OSD: Yes
  • Blackbox: 128M Flash Memory
  • Barometer: SPL06
  • Uarts: 8Set
  • I2C: Yes
  • F.Port: Yes
  • RSSI: No
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 8 Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED/MB LED
  • AIR UNIT Port: Yes
  • WIFI: SpeedyBee APP
  • VTX Switch: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A& 9V 3A
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting size: 30.5mm/M3

Included


  • 1x Mamba H743 V2 FC
  • 1x SH1.0 cable for air unit
  • 1x SH1.0 8pin cable
