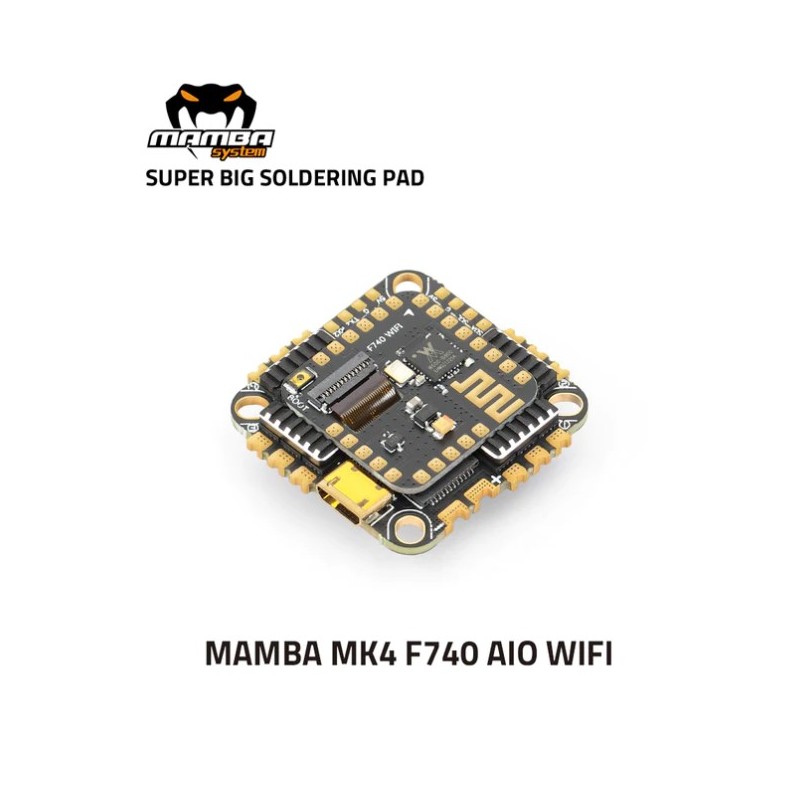

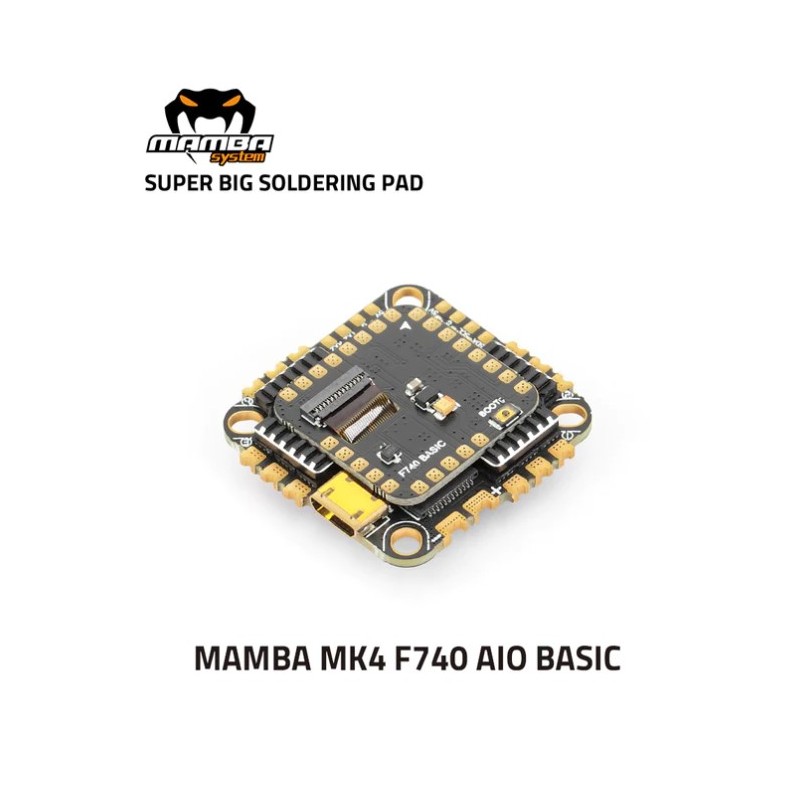

Mamba F740 AIO 40A 6S 32bit By Diatone

4.3/5 (6 notifications)
Hors stock
€117.90
Version : WIFI
Version : Basic Version : WIFI
Out-of-Stock Notify me when the product is available again

12 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

This Mamba F740 40A 6S AIO from Diatone has an ICM-42688-P gyro, an OSD, a barometer and 6 UARTS.

Available in BASIC or WIFI version, this mamba mounts in 25.5*25.5mm and supports Dshot300/600.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

FC Specifications

  • Target：MAMBA F722_2022B
  • MCU: 216MHz STM32F722
  • GYRO: ICM-42688-P
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: 16 M Flash Memory
  • Uarts: 6 Set
  • Motor Signal:4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller: BF LED
  • AIR UNIT Port: Yes
  • WIFI: No（Basic）/SpeedyBee (WIFI) Optional
  • F.Port: Yes
  • RSSI: No
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC: 3.3V 0.5A&  5V 2A
  • Mounting size: 25.5×25.5mm/M2

ESC Specifications

  • Input: 3~6S Lipo (12.6~25.2V)
  • Continue Current: 40A×4
  • Burst current: 45A (10S)
  • Target：BLHeli_32 MAMBA F40_128K
  • SOFT: Dshot300/600
  • PWM:24~128K

Included

  • 1x High Frequency 470uF/35V
  • 1x AIR UNIT sh1.0
  • 2x 16AWG 60mm
  • 1x AMASS Original XT60
Voir plus

Customer reviews

4.3/5 (6 notifications)
Par le 04/08/2024

AIO destiné à un cinewhoop, très compact

Par le 27/03/2024

It's okay. Working great

Par le 23/08/2023

après essai sens de rotation moteurs, plus de bip demarage esc et impossible de faire tourner les moteurs sur betaflight je l'ai prise pour avoir belheli 32 mais diadone fini pour moi

Par le 19/08/2023

Fonctionne bien pour l'instant voir a l'usage

Par le 19/01/2023

pas encore installé mais ça respire la qualité.

Par le 08/01/2023

Parfait
