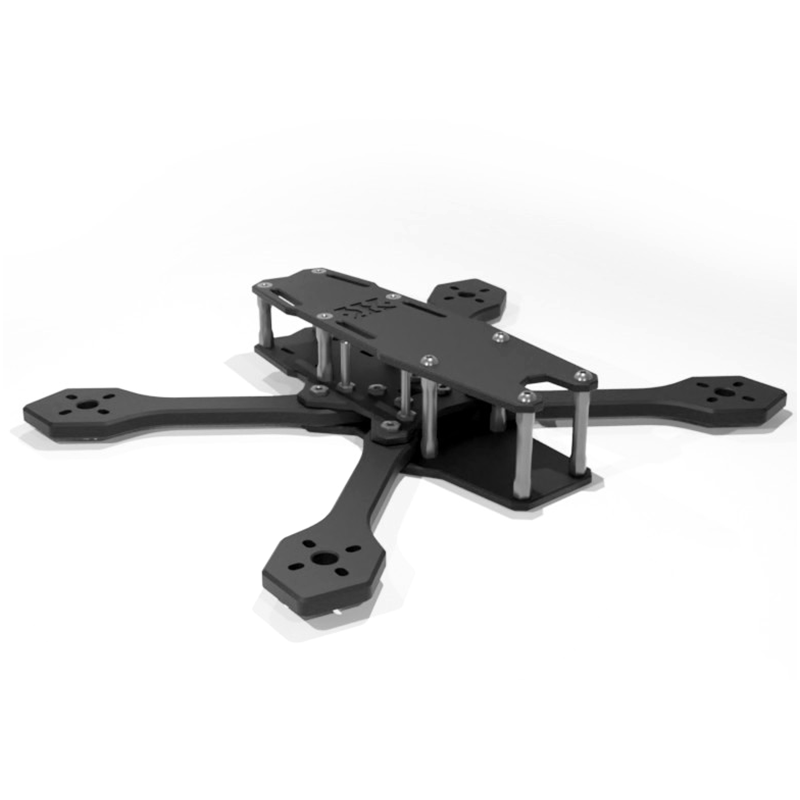

KAYOUDUR 5" Frame Kit By Kayou Frames
Related accessories
T-Motor F40 PRO IV 2306 - 1950KV
Hobbywing - XRotor Micro 65A G2 4in1 AM32
Hobbywing - XRotor F7 Convertible Flight Controller
Hardware Set For KAYOUDUR By Kayou Frames
Technical characteristics

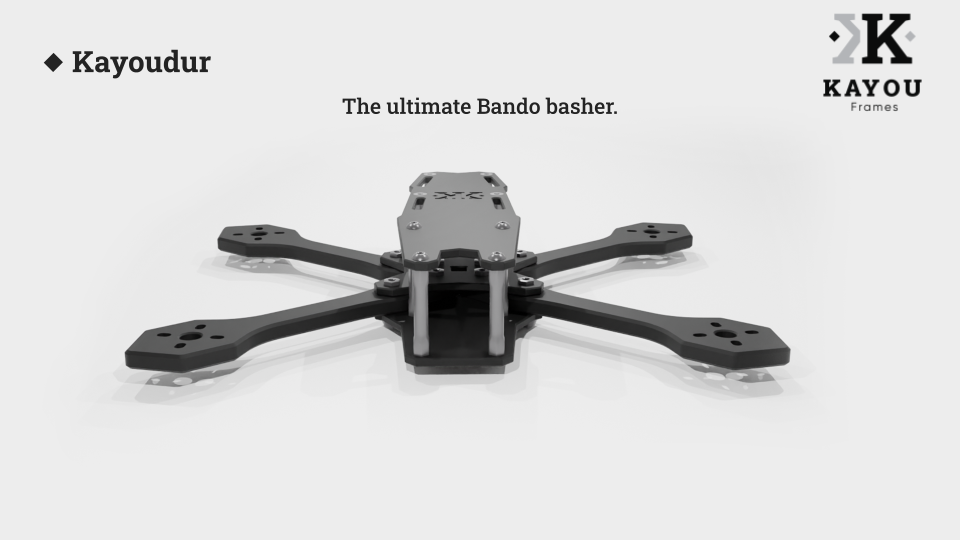

The KAYOUDUR is an extra durable 5" Frame focused on the essentials : Freestyle and Bando bashing.
This carbon brick from Kayou Frames has been designed to withstand violent and repetitive crashes against concrete.
Important points :

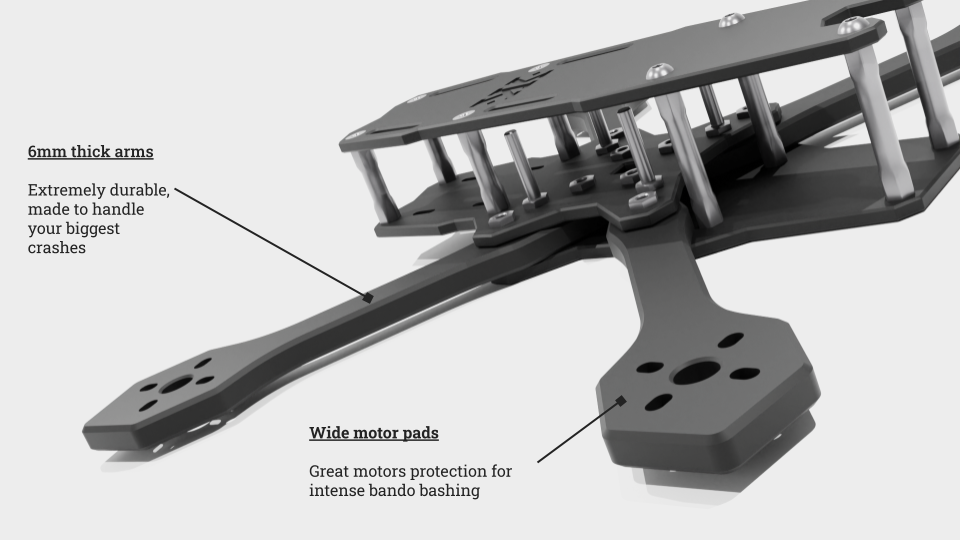

- Arms in 6*12mm,

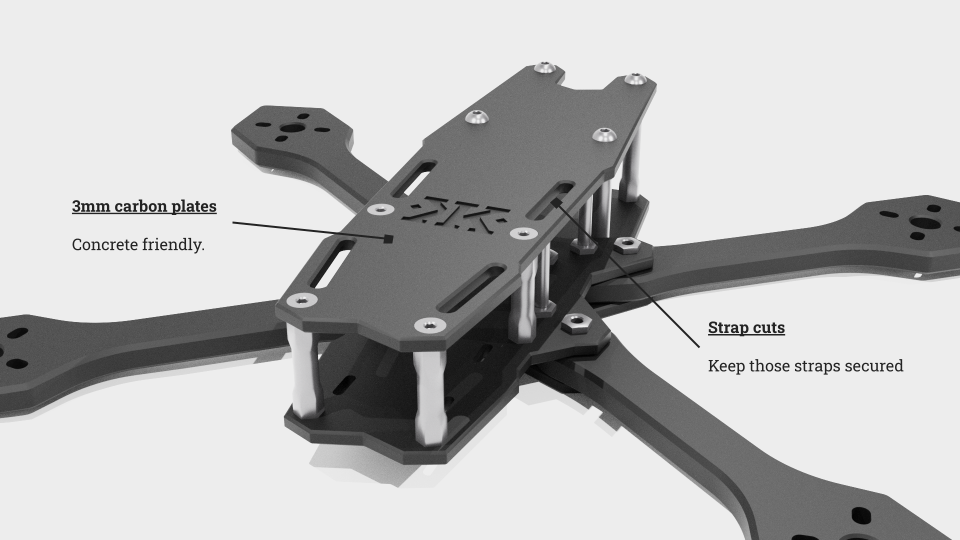

- Top and bottom plates full in 3mm, no unnecessary cuts,
- Quickly interchangeable arms (Independent of electronics, all identical),
- Wide motor mounts, excellent protection of the motor bells,
- Cam FPV mount made out of TPU, reduced vibration and damage in the event of a frontal impact

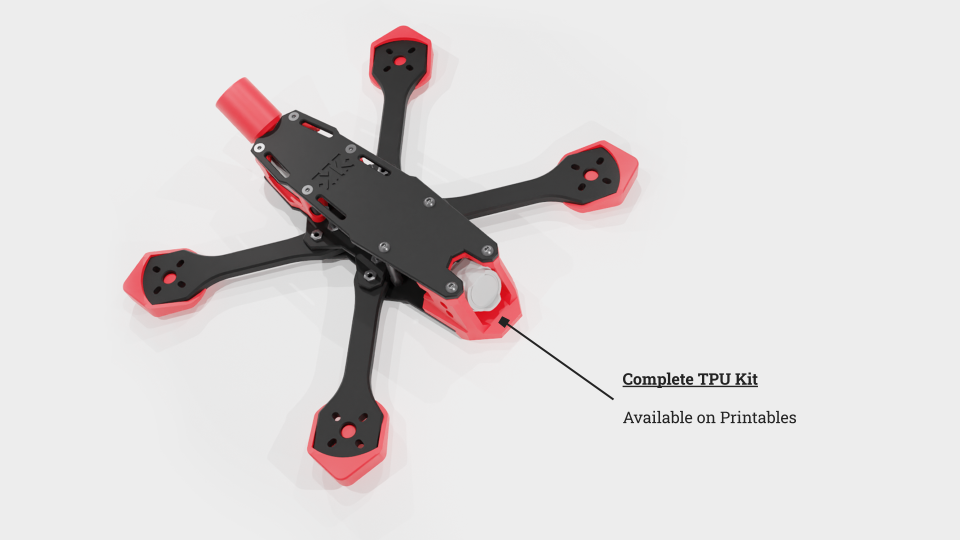

Important note : Frame Kit is sold WITHOUT 3D Printed TPU Parts required to build the Quad. You can get them here on DFR on download the files from Printables (check links below)
Specifications
- Carbon T700 3K Toray chamfered

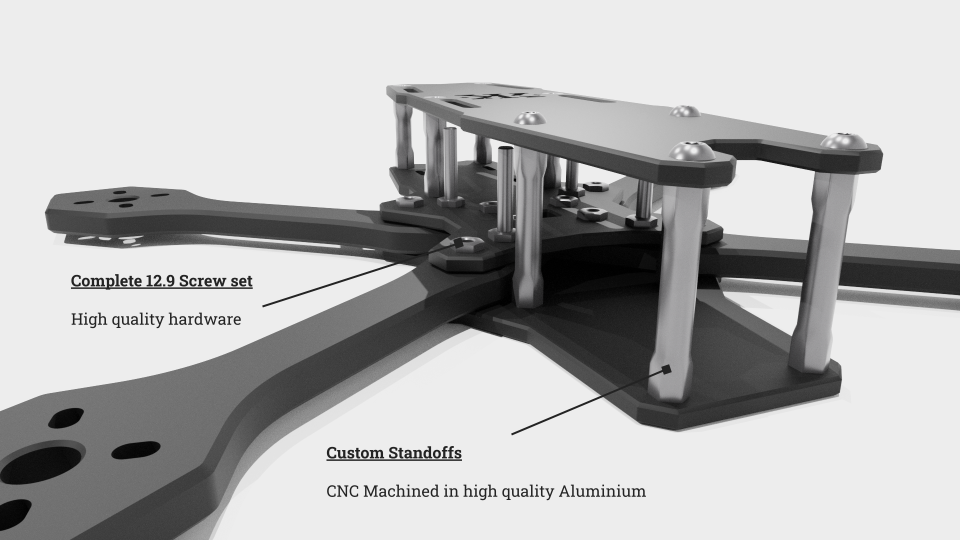

- Hexa screws M3 Steel 12.9
- High quality custom aluminum spacers
- Weight : 159g
- Top Plate : 3mm
- Middle Plate : 3mm
- Bottom Plate : 3mm
- Arm : 6mm
- Front stack in 30x30
- Rear stack in 20x20 (Vista, O3 & Walksnail compatible)
Included
- 1x Hardware Kit
- 1x Standoff Kit
- 4x Arms
- 1x Top Plate
- 1x Rear Plate
- 1x Front Plate
- 2x Kayou Lipo Straps (16x210mm)
Links
Recomended setup (not included)
- 2306/2207 1700-1950kv Motors
- 6s 1100-1300mAh Lipo
Customer reviews
meilleur frame de tout les temps
so far so good, i like it its compact, so it was a bit fiddly to fit the electronics so have that in mind
Très bien, conforme à mes attentes, je recommande !
J'enlève juste une étoile juste parce qu'il manque un lipo-pad adapté dans le kit, et que certaines vis pour les entretoises avant ne font que 8mm (un peu juste) et les autres 12 mm (TB). Sinon, RAS
KayouChad
