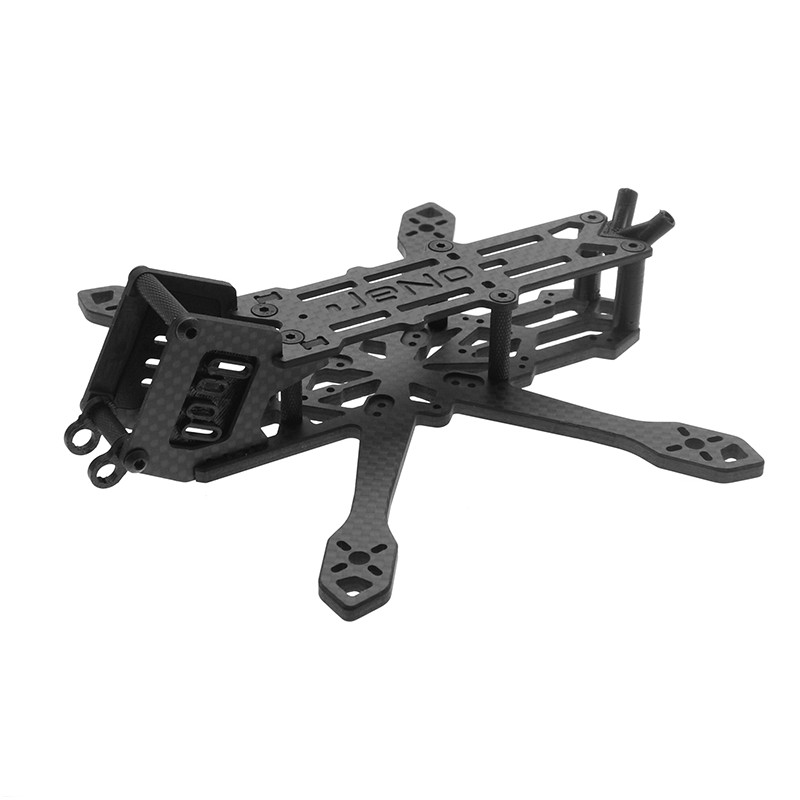

JeNo 3" Frame Kit V1.2.1 By We Are FPV
Related accessories
Technical characteristics
The success of the JeNo 5.1" pushed We are FPV to develop its little brother, the JeNo 3", which is equally at home in freestyle as well as for cinematic shooting.
Strong and rigid, this Wide-X geometry frame is perfect for integrating a DJI O4 Pro or DJI O3 air unit and enjoying HD video with a 100% unobstructed FOV.
Also designed for Vista, Walksnail, HDZero and analog VTXs, this JeNo unibody has its arms linked to the plate, which gives it exceptional solidity and flight behavior worthy of a 5".
Assembly is simple and the “absence” of arms allows you to slide a 20x20 stack taking advantage of the 20mm height of the bus.
Just like its big brother, the JeNo 3" has a front cage inclined at 25°, notches designed to install any type of ND filter and a field of view without any propeller visible either in the FPV return or in the HD recording .
This Frame is designed by Nochamo and Jéjé FPV
Specifications
- Geometry: Wide / Squished X
- Propeller size : 3"
- Weight:
- Arms: 4 mm in unibody, 3 mm in separate arms
- Bus height: 20 mm
- Stack height: 20 mm in unibody
- Bottom plate: 4 mm in unibody, 2 mm in separate arms
- Middle plate: 2 mm in separate arms
- Top plate: 2 mm
- Camera plates: 2.5 mm
- Motor center distance: 9 to 12 mm
- Camera: 20mm (DJI), Micro, Nano. Clear FOV. Adjustable.
- Central stack: AIO 25.5 mm x 25.5 mm (M2) and stack 20 mm x 20 mm (M2)
- Rear stack: 20 mm x 20 mm and 25.5 x 25.5 mm (M2)
- VTX Supported: Analogue, DJI Vista, DJI Air Unit O4 Pro, DJI Air Unit O3, WalkSnail, HDZero…
- Strap passage: Yes
- Weight: ~59.8g (carbon and hardware)
- Weight: ~71.2g (carbon, hardware, TPU, Lipo pad and strap)
Included
- 1x JeNo Frame 3"
- 1x Lipo pad
- 2x Strap DFR 180x15mm
- 1x TPU O4 Pro antenna mount
- 1x TPU O4 Pro camera mount
- 1x TPU Immortal T antenna mount
- 8x M3*20mm textured Spacer
- 6x M3*8mm countersunk head screw
- 10x M3*8mm button Head screw
- 16x M2*6mm button Head screw
- 4x M2*20mm button head screw
- 4x M2 nylon nut
Links
Customer reviews
J aime beaucoups ce 3 pouces, belle découpe
je l'ai pas encore fini mais joli produit . j'ai hate de volé
Super frame
Super frame mais attention au poids du build, j'ai cassé le mien au niveau des trous de vis sur un bras avant, le carbone est un peu fin a ces endroits
Petite frame génial pour du freestyle sur les espaces étroits comme sur les grands espaces. Il vaut un 5 pouces. Le O3 est un plus sur cette frame qui permet de ne pas alourdir le quad avec une go-pro. Je la recommande d'autant que cette frame est open source, de nombreux TPU trouvables sur la fiche du jeno3 et jeno5 et du spare disponible chez DFR comme à la découpe
Ravi de cette frame n'hésitez pas à aller voir les vidéos
