Manufacturer : NewBeeDrone / Référence : 01AB30
HummingBird Whoop RaceSpec V2 AIO ELRS 2.4G w/ 25-400mW VTX By NewBeeDrone
En stock
€64.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

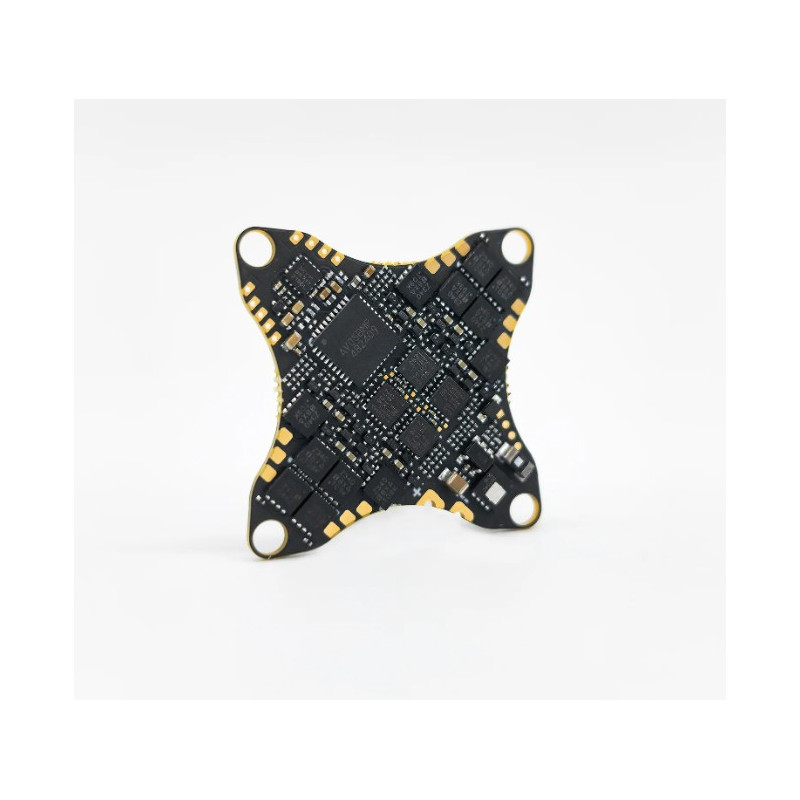

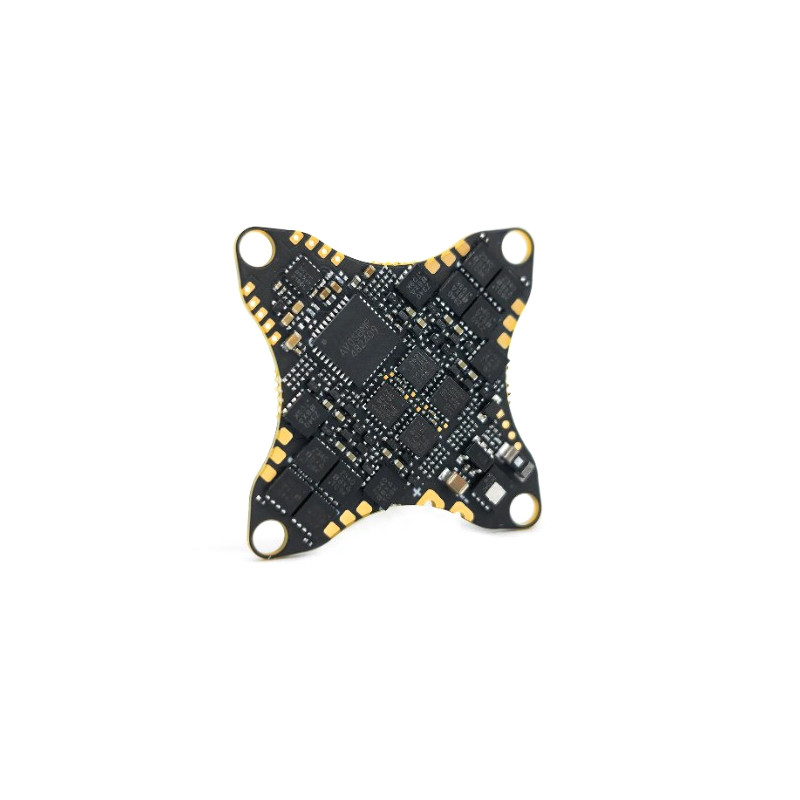

The Hummingbird Whoop RaceSpec V2 AIO Flight Controller is exclusively designed as a replacement part for the Hummingbird Whoop RaceSpec V2 BNF. It is not intended for DIY builds or use with third-party components.
It is mounted in 25.5*25.5mm and consists of an AT32F4 MCU, an 18A ESC, a 400mW analog VTX and an ELRS 2.4G receiver.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Specifications
- MCU: AT32F4
- GYRO：42688
- VTX: True 25mw and up to 400mw SmartMax 5.8g Analog VTX
- ESC: 18A pre-flashed with Bluejay 0.19.2 48kHz
- ESC Connector: direct solder Pad Recommend Whoop RaceWire
- OSD: NBD7456 graphical OSD compatible with Betaflight OSD Perfect Edition
- Receiver: Uart ExpressLRS 2.4G with SMT Antenna (ESP8285)
- Flight Controller Weight: 4.71g (Include antennas and battery connector)
- Flight Controller Size: Outer dimensions: 29x29x7.6mm
- Flight Controller Holes: 25.5x25.5mm
- Battery input: 1S Only（Recommend 300mAh 1S 3.8V）
- Uart1:free
- Uart2:free
- Power Plug: GNB A30 Connector compatible with BT2.0
Included
- 1x AIO HummingBird
- 1x A30 connector compatible with BT2.0
- 4x Grommet
- 1x Set of screws
