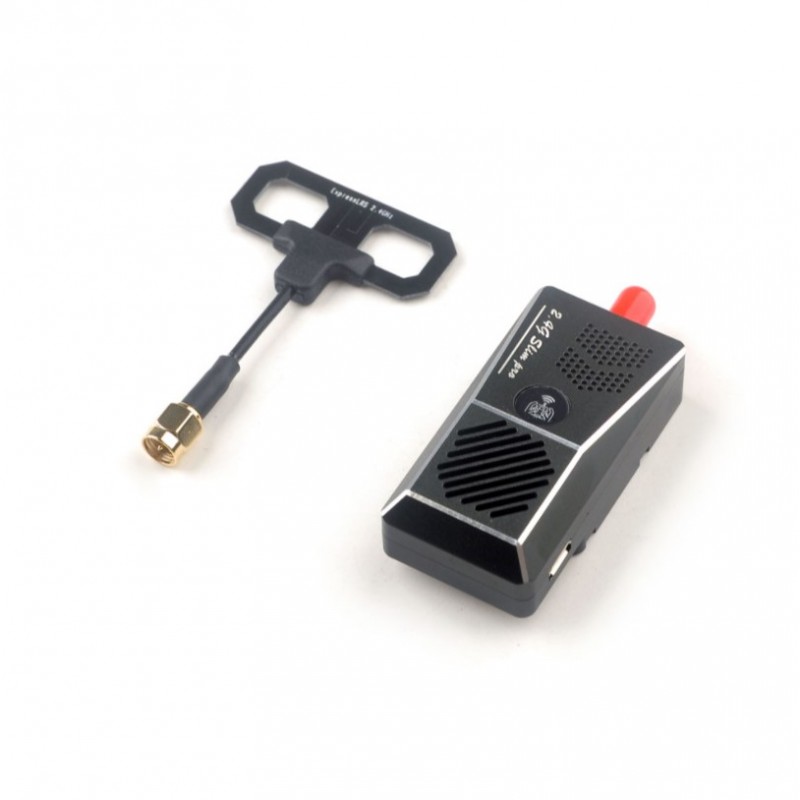

Happymodel - ExpressLRS ELRS Nano TX Module ES24TX Slim Pro

Out of stock
€49.92

View More Info
This product earns you 5 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
Happymodel - ExpressLRS ELRS Nano TX Module ES24TX Slim Pro - Drone-Fpv-Racer

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

This Nano TX is designed by Happymodel and based on open source-ExpressLRS which is a very popular low latency, high flash rate RF module for RC Airplane and FPV Racing

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

Size Nano
Protocol ELRS 2.4G

Specifications

  • Regulatory Domain: ISM2400
  • MCU: ESP32(main),ESP8285(as ESP backpack)
  • RF chip: SX1280IMLTRT
  • Frsky Lite 8pin socket
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: ≤30dBm
  • Power supply voltage: 5v~12v
  • Weight: 50gram (without antenna）
  • Dimension: 67.5mm*30mm*20.5mm (without antenna)
  • Antenna gain: 1.87dBi

Included

  • 1x EX24TX module
  • 1x 24TX80 antenna
  • 1x JR bay protective case
  • 1x Antenna adapter cable

Firmware
