Manufacturer : Happymodel / Référence : 2D20026

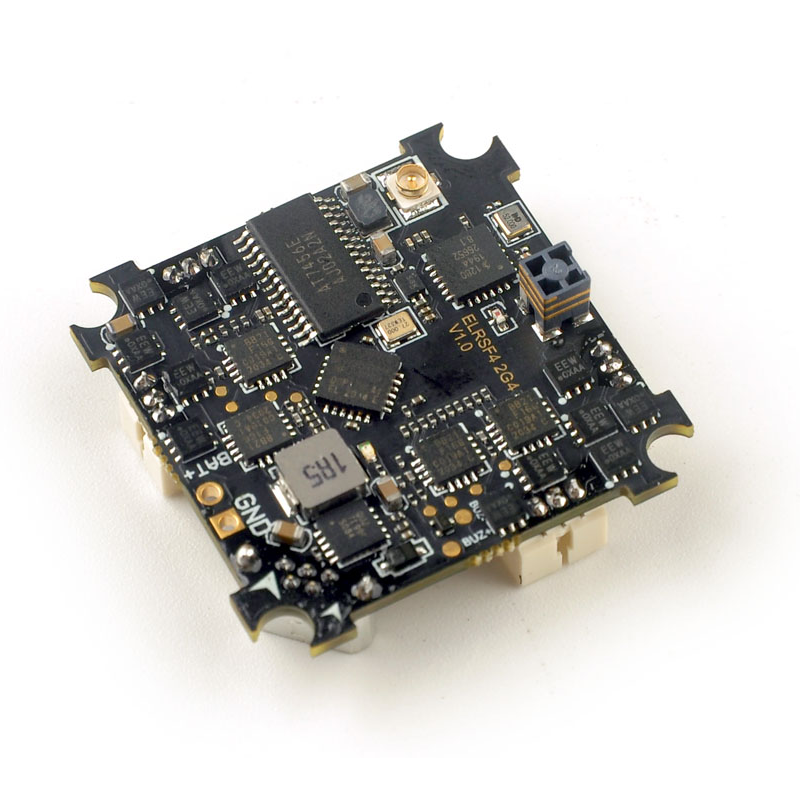

Happymodel - ELRS F4 2G4 AIO Flight Controller

4.7/5 (3 notifications)
Hors stock
€69.90
Out-of-Stock Notify me when the product is available again

7 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)
Related products

Technical characteristics

The ELRS F4 2G4 AIO flight controller is the world's first with a built-in 2.4 GHz Express LRS SPI receiver.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

ELRSF4 AIO FC

ELRSF4 AIO FC

ELRSF4 AIO FC

FC Specifications

  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Original whoop size compatible
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280

ESC Specifications

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_8.HEX
  • Default protocol: DSHOT600

ExpressLRS

  • Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHzAntenna : SMD antenna
  • Telemetry output Power: <12dbmreceiver protocol:="" spi="" expresslrscould="" bind="" with="" happymodel="" es24tx="" lite="" slim="" and="" diy="" 2="" 4ghz="" elrs="" tx="" module="" need="" to="" flash="" the="" same="" version="" firmware="" li="">

VTX

  • Output power: 25mw~200mw switchable
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready

Included

  • 1x ELRS F4 2G4 AIO Flight Controller
Voir plus

Customer reviews

4.7/5 (3 notifications)
Par le 19/11/2022

This was a replacement fc, works okay now

Par le 18/08/2022

my first board was faulty, but if it works it's very good

Par le 17/01/2022

Solution efficace pour une porté incroyable comparé aux récepteurs SPI FRsky. Bien faire attention de mettre à jour avec la même version de ELRS que le module (1.x.x non compatible avec 2.x.x mais 1.x.y compatible avec 1.z.w)
