H743 MPU6000 Flight Controller By Foxeer

Name: H743 MPU6000 Flight Controller By Foxeer
Brand: Foxeer
SKU: MR1710
Price: 104.08 EUR
Availability: OutOfStock

Out of stock

€104.08

View More Info

Quantity

This product earns you 11 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

I agree to receive an email notification when the item is back in stock.

H743 MPU6000 Flight Controller By Foxeer - Drone-FPV-Racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

In stock

Bastille Race Flight Controller By Lunpid

Processor : G4
Mount Size : 20x20mm
Gyro : ICM42688-P
Barometer : Without Baro

€33.25

In stock

Bastille Freestyle Flight Controller By Lunpid

Processor : G4
Mount Size : 30.5x30.5mm
Gyro : ICM42688-P
Barometer : Without Baro

€33.25

In stock

Matek Flight Controller H743-SLIM V4

Processor : H7
Mount Size : 30.5x30.5mm
Gyro : ICM42688-P
Barometer : With Baro

€79.92

In stock

F722 V4 ICM42688 Mini Flight Controller By Foxeer

Processor : F7
Mount Size : 20x20mm
Gyro : ICM42688-P
Barometer : With Baro

€44.08

In stock

F722 V4 ICM42688 Flight Controller By Foxeer

Processor : F7
Mount Size : 30.5x30.5mm
Gyro : ICM42688-P
Barometer : With Baro

€44.08

Detailed Description

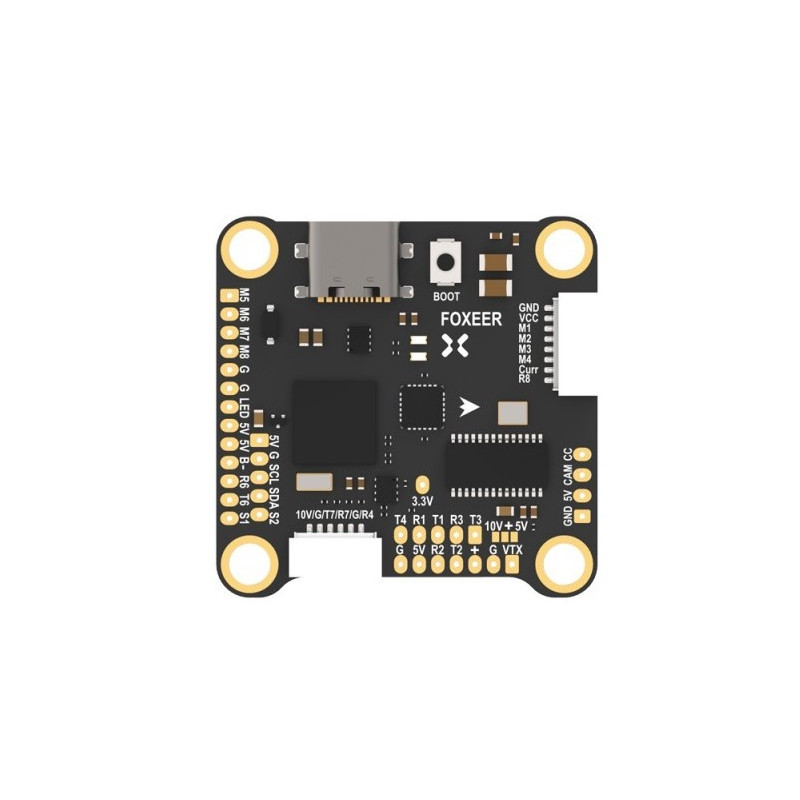

The Foxeer H743 flight controller is equipped with a MPU6000 gyro, a DPS310 barometer and a 5V/10V dual BEC.

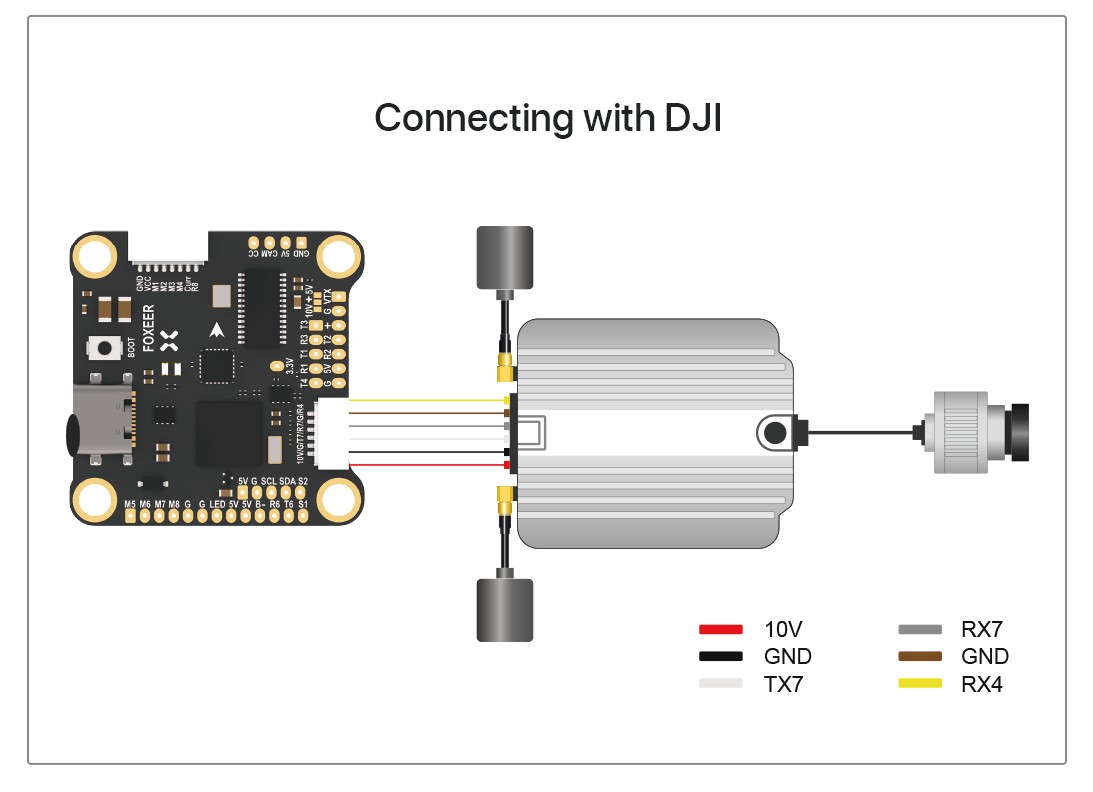

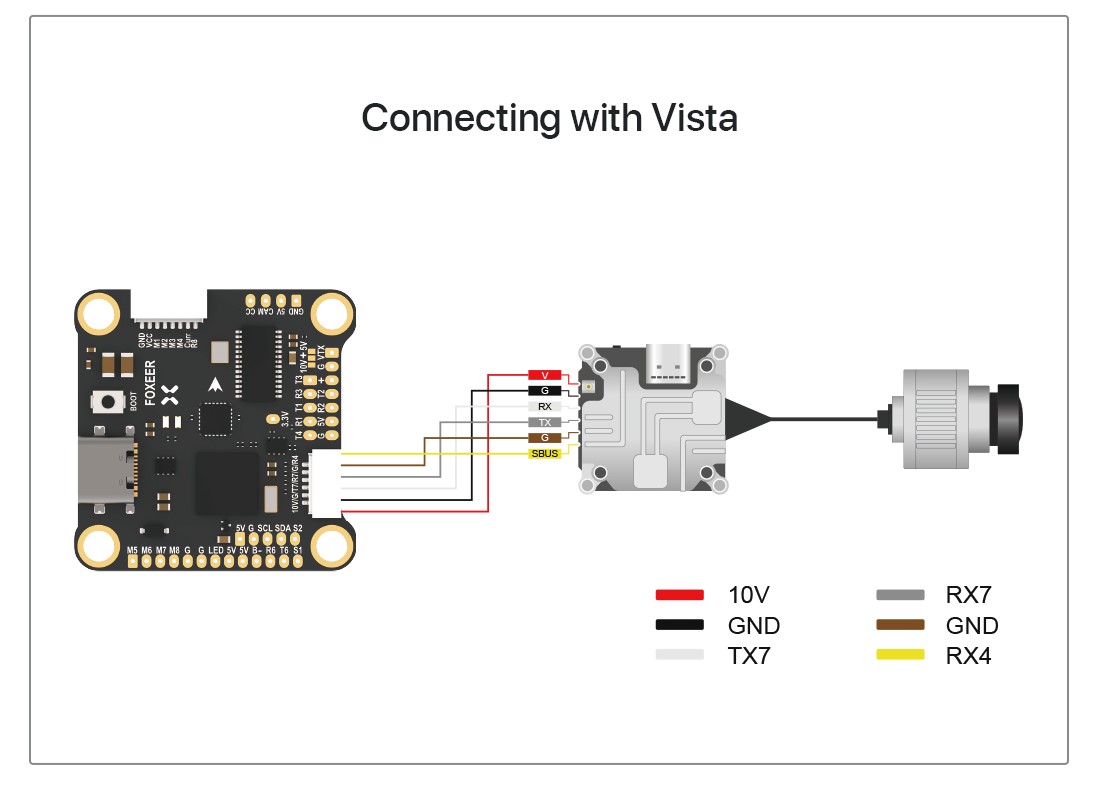

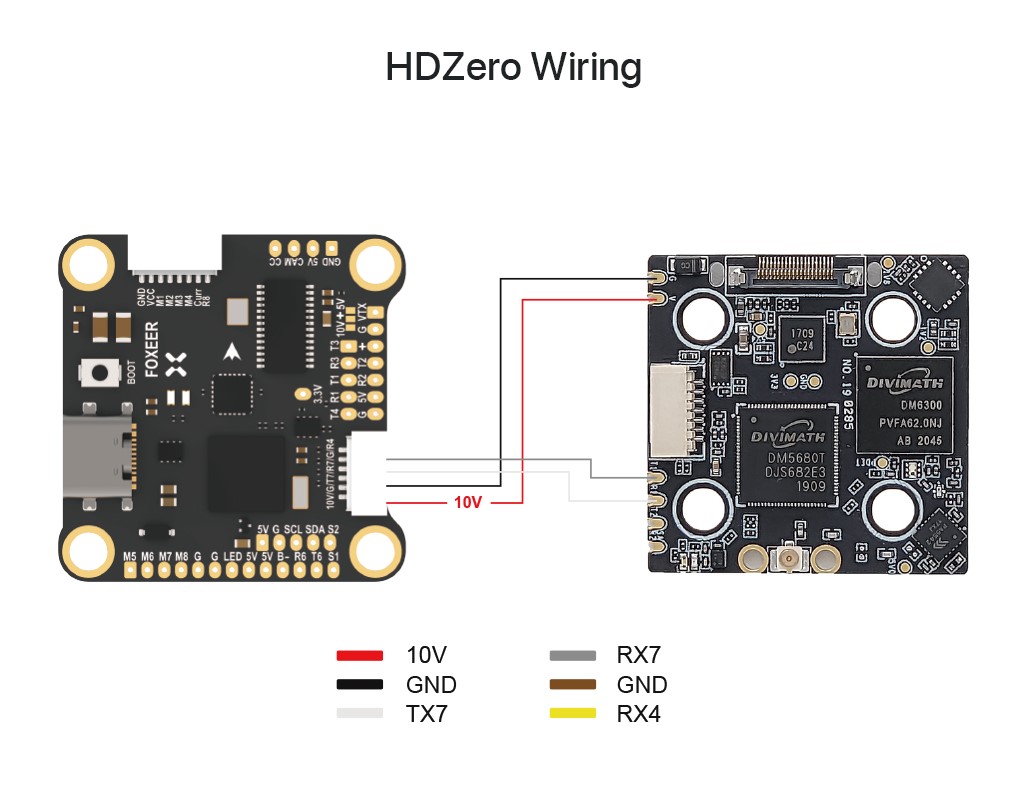

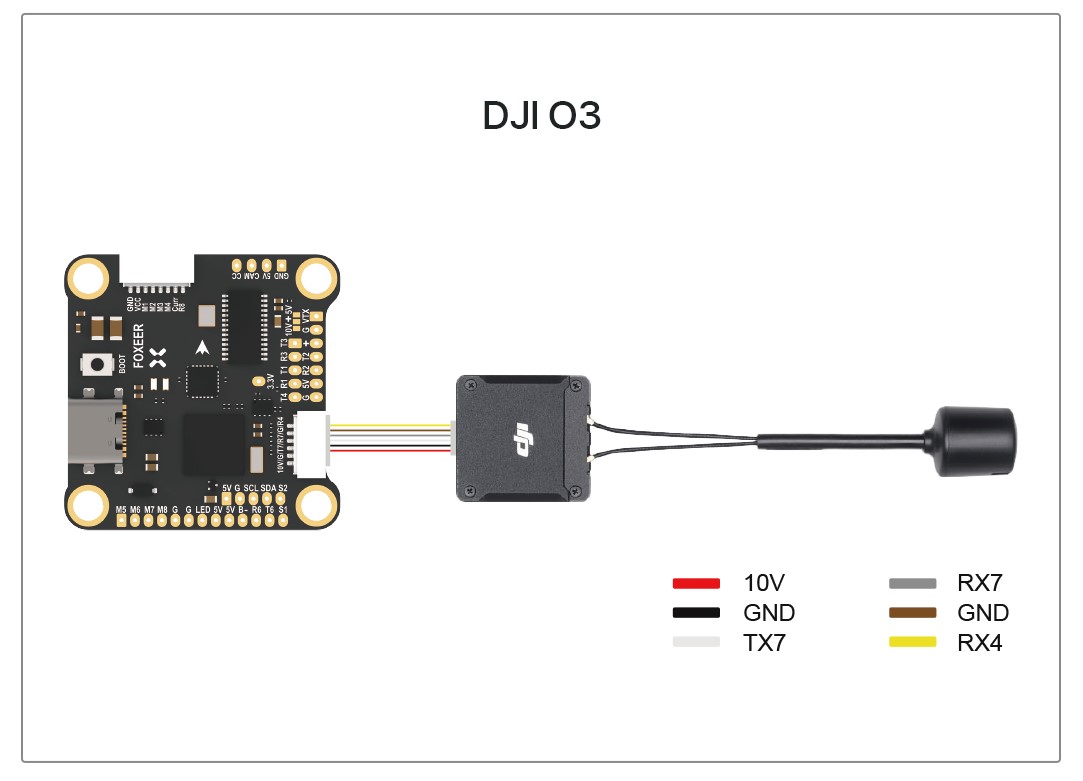

Compatible O3, DJI FPV, HDZero and Vista, this FC in 30.5*30.5mm can support up to X8.

Specifications

Video HDZero

Video Analog

Video Walksnail

Video DJI O3

Video DJI FPV

Size 30.5x30.5mm

Processor H7

Gyro MPU6000

Barometer With Baro

Specifications

CPU : FOXEERH743
Gyro : MPU6000
Barometer : DPS310
Power Supply : 4~8S Lipo
BEC Output : 3.3V/0.5A;DC5V/2A;DC10V/2A
OSD : BF OSD
Black Box : 16M Flash Memory
UART : 6 Sets+Rx8
ESC Telemetry : RX8
Buzzer : YES
Connector : DJI/HDZero
Smart Audio : YES
LED : 1 Set 2812 LED
USB : Type-C
Servo : S1,S2
X8 : Supported
Firmware : BetaFlight: FOXEERH743
Size : 37X37mm
Mounting Hole : 30.5X30.5mm,Φ4mm
Weight(g) : 7.8g
Working Temperature : -20℃ ~ +55℃
Working Humidity : 20～95%
Storage Temperature : -20℃ ~ +70℃

Included

1x FC
4x Rubbers Columns
1x Cable
