Technical characteristics

This Skystars H743 HD flight controller is equipped with a BMP280 barometer, an AT7456E OSD and a 16M blackbox.

Two versions are available, the first with a single BMI270 gyro, the second with two.

Specifications

  • MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
  • Gyro: BMI270 Single or DUAL (optional)
  • Baro: BMP280
  • OSD: AT7456E
  • Blackbox: 16M

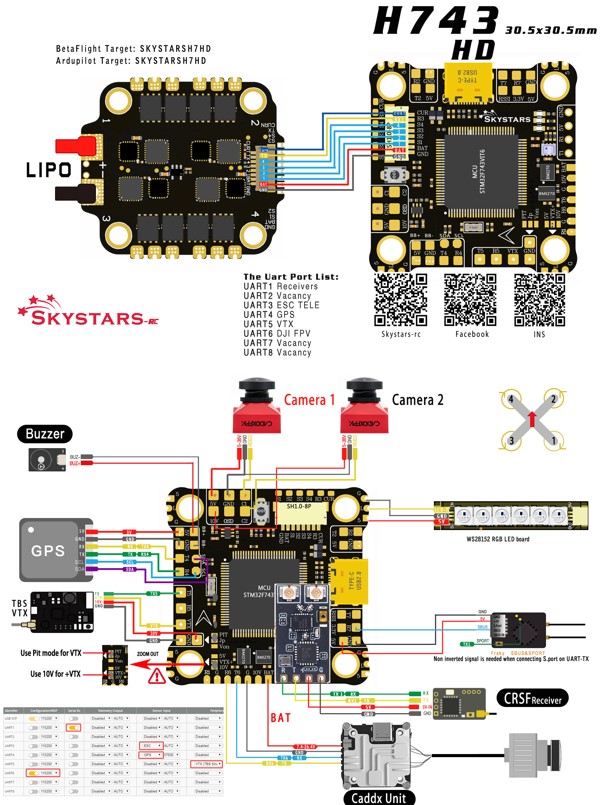

  • 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 8x PWM outputs
  • 1x I2C
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • USB Type-C(USB2.0)
  • 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
  • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
  • Dual Camera Inputs switch
  • VTX 10V/Vbat filtered power ON/OFF switch

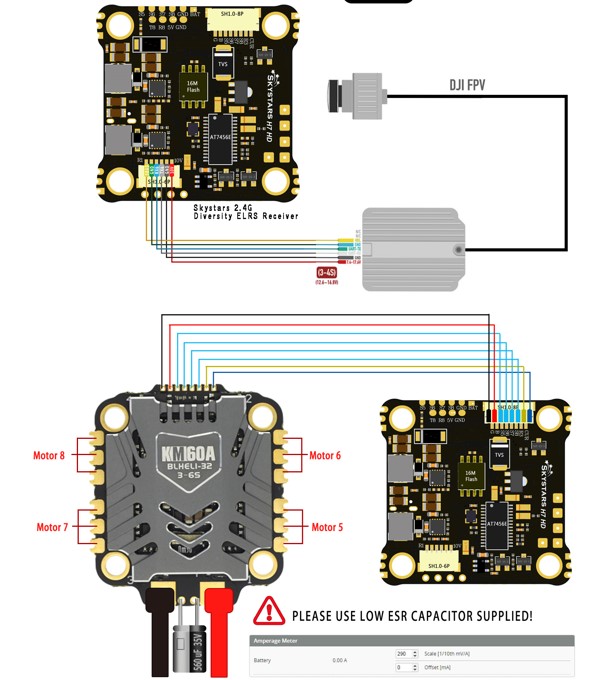

  • DJI FPV OSD is supported by any spare UART
  • Vbat Input: 7~25V (2~6S LiPo)
  • BEC: 5V 2A cont. (Max.3A)
  • LDO 3.3V: Max.250mA
  • Firmware : SKYSTARSH7HD
  • Mounting: 30.5 x 30.5mm, ¦µ4mm with Grommets ¦µ3mm
  • Dimensions: 39.5 x 39.5 x 7.8 mm
  • Weight: 10.1g

Included

  • 1x H743 HD FC
  • 4x Grommet
  • 2x JST-SH1.0 8pin 4cm cable
  • 1x JST-SH1.0 6pin 10cm Cable
