Manufacturer : Skystars / Référence : SKY-150739

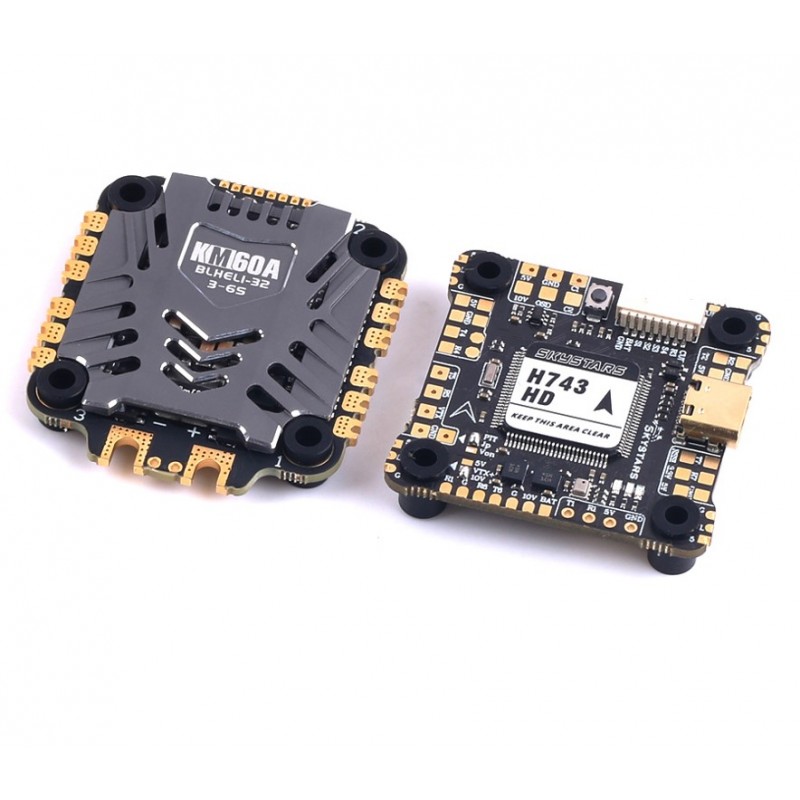

H743 HD (Dual gyro) + KM60 Stack By Skystars
En stock
€138.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This Skystars stack brings together the FC H743 HD and the 4in1 ESC KM60A BLHeli_32.
H743 HD FC
- MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- Gyro: BMI270 dual
- Baro: BMP280
- OSD: AT7456E
- Blackbox: 16M
- 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 8x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
- Dual Camera Inputs switch
- VTX 10V/Vbat filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
- Vbat Input: 7~25V (2~6S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- LDO 3.3V: Max.250mA
- Firmware : SKYSTARSH7HD
- Mounting: 30.5 x 30.5mm, ¦µ4mm with Grommets ¦µ3mm
- Dimensions: 39.5 x 39.5 x 7.8 mm
- Weight: 10.1g
KM60 ESC
- Input Voltage: 3-6S LiPo
- Continuous Current: 60A
- Burst: 80A≥10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting: 30.5mm/M3
- BEC: No
- Size: 41*46*7.6mm
- Weight: 18g
Included
- 1x H743 HD FC
- 1x KM60 ESC
- 1x 560uF 35V capacitor
- 1x XT60 connector
- 2x JST-SH1.0 8pin 4cm cable
- 1x JST-SH1.0 6pin 10cm Cable
