The first FPV drone from Caddx is here!

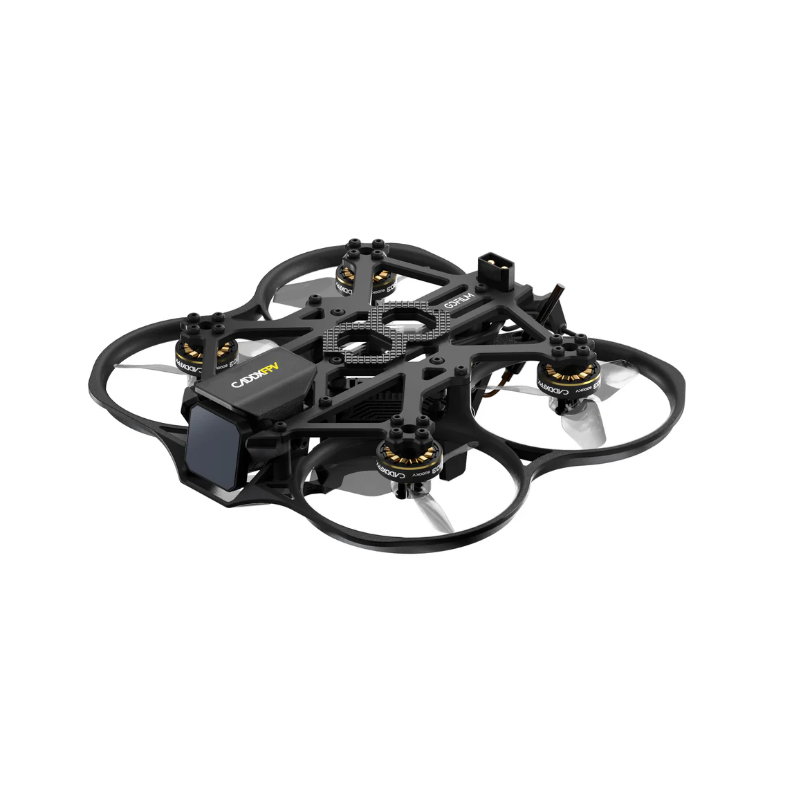

The Gofilm 20 is a 2" Cinewhoop drone mainly meeting the needs of most pilots, but also the first 4K starlight drone on the market.

Ideal indoors or outdoors, the Gofilm 20 is equipped with Walksnail's Avatar Moonlight kit offering video resolution up to 4K at 60fps with a 160° field of view.

Equipped with a propulsion system and EIS electronic image stabilization technology, this Cinewhoop consists of a Caddx F405 20A AIO, 1303 6000KV motors, T2x2x3 propellers and an ExpressLRS 2.4G receiver.

The 20x20mm and 25.5x25.5mm mounting holes allow you, if you wish, to integrate the analog or digital VTX of your choice.

A 4S 650mAh 150C battery (not included) will be perfect for the Gofilm 20.

Gofilm 20

  • Model : Gofilm 20
  • FC : CADDXF4_AIO_ELRS
  • VTX : Moonlight Kit
  • Wheelbase : 94mm
  • Motor : 1303 6000KV
  • Propeller : HQprop T2×2×3
  • Weight : 115±5g
  • Size : 133×123×39mm
  • Flight time : 4S 650mAh & about 5.5 minutes
  • Receiver : ELRS 2.4G
  • Battery interface : XT30

FC

  • MCU : STM32F405RGT6
  • GYRO and IMU : ICM42688
  • Barometer : BMP280
  • ExpressLRS receiver ELRS V3.0 UART
  • ESC 20A 4-IN-1
  • Blackbox : 8MBp
  • Support Power : 2~4S Lipo/Lihv
  • Mounting hole Distance : 25.5×25.5mm
  • Firmware target : CADDXF4_AIO_ELRS

VTX

  • Model : Moonlight Kit
  • Firmware name : AvatarMoonlight_Sky_X.X.X
  • Communication Frequency : 5.725-5.850 GHz
  • Transmitter Power (EIRP) : FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
  • I/O Interface : JST1.0*4(power cable); JST0.8*6(USB)；microSD Card Slot; IPEX-1
  • Sensor  :Starlight sensor
  • FOV : Max 160°
  • Aperture : F2.1
  • Shutter : Rolling shutter
  • ISO : 100-25600
  • Recording resolution : 4K@30/60fps; 2.7K@30/60fps;
  • 1080p@100/60fps; 720p@60fps
  • Max Mbps : 150Mbps
  • Video format : MP4 (H.264)
  • 3D DNR : Support
  • Gyro flow : Support
  • Built-in EIS : Support
  • Wide Power Input : 7.4V-25.2V
  • Power consumption : [email protected], [email protected]
  • Memory card type : U3 microSD, Max 256G
  • Camera size : 19.6mm×19mm×24mm
  • VTX size : 15.3mm×34.5mm×34.5mm
  • VTX Installation hole : 20×20mm/25×25mm (M2)
  • Weight : 38.5g (Antenna not included)
  • OSD : Canvas mode
  • Latency : Average delay 22ms
  • Antenna : 2 (IPEX)

Included

  • 1x BNF Gofilm 20
  • 4x M2*6mm screw
  • 4x M2*8mm screw
  • 1x 1.5mm Allen wrench
  • 1x USB data cable
  • 1x 180mm strap
  • 1x Paddles
  • 1x Micro usb data cable
  • 1x Instruction manual
