Manufacturer : Skystars / Référence : SKY-150718 PRO

F722HD PRO 20x20 + KM45A Stack By Skystars

3.3/5 (3 notifications)
Hors stock
€112.90
Out-of-Stock Notify me when the product is available again

12 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)
Related products

Technical characteristics

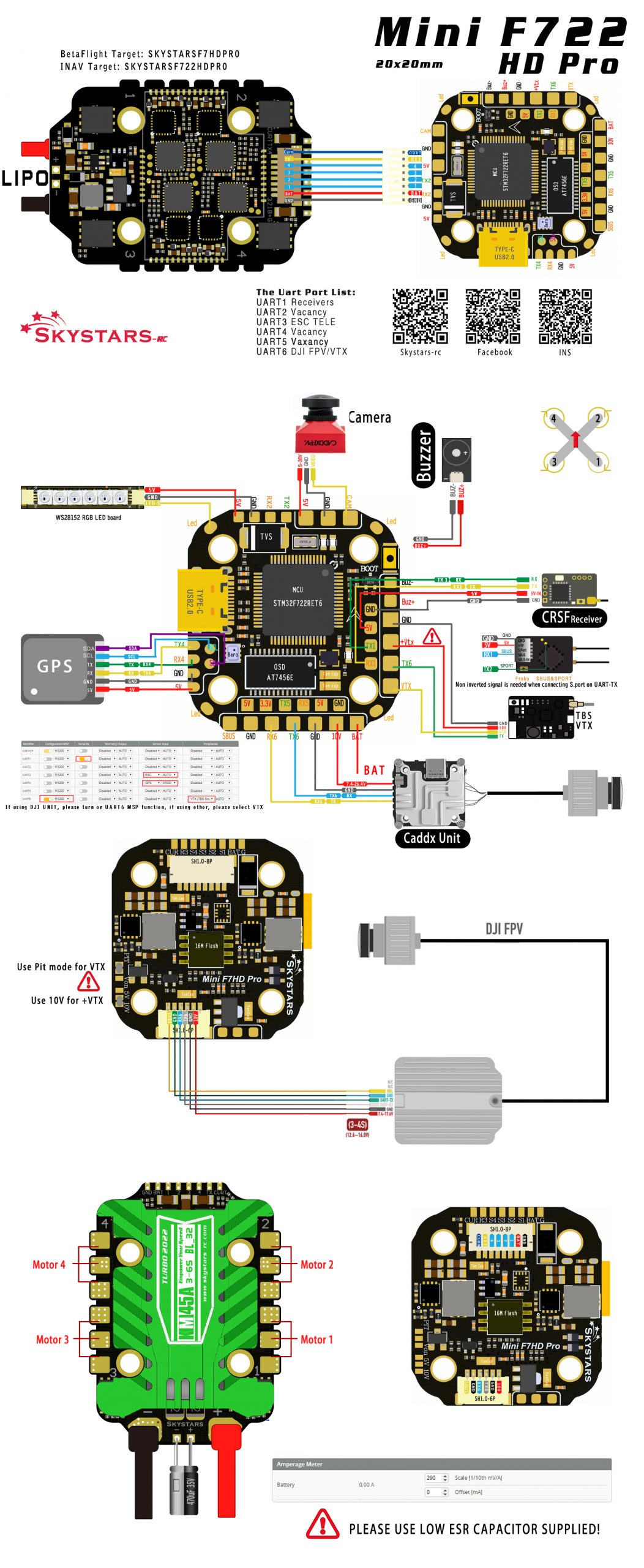

The SkyStars F722 HD PRO + KM45 stack includes an F722 HD 20x20 flight controller along with a KM45A 32Bit 3-6S 4in1 ESC to give your quad all the power it needs.

FC Specifications

  •  MCU:  STM32F722RGT6 216MHz
  • IMU: MPU6000 (SPI)
  • OSD: Betaflight OSD &  DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • Barometer: YES
  • Buzzer Pad: YES
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to center of holes
  • Weight: 4.8g

ESC Specifications

  • Input voltage: 3-6S LiPo
  • Con.Current: 45A
  • Peak Current: 55A≥ 10S
  • Firmware: BLHeli_32
  • Support : Dshot 600/1200
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 35*47*6.5mm
  • Weight: 16.5g

Included

  • 1x SkyStars F722HD PRO 20x20 Flight Controller
  • 1x SkyStars KM45A 32Bit 3-6S 20x20 ESC
Voir plus

Customer reviews

3.3/5 (3 notifications)
Par le 20/02/2023

Le produit est arrivé défectueux. J'attends toujours une réponse de l'assistance qui tarde à arriver pour obtenir un remboursement

Par le 08/12/2022

Bon esc fc bien complète ! Un peu lourd peut être !!!

Par le 26/07/2022

The ESC can do 128k and is already flashed to blheli 32.9, which was nice, the gyro is a BMI270, everything seems high quality.
