Manufacturer : Foxeer / Référence : MR1761
F722 V4 MPU6000 Flight Controller By Foxeer
Hors stock
€76.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This Foxeer F722 flight controller is equipped with a MPU6000 gyro, a DPS310 barometer and a 5V/10V dual BEC.
Compatible O3, DJI FPV, HDZero and Vista, this FC in 30.5*30.5mm can support up to X8.

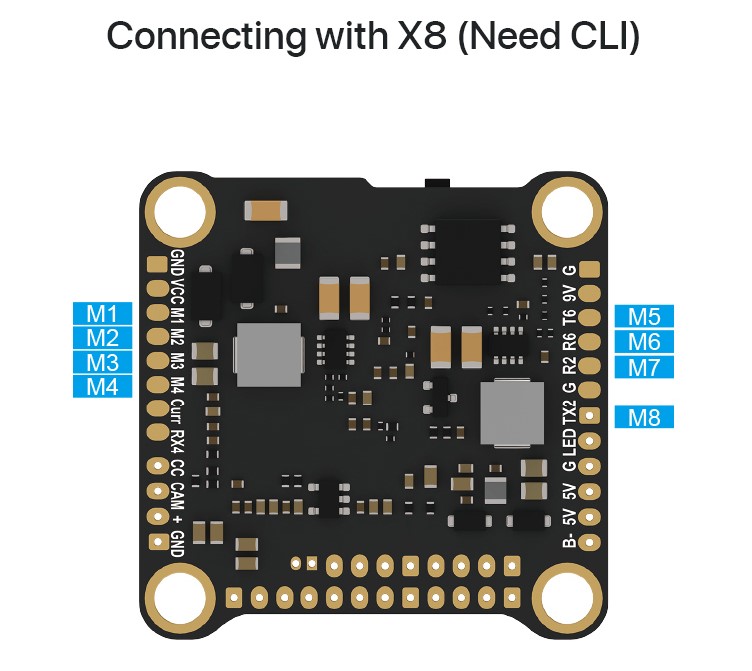

Commands to enter in the Betaflight CLI for operation in X8:
resource SERIAL_TX 6 none
resource SERIAL_RX 6 none
resource SERIAL_RX 2 none
resource SERIAL_TX 2 none
save
resource MOTOR 5 C06
resource MOTOR 6 C07
resource MOTOR 7 A03
resource MOTOR 8 A02
save
Specifications
- CPU : STM32F722RET6
- Gyro : MPU6000
- Barometer : DPS310
- Power Supply : 4~8S Lipo
- BEC Output : DC5V/2A; DC10V/2A
- OSD : BF OSD
- Black Box : 16M Flash Memory
- UART : 5 Sets+Rx4
- ESC Telemetry : RX4
- Buzzer : YES
- Connector : DJI/HDzero
- Smart Audio : YES
- LED : 1 Set 2812 LED
- USB : Type-C
- X8 : Supported Need CLI
- Firmware : BetaFlight:FOXEERF722V4; Inav:FOXEERF722V4/FOXEERF722V4_X8
- Size : 37X37mm
- Mounting Hole : 30.5X30.5mm,Φ4mm
- Weight(g) : 7.7g
- Working Temperature : -20℃ ~ +55℃
- Working Humidity : 20～95%
- Storage Temperature : -20℃ ~ +70℃
Included
- 1x F722 V4 MPU6000 FC
- 4x Rubber
- 1x Cable
Commands to enter in the Betaflight CLI for operation in X8:
resource SERIAL_TX 6 none
resource SERIAL_RX 6 none
resource SERIAL_RX 2 none
resource SERIAL_TX 2 none
save
resource MOTOR 5 C06
resource MOTOR 6 C07
resource MOTOR 7 A03
resource MOTOR 8 A02
save
