Manufacturer : Speedy Bee / Référence : SB-F4V4-60-STACK
F405 V4 BLS 60A 30x30 Stack By SpeedyBee
Hors stock
€86.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

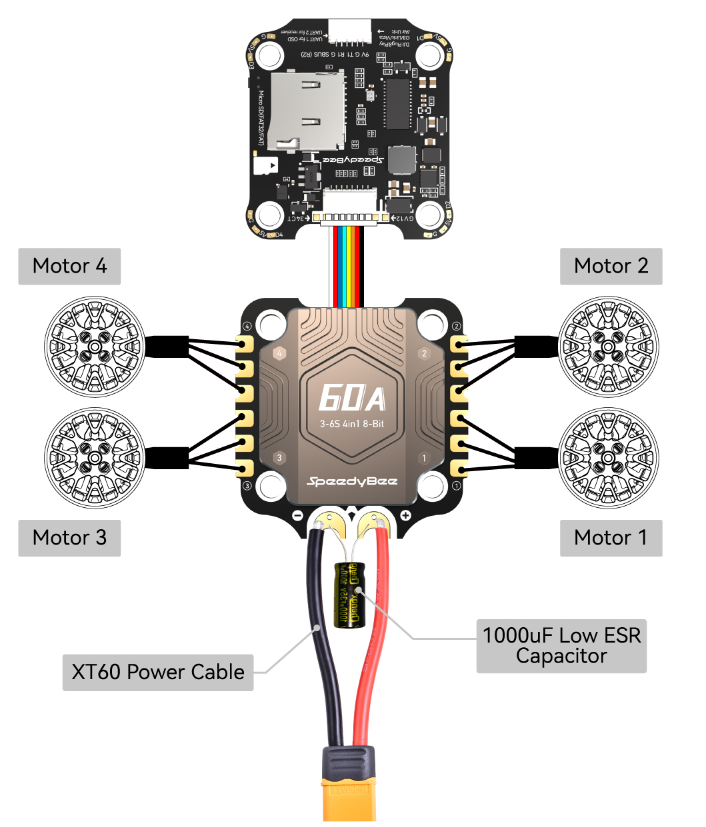

The fourth version of the SpeedyBee stack includes an FC F405 and a BLHeli_S 60A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a bult-in barometer as well as an ICM42688P gyro.
The SpeedyBee F405 V4 stack is both complete and inexpensive, all with good performance.
Always equipped with a Bluetooth controller allowing settings via the mobile application, the stack also has a TVS diode protecting the electronics.
FC
- MCU : STM32F405
- IMU(Gyro) : ICM42688P
- USB Port Type : Type-C
- Barometer : Built-in
- OSD Chip : AT7456E chip
- BLE Bluetooth : Supported.
- WIFI : Not supported
- Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit
- ESC Signal : M1 - M4 on bottom side and M5-M8 on front side.
- UART : 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
- ESC Telemetry : UART R5(UART5)
- I2C Supported.
- Traditional Betaflight LED Pad : Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
- Buzzer : BZ+ and BZ- pad used for 5V Buzzer
- Power Input : 3S - 6S Lipo
- RSSI Input : Supported.
- Smart Port / F.Port : Not supported
- Firmware Target Name : SPEEDYBEEF405V4
- Mounting : 30.5 x 30.5mm( 4mm hole diameter)
- Dimension : 41.6(L) x 39.4(W) x 7.8(H)mm
- Weight : 10.5g
ESC
- Firmware : BLHeli_S J-H-50
- Continuous Current : 60A * 4
- Burst Current : 80A(5seconds)
- TVS Protective diode : Yes
- External Capacitor : 1000uF Low ESR Capacitor(In the package)
- ESC Protocol : DSHOT300/600
- Power Input : 3-6S LiPo
- Power Output : VBAT
- Current Sensor : Support (Scale=386 Offset=0)
- ESC Telemetry : Not supported
- Mounting : 30.5 x 30.5mm( 4mm hole diameter)
- Dimension : 45.6(L) * 44(W) * 8mm(H)
- Weight : ~23.5g
Included
- 1x F405 V4 FC
- 1x BLS 60A 4in1 ESC
- 1x 35V 1000uF Capacitor
- 5x M3 nylon nut
- 5x M3 silicone o-ring
- 1x M3.8 silicone grommet (for FC)
- 1x M3*8.1 silicone grommet (for ESC)
- 1x SH1.0 25mm-length 8pin cable (for FC-ESC connection)
- 5x M3x30mm iner-hexagon screw
- 1x DJI 6pin cable (80mm)
- 1x XT60 power cable (100mm)
