F405 V4 30x30 SFlight Controller By SpeedyBee

Out of stock
€37.42

View More Info
This product earns you 4 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
F405 V4 30x30 SFlight Controller By SpeedyBee - Drone-fpv-racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

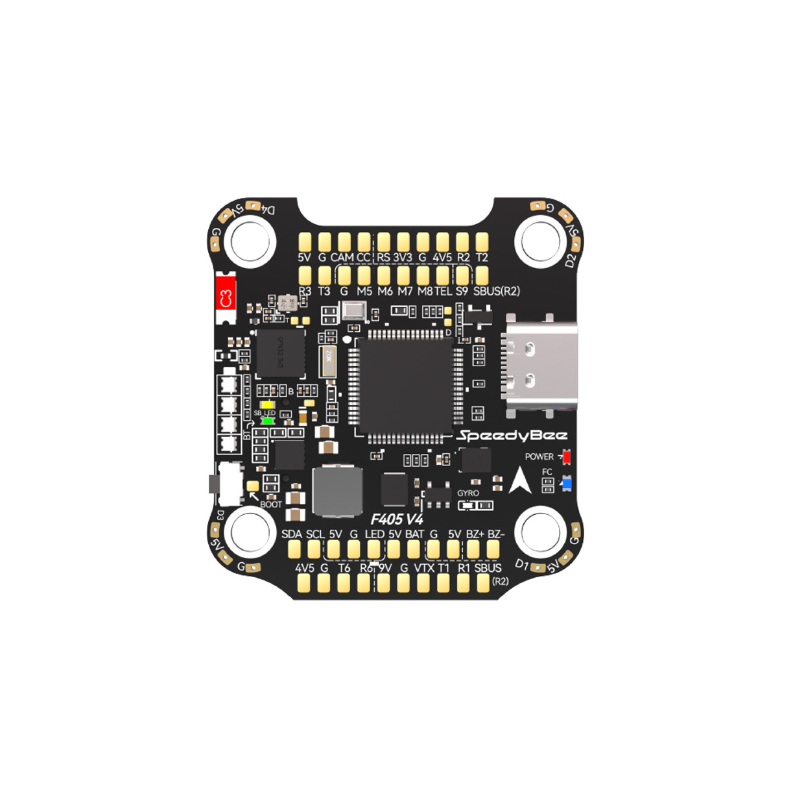

The SpeedyBee F405 V4 flight controller mounts in 30.5x30.5mm, configures via Bluetooth and is compatible with the DJI O3 / Runcam Link / Caddx Vista and DJi air unit VTX.

The FC is equipped with an ICM42688P gyro, a USB Type-C port, a barometer and an ATZ456E OSD.

Specifications

Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Video DJI FPV
Size 30.5x30.5mm
Processor F4
Gyro ICM42688-P
Barometer With Baro

Specifications

  • MCU : STM32F405
  • IMU(Gyro) : ICM42688P
  • USB Port Type : Type-C
  • Barometer : Built-in
  • OSD Chip : AT7456E chip
  • BLE Bluetooth : Supported.
  • WIFI : Not supported
  • Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit
  • ESC Signal : M1 - M4 on bottom side and M5-M8 on front side.
  • UART : 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
  • ESC Telemetry : UART R5(UART5)
  • I2C Supported.
  • Traditional Betaflight LED Pad : Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
  • Buzzer : BZ+ and BZ- pad used for 5V Buzzer
  • Power Input : 3S - 6S Lipo
  • RSSI Input : Supported.
  • Smart Port / F.Port : Not supported
  • Firmware Target Name : SPEEDYBEEF405V4
  • Mounting : 30.5 x 30.5mm( 4mm hole diameter)
  • Dimension : 41.6(L) x 39.4(W) x 7.8(H)mm
  • Weight : 10.5g

Included

  • 1x F405 V4 FC
  • 5x M3*8mm grommet
  • 1x Sh 1.0mm 30mm 8pin cable
  • 1x DJI 6pin cable
