Manufacturer : DJI / Référence : DJI-O3-MODULE

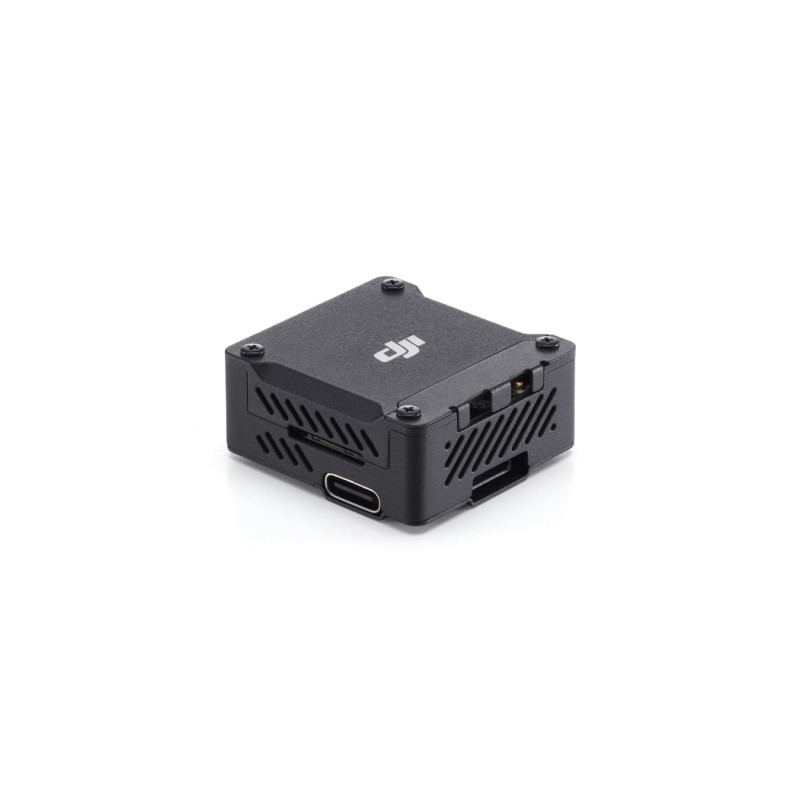

DJI O3 Air Unit Transmission Module
En stock
€179.00
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
DJI O3 Air Unit
Go the Distance!
Integrating the DJI O3+ video transmission, the DJI O3 Air Unit offers definition up to 1080p with a refresh rate of 100ips. It also supports H.265 video encoding format.
The DJI 03 Air Unit is compatible with DJI Goggles 2, DJI FPV V2 Goggles and DJI FPV V2 Remote Controller.
Flight controllers under Betaflight 4.3.0 minimum are compatible.
Bullet points
- Digital video transmission 30m/s 10km
- H.265 1080p@100fps video transmission
- 4k video @ 60 fps
- Super wide 155° FOV
- Automatic frequency switching
- Canvas View
Specifications
- Weight: 31 grams (with antenna)
- Dimensions: 32.5 x 30.5 x 14.5 mm
- Operating frequencies: 2.400 to 2.4835 GHz (Rx only) / 5.725-5.850 GHz (Rx and Tx)
- Transmitter power (EIRP): CE: < 14 dBm / SRRC: < 30 dBm / FCC: < 33 dBm
- transmission distance max. : CE: 2km / SRRC: 6km / FCC: 10km
- Connectivity: microSD port up to 256GB
- Compatible flight control systems: Supports flight controller firmwares under Betaflight
- Operating temperature range: -10 to 40°C (14 to 104°F)
- Input power: 7.4 to 26.4 V
- Channels: 40 MHz: 1 channel / 20 MHz: 3 channels / 10 MHz: 3 channels
- Channel details: Channel 1: 5768.5MHz / Channel 2: 5804.5MHz / Channel 3: 5839.5MHz
- Minimum latency (end-to-end):
- With DJI FPV goggles V2: 810p/120ips = < 28ms; 810p/60ips = < 40ms
- With DJI Goggles 2: 1080p/100ips = < 30ms; 1080p/60fps = < 40ms
Included
- 1x DJI O3 Air Unit Image Transmission Module
Note : Coaxial cable, 3in1 cable, antenna and camera not included
