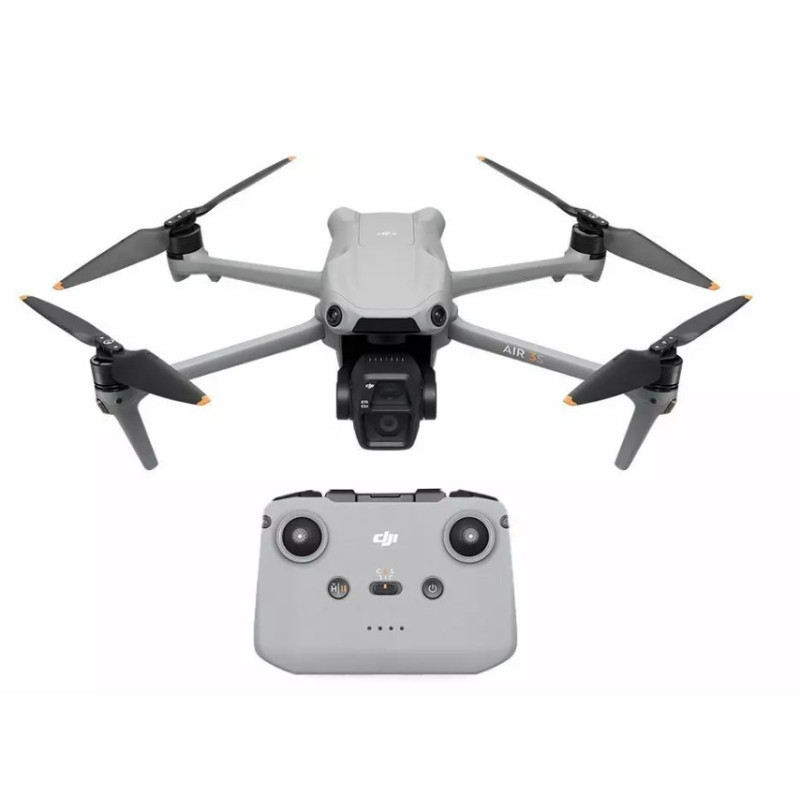

DJI Air 3S With DJI RC-N3 Remote Controller

DJI Air 3S

• Dimensions (folded without propellers): 214.19 x 100.63 x 89.17 mm
• Dimensions (unfolded without propellers): 266.11 x 325.47 x 106 mm
• Weight: 724g
• Operating frequency: From -10° to +40°C
• GNSS: GPS + Galileo + BeiDou
• Flight time: 45 minutes
• Hovering time: 41 minutes
• Hovering accuracy: Vertical: +/-0.1m (with optical positioning) & +/- 0.5m (with satellite positioning) / Horizontal: +/- 0.3m (with optical positioning) & +/-0.5m (with satellite positioning)
• Maximum speed: Horizontal speed: 21 m/s
• Maximum speed in descent: 10 m/s
• Maximum speed in climb: 10 m/s
• Maximum flight altitude: 6,000 m (a.s.l.)
• Maximum wind resistance: 12 m/s
• Flight distance: 32 km maximum
• Internal storage: 42 GB (expandable via microSD)
• Maximum tilt angle: 36°
• Class: C1 (EU)
• Omnidirectional binocular optical system, complemented by a forward-facing LiDAR and an infrared sensor at the base of the device.

Battery

• Type: Li-ion 4S
• Brand: DJI
• Voltage: 14.6V
• Capacity: 4,276mAh
• Energy: 62.5 Wh
• Weight: Approx. 247g
• Heating temperature: 5 to 40°C
• Recharge time: Approx. 80 minutes (with DJI 65W portable charger) / Approx. 60 minutes (with DJI 100W USB-C power adapter and battery charging station)

Nacelle

• Number of axis(es): 3-axis mechanical gimbal (pan, tilt, roll)
• Max. control speed: 100 °/s
• Vibration angular range: +/- 0.0037°
• Adjustable range: Tilt: -90 to 60° / Pan: -5 to 5°
• Mechanical amplitude: Tilt: -135° to 70° / Roll: -50° to 50° / Pan: -27° to 27°

Included

• 1x DJI Air 3S Drone
• 1x DJI RC-N3 Remote Controller
• 1x USB-C DJI RC-N3 cable
• 1x Lightning DJI RC-N3 cable
• 1x Intelligent Flight Battery
• 1x Spare Pairs of Low-Noise Propellers
• 1x Gimbal Guard
• 1x USB-C to USB-C PD Cable
• 1x Documents

Camera

• Sensor: Wide camera (main): 1-inch CMOS, 50MP effective pixels / Mid-telephoto camera (secondary): 1/1.3-inch CMOS, 48MP effective pixels
• Maximum image size: Wide camera (main): 8,192 x 6,144px / Mid-telephoto camera (secondary): 8,064 x 6,048px
• Video resolutions: 4K: 3,840 x 2,160 at 24/25/30/48/50/60/120p / FHD: 1,920 x 1,080 at 24/25/30/48/50/60/120/240p / 2.7K vertical shot: 1,512 x 2,688 at 24/25/30/48/50/60p Video format: MP4 (MPEG-4 AVC/H.264, HEVC/H.265) Photo format(s): JPEG / DNG (RAW)
• Max. Recording Bitrate Video: H.264/H.265: 130 Mb/s
• Zoom: Wide-angle camera (main): 1 to x2.9 / Medium telecamera (secondary): 3 to x9
• FOV: Wide-angle camera (main): 84° / Medium telecamera (secondary): 35°
• Focus: Wide-angle camera (main): 0.5m to ∞ / Medium telecamera (secondary): 3m to ∞
• Aperture: Wide-angle camera (main): f/1.8 / Medium telecamera (secondary): f/2.8

Remote controller

• Name: DJI RC-N3
• Dimensions: 104.2 x 150 x 45.2 mm
• Weight: Approximately 320 grams
• Radio range: 6km
• Operating temperature: -10° to +40°C
• Radio battery: 1S 2600mAh
• Autonomy: Without recharging any mobile device: 3.5 hours / When recharging a mobile device: 1.5 hours
• Charging time: 2 hours
• Operating frequencies: 2.400 to 2.4835 GHz / 5.170 to 5.250 GHz / 5.725 to 5.850 GHz
• Transmitter power (EIRP): 2.4 GHz: < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) // 5.1 GHz: < 23 dBm (CE) // 5.8 GHz: < 33 dBm (FCC) / < 14 dBm (CE) / < 30 dBm (SRRC)
• Charging temperature: From 5° to 40°C
• Connections: USB Type-C

Video transmission

• Video transmission system: O4
• Live preview quality: Radio control: 1080p/30fps, 1080p/60fps
• Operating frequency: 2.4000 to 2.4835 GHz 5.170 to 5.250 GHz 5.725 to 5.850 GHz / The frequencies of 5.170 to 5.250 GHz can only be used in countries and regions permitted by local laws and regulations.
• Maximum transmission distance: FCC: 20 km / CE: 10 km / SRRC: 10 km MIC: 10 km / Measured in an outdoor environment without interference and unobstructed. The above data corresponds to the furthest communication distances for one-way flights without return
• Latency: Aircraft + Remote Controller: Approx. 120 ms / Depending on the actual environment and mobile device.
• Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE)
