Manufacturer : TrueRC / Référence : CORESF-MMCX-85MM-LHCP

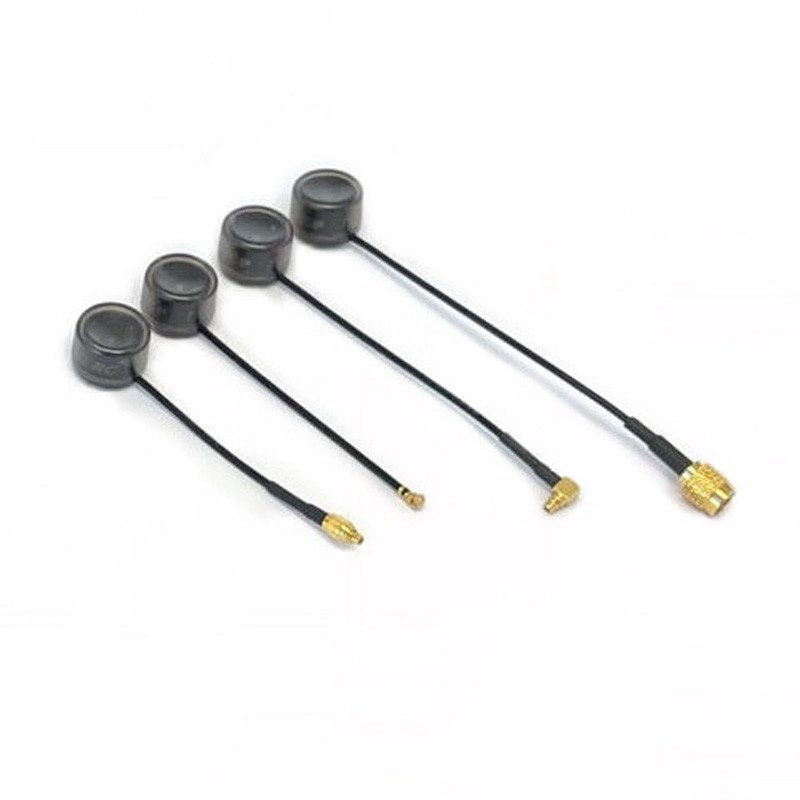

CORE 5.8 Side Feed - MMCX 85mm Antenna - LHCP By TrueRC

En stock
€16.90

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

TrueRC's CORE 5.8 Side Feed antennas are a special version with side exit cable, perfect for mounting in an airplane fuselage or wing.

A heavy-duty outer shell protects these antennas from crashes.

Bullet points

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Side exit cable for novel mounting options
  • Exclusive knurled True-SMA for easy tightening

Specifications

  • Gain : 1.9dBic
  • Polarization : LHCP
  • Length : 85mm
  • Connector : MMCX
  • Cross-Polar Rejection : -10 to -20dB, (3.2%)
  • Bandwidth : 5.5GHz-6.1GHz
  • Radiation Efficiency : 98%
  • SWR : <=1.2:1
  • Dimensions(head) : 16.9mm dia. x 13.1mm height.
  • Cable : TrueRC RG178 coax

Included

  • 1x Core 5.8 Side Feed antenna
