Combo X2-Air 5.8 MK.II For DJI FPV - RHCP By TrueRC
In stock
€110.75
View More Info
Detailed Description
Even more gain and comfort thanks to this novelty from TrueRC which combines two X2-Air MK II antennas for DJI FPV as well as two Singularity Stubby DJI 5.8 antennas.
Simply install the 4 antennas on your glasses and all you have to do is enjoy your day of flying!
Caution: DJI and Walksnail systems use LHCP polarization by default.
Specifications
Video
DJI FPV
Type of antenna
Pack
Connector
RP-SMA
Polarity
RHCP
X2-AIR MK II Specifications
- Bandwidth: 5.1GHz-7.0GHz
- Gain: 13 dBic
- Polarization: RHCP
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 75deg.
- Vert. beam @-3dB**: 34deg.
- Connector: Custom knurled RP-SMA
- Dimension: 72mm x 34mm x 15mm
- Weight: 20g each
- Include adhesive mount for installation onto DJI FPV goggles.
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Included

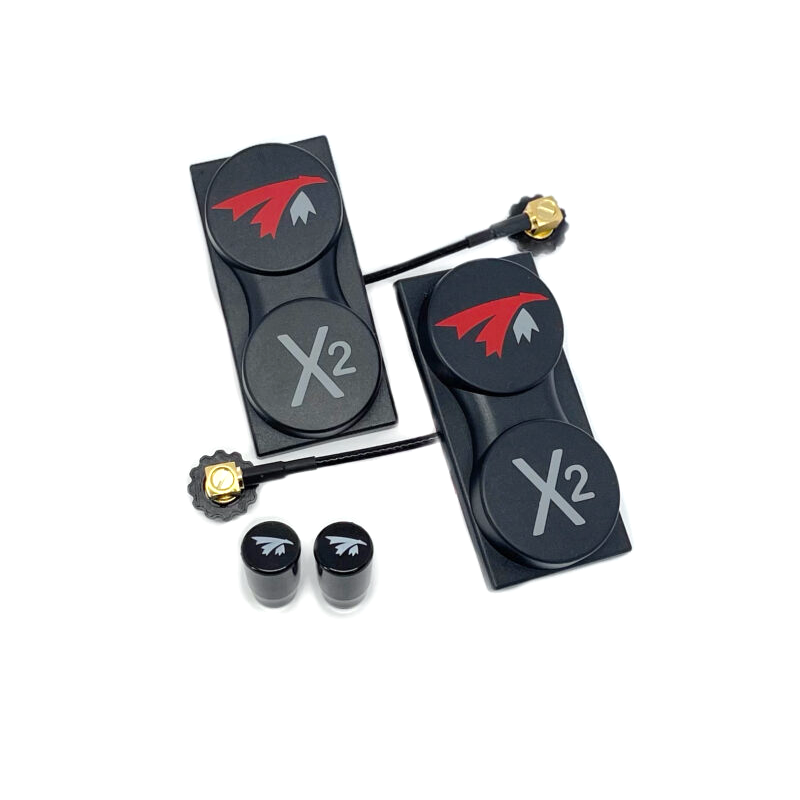

- 2x TrueRC X2-AIR 5.8 MK.II antenna for DJI FPV - RP-SMA - RHCP (one for each side)
- 2x TrueRC Singularity 5.8 Stubby antenna for DJI FPV - RP-SMA - RHCP (one for each side)
