Ajouter à la Wishlist
Manufacturer : Radiomaster / Référence : HP0157-003-COMB

Combo Ranger ELRS 2.4G Module + Receivers By RadioMaster

5/5 (4 notifications)
Hors stock
€143.90
Size : Standard
Size : Micro Size : Nano Size : Standard
Product available with different options Notify me when the product is available again

15 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

RadioMaster's Ranger is the pinnacle of TX ExpressLRS 2.4G modules.

Designed to last thanks to its robust CNC aluminum housing while looking good.

The Ranger is available in three formats, standard size, micro or nano; which provides wide compatibility with most radios on the market.

This combo version includes the module of your choice with two RP1 ELRS receivers and one RP2 ELRS receiver.

- The nano format adapts to radios with an external nano bay type such as the RadioMaster Zorro, the FrSky X-Lite, X9 Lite...

- The micro format adapts to radios with an external JR / micro type bay such as the RadioMaster TX16S MKII, the FrSky X9D, QX7...

- The standard format adapts to radios with an external nano OR micro bay thanks to its adapter boxes.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

The characteristics of each of the modules are partly common, for the additional characteristics of the standard Ranger, refer to the "standard version" columns :

Bullet points

  • High-efficiency cooling system
  • Up to 1Watt Power output
  • Wifi and Bluetooth support
  • Packet rates up to F-1000Hz
  • T-antenna included

Standard version

  • OLED Display
  • Rugged CNC Case
  • Built-in Accelerometer
  • 5 Direction Nav key and customizable shortcut buttons
  • Micro and Nano adapters included
  • Moxon included
  • CRSF cable for compatible Futaba radios included

Specifications

  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux,as espbackpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz to 2480 MHz
  • Protocol : ELRS 2.4G EU version
  • Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Wifi Support: Yes
  • Bluetooth support: Yes
  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight:  50g (with antenna) / 40.5g (without antenna)
  • Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

Standard version

  • Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
  • Futaba CRSF socket cable: Included
  • OLED screen:  64x128px
  • 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
  • Built-in RGB light strip
  • Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
  • Dimension: 95*51*25mm (without antenna)

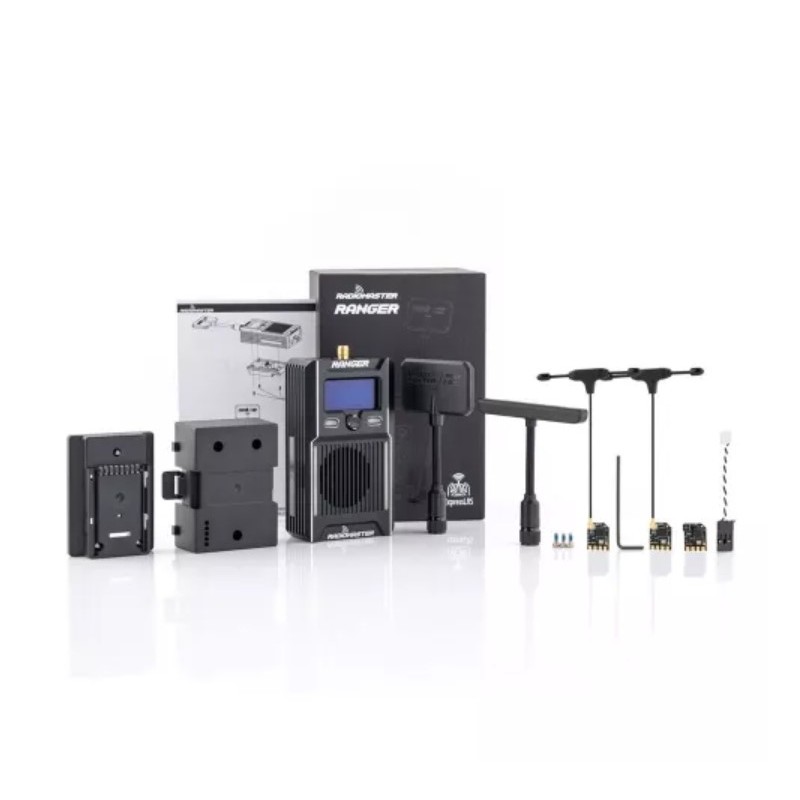

Included

  • 1x Ranger module (micro or nano or standard)
  • 2x RP1 receiver
  • 1x RP2 receiver
  • 1x T antenna
  • 1x Futaba CRSF socket cable (standard version only)
  • 1x JR Adapter (standard version only)
  • 1x Nano Adapter (standard version only)
  • 1x Moxon Antenna (standard version only)
  • 1x Hexagon socket screwdriver (standard version only)
  • 3x M2*5 Screws  (standard version only)
Voir plus

Customer reviews

5/5 (4 notifications)
Par le 01/10/2023

Perfect!

Par le 22/09/2023

Livré très rapidement, merci à vous ;)

Par le 09/06/2023

Pussant, pas trop gros. RAS. Mise à jour dans la dernière version d'elrs de tout le parc.

Par le 02/02/2023

ok good
