CineApe 35 FPV Kit RTF By DarwinFPV
Related accessories
Technical characteristics
The CineApe 35 Ready To Fly kit is made for any new beginner who wants to explore the world of FPV. Everything you need is included, just charge and enjoy.
This kit includes a 3.5" analog Cinewhoop drone, a TX12 Mark II RadioMaster radio, 5.8G FPV goggles, 4S 1500mAh batteries, a charger and all the accessories you will need.
The CineApe 35 can fly for 7 minutes, at a maximum distance of about 3km and at a maximum speed of 110km/h.
This 3.5" format brings more power than its 2.5" namesake and also allows you to mount a GoPro on it.
Its flight feel is very close to that of a 5" drone. Moreover, if you are concerned about safety, the CineApe will meet most of your usage scenarios without any risk.
The BNF consists of a 1W 5.8G analog VTX, a F411 45A AIO, an ELRS receiver, 2006 3400KV motors, Gemfan D90S propellers and a GM8 GPS.
CineApe 35
- Video : Non (can be plugged in action camera)
- Camera : Caddx Ant
- VTX : Darwin VT5804 5.8G 1W
- AIO : Darwin F411 3-6S 45A ELRS
- Receiver : Onboard SPI ELRS 2.4G
- GPS : Darwin GM8
- Motors : 2006 3400KV
- Propellers : Gemfan D90S-3
- Frame : True X
- Wheelbase : 151.5mm
- Arm thickness : 3.5mm
- Payload : 900g
- Max horizontal flight speed : 110km/h
- Dimensions : 213*213*82mm (without props)
- Weight : ~278g
TX12 radio
- Frequency : 2.400-2.480GHz
- Transmitting module : ELRS SX1280
- Transmitting power : 10-250mW
- Remote control distance : 3km
- Gimbal : High precision hall gimbals
- Channels : Up to 16
- External module : JR/FrSky/Crossfire compatible
- Display : 128*64 monochrome LCD
- Battery : Built-in 2S 2000mAh 18650 Li
- Voltage Range : 6.6-8.4V DC
- USB charging : USB-C (QC3.0)
- Upgrade method : Support USB online upgrade
- Controller size : 170*159*108mm
- Controller weight : 363g
- Package size : 186*186*110mm
- Package weight : 674.6g
FPV Goggles
- Frequency : 5.658-5.945GHz
- Screen size : 4.3inch
- Screen resolution : 800x480
- Aspect ratio : 16:9
- Screen brightness : 300cd/m
- View angle : 12 o'clock
- DVR : Yes (480P/25FPS)
- AV jack : Yes
- Operating hours : 2.5h
- Battery : Built-in 3.7V/2000mAh LiPo
- Charging system : DC5V/2A (USB)
- Video format : NTSC/PAL
- Channels : 40
- FPV goggle size : 155*144*113mm
- FPV goggle weight : 314.6g
- Package size : 195*180*120mm
- Package weight : 375g

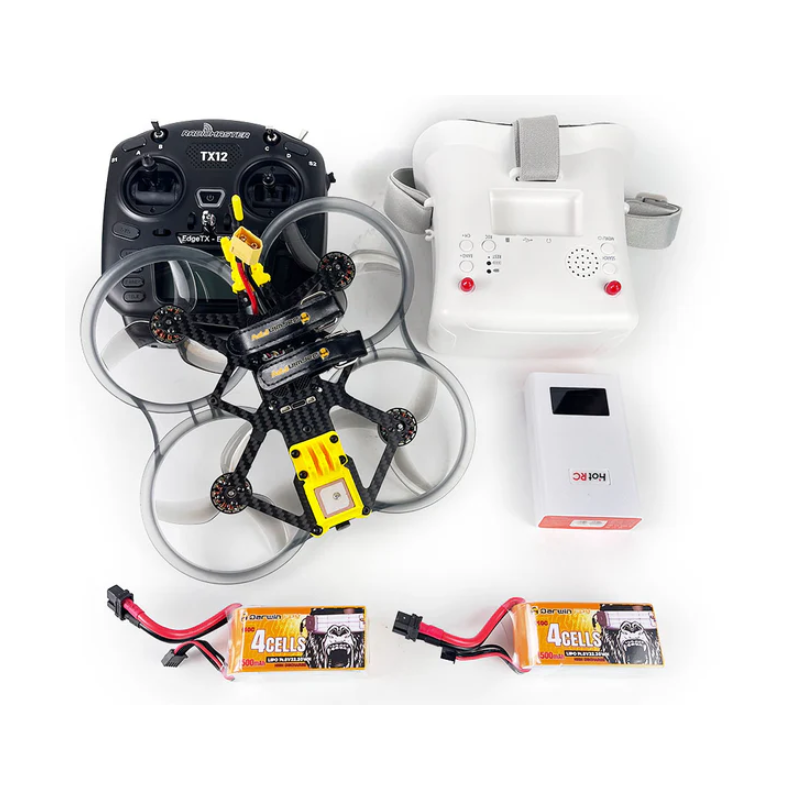

Included
- 1x CineApe 35 4S analog drone
- 1x 4.3" FPV goggles
- 1x RadioMaster TX12 Mark II ELRS controller
- 1x HotRC A400 Battery balance charger
- 2x Darwin 4S 1500mAh battery
- 1x Injection molding guard EVA bumper strip
- 1x Sticker
- 1x Hardware set
- 1x Manual
