Manufacturer : Iflight / Référence : B019373

Borg G4 1S AIO ELRS 2.4G By Iflight

Hors stock
€56.90
Out-of-Stock Notify me when the product is available again

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

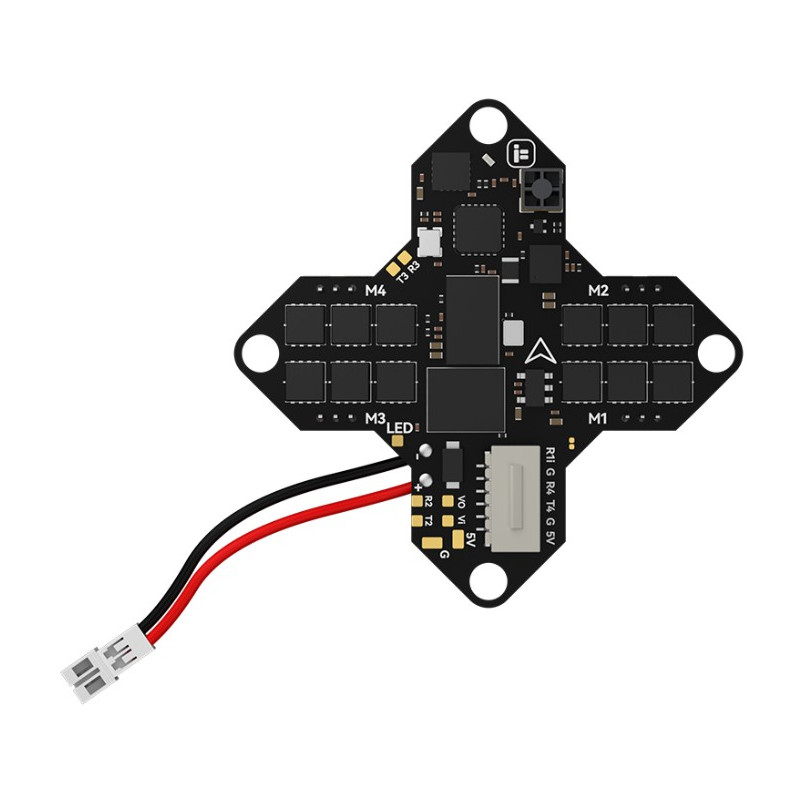

The Borg G4 1S AIO with Rx from iFlight is an all-in-one unit (FC + ESC + 2.4 GHz ELRS receiver) specially designed for 65–75 mm Whoops, combining high performance with seamless integration.

Powered by an STM32G473, it delivers greater processing power than the STM32F411, ensuring more responsive and precise control. The flight controller features an ICM42688 gyro, AT7456E OSD, and 16 MB of Flash memory for Blackbox logging, along with a 5 V 3 A BEC.

The ESC is designed exclusively for 1S power, supports a continuous current of 12 A, and is compatible with protocols such as DShot150/300/600, MultiShot, and OneShot. The built-in ELRS receiver provides direct connectivity, while still allowing the use of an external receiver if preferred.

Its compact size, 25.5×25.5 mm mounting pattern with 3 mm holes, and ultra-lightweight design (~4 g) make it an ideal choice for performance-oriented builds where every gram matters.

FC

  • Input voltage: 1S; Support LIHV battery
  • MCU: STM32G473
  • Gyro: ICM42688
  • Barometer: N/A
  • OSD Chip: AT7456E
  • Flash: 16MB (Blackbox flash)
  • UARTS: 4
  • Motor outputs: 4
  • I2C serial: Not supported
  • VTX protocol: Support DJI MSP/Smartaudio/IRCTramp/HDZero
  • LED controller: Yes
  • Beeper pad: N/A
  • FC Firmware target: IFLIGHT_BORG_G4_AIO (Betaflight)
  • Receiver Firmware: iFlight 2.4GHz RX (3.3.0)
  • Mount pattern: 25.5*25.5mm  φ3
  • Dimensions: 30*30mm±1
  • Weight: 4g±0.5g
  • BEC: 5V 3A

ESC

  • Input Voltage: 1S; Support LIHV battery
  • Continuous Current: 12A
  • MCU: EFM8BB51F16
  • Driver: N/A
  • Target: C-X-5 - Bluejay, 0.19, 96kHz
  • Current rate: 480 (1/10mV/A)
  • BEC: N/A
  • Telemetry: Not supported
  • Bidirectional DSHOT: Supported
  • Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Included

  • 1x Borg G4 AIO with RX
  • 1x Cable Set
  • 4x Silicone Grommets
