Manufacturer : Iflight / Référence : B018018

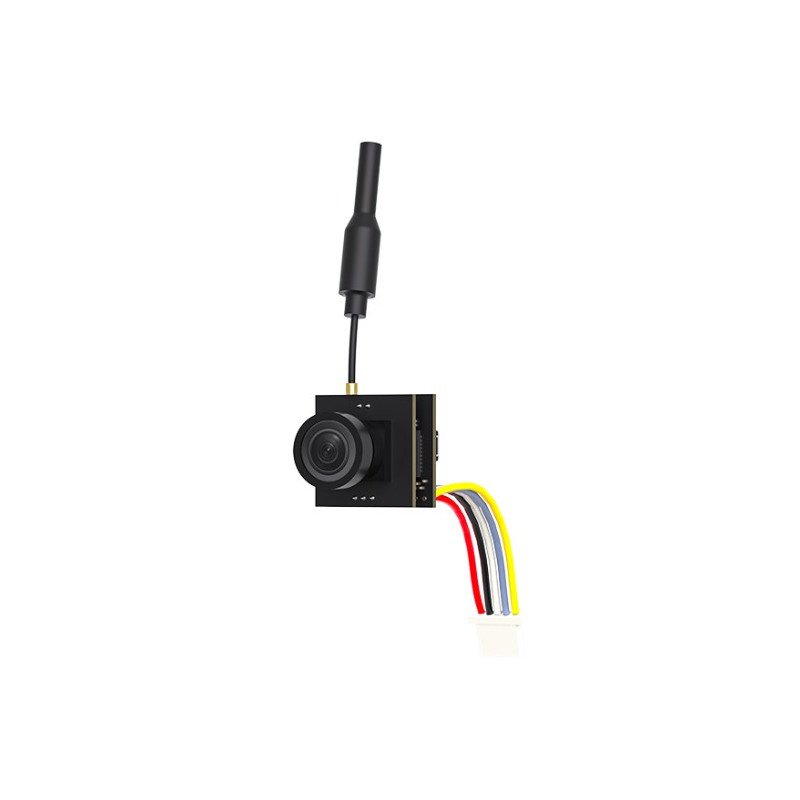

Borg 5.8G Micro VTX & Cam By Iflight
En stock
€35.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Discover the latest innovation in the Borg Electric series: a new transmission system with an integrated camera specifically designed for racing drones.
This ultra-compact solution from Iflight weighs only 3.8 grams, significantly reducing the drone's overall weight. Additionally, the transmission power is adjustable, allowing for optimized performance based on your specific needs.
VTX
- Interface: IPEX
- Power levels: PIT/25mW/100mW/150mW@5V 550mA
- Dimensions: 15.5X15X20.5mm
- Lightweight: 3.8g
- VTX telemetry: IRC Tramp
Camera
- Angle: 115° wide-angle lens
- Focal length: 1.45mm
- Image Sensor: 1/4″ CMOS Sensor
- Resolution: 600TVL
- Signal System: PAL/NTSC optional
- Screen Format: 4:3
- Input voltage: 5V DC
Included
- 1x Borg 5.8G micro VTX & Cam
- 1x Antenna
VTX instructions
- Short press: Red(CH): The number of Red LED flashing indicates the VTX channel. Short press to switch the Channel.
- Press and hole for 2s: Blue(BAND): The number of LED flashing indicates the BAND A-R. Short press to switch Band.
- Press and hole for 2s again: Green(power): The number of LED flashing indicates the VTX output power. Short press to change output power. A solid green light indicates PIT mode.
- After the setting is complete, press and hole for 2s to exit the adjustment mode or if no key is pressed after 10 seconds during the adjustment, the system automatically exits the adjustment mode and saves the current Settings.
