Bando Killer 5" V2.5 Ready to Build Kit By DFR
Related accessories
Technical characteristics
You are getting started in FPV and want to create your first build but unsure about component compatibility?
We've gathered a selection of products to offer you a nearly complete kit (excluding the video system, which you'll need to choose according to your needs and budget, knowing that this frame is compatible with all current video systems).
Based around the Lethal Conception Bando Killer V2.5 frame, this kit is a budget-friendly selection that includes the DFR F722 HD + KO55 Skystars + Nano RX ELRS 2.4G DFR stack.
You won't lack power with the Lethal Conception 2207.5 2066KV motors coupled with the Gemfan 51466 V2 three-blade propellers.
You'll also find some accessories to facilitate setup, such as motor wire shields and various TPU mounts.
Everything is delivered to you in the DFR Lipo Case, which will safely store your batteries.
Note: Goggles, radio, charger, batteries, and video system are not included (see "included" section at the bottom of the page).
Bando Killer V2.5
- Size: 228mm Squished X
- Carbon: T300 Full-layer Plain Mat
- Internal Height: 22mm
- Motor Mounts: 16x16, 16x19mm
- Stack Center Distance: 20x20, 30.5x30.5mm
- Rear VTX Hole Center Distance: 20x20mm
- Weight: ~137g
- Compatibility: DJI O4 Pro, Vista, HDZero, Walksnail, and Analog
- Compatible Cameras: 28mm, 20mm, 19mm, and 14mm (with adapters)
FC & ESC
F722 FC
- Built-in DJI Digital FPV.
- MCU: 216 MHz STM32F722
- Gyro: ICM42688P
- Baro: DPS310
- Black box: 32 MB
- Betaflight OSD: YES
- BEC: 5 V 2.5 A / 9 V 2.5 A
- UART: 5 (UART3 can be used as I2C)
- Motor outputs: 8
KO55 ESC
- Weight:13.3g
- Supports: 3-6S Lipo input
- Firmware: BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- Target: Q-H-30 BLS 16.7
Recommended parts
(not included)
- Video system of your choice (DJI / Walksnail / HDZero / Analog)
- FPV goggles (depending on your video system) : See
- 6S battery : See
- LiPo charger : See
- Radio with ExpressLRS 2.4G compatible TX : See
- Buzzer : See
- GPS : See + TPU mount

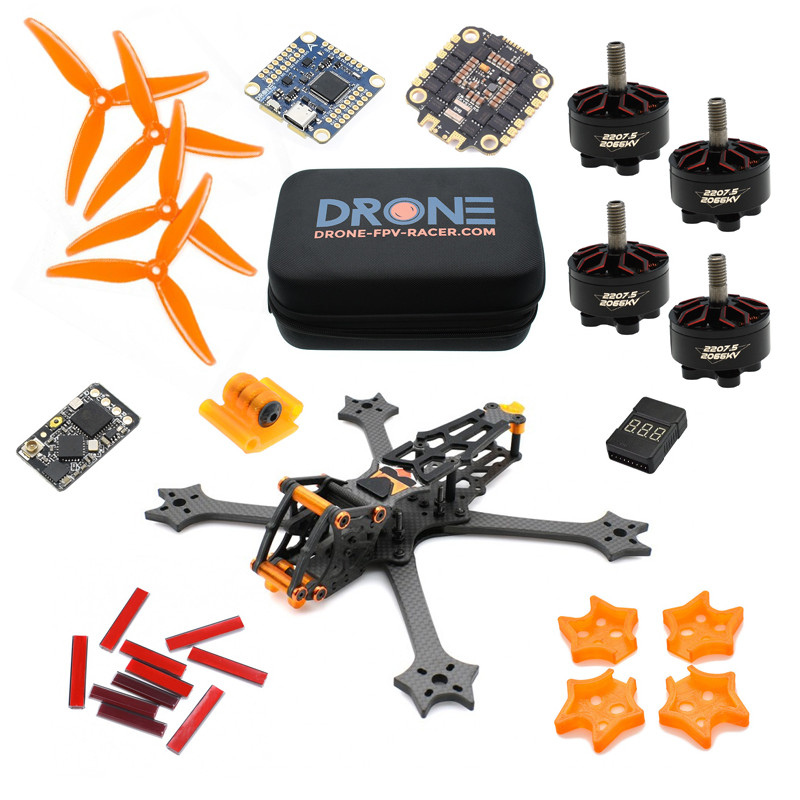

Included
- 1x Bando Killer 5" V2.5 Frame
- 1x DFR F722 Dual HD Flight Controller
- 1x Skystars KO55 BLHeli_S ESC
- 4x Lethal Conception 2207.5 - 2066KV Motors
- 1x DFR ELRS 2.4G Nano Receiver
- 2x Gemfan 51466-3 V2 Propeller Set
- 4x TPU Arm Protectors
- 1x TPU GoPro Mount
- 1x Motor Wire Protector Set
- 1x DFR Lipo Case
- 1x BX100 Battery Tester
Note: Goggles, radio, charger, batteries and video system not included
