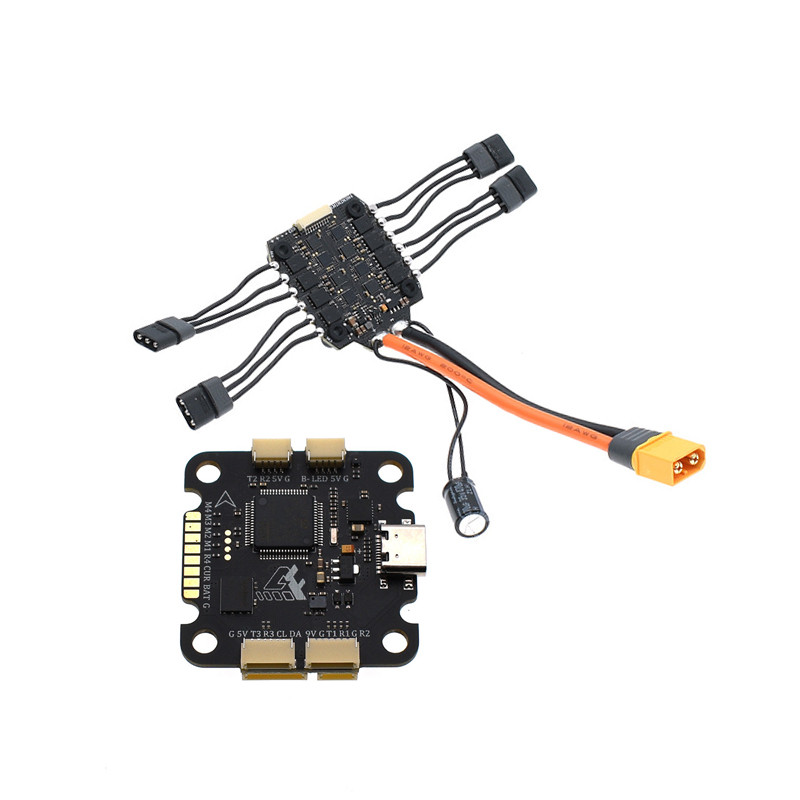

Argus F722 55A Plug & Play Stack (Soldering free) By AxisFlying

En stock
€159.90
Same Day Shipping

16 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Are you looking for quality and time savings? AxisFlying took care of the welding and offers you this plug & play stack, requiring NO WELDING!

In fact, the cables with the MR30 connectors intended to connect the motors are already soldered to the FC.

All you have to do is mount the ESC and connect the motors (related accessories / not included).

This Argus series Stack, O3 compatible, consists of the F722 flight controller which can support 8 motors and the 55A ESC.

This stack will be compatible with the majority of 5" freestyle frames in X and Squished geometry (225mm max).

Frames validated by the DFR team :


Note: Allow at least 25mm spacing on your frame to be able to install this stack.

FC

  • Target: STM32F722RET6
  • Gyro: BMI270
  • Barometer: Yes
  • OSD: Yes
  • BEC: 9V/2A, 5V/2A
  • UART: 6
  • Black box: 16M
  • Supports 1 to 8 motors
  • Firmware: AXISFLYINGF7PRO
  • Input voltage: 3-6S (12-50V max)
  • Mounting: 30.5*30.5mm/M3
  • Weight: 8.4g

ESC

  • Voltage: 3-6S
  • Current: 55A
  • Burst: 65A (10s)
  • Target: BLHeli_32
  • PWM frequency: 16-96KHz
  • Mounting: 30.5x30.5mm/M3
  • Dimensions: 48.6*44*6.3mm
  • Weight: 16.2g

Included

  • 1x Argus F722 FC with welded motor wires
  • 1x Argus 4in1 55A ESC
  • 1x Set of dampers
  • 1x 8pin cable
  • 4x MR30 connector
  • 1x 35V 470uF capacitor
  • 1x XT60 cable
  • 1x Hardware set

Note: Only compatible with C246 MR30 motors (not included)
