Manufacturer : Rcinpower / Référence : AOSSUP-1404-4000KV

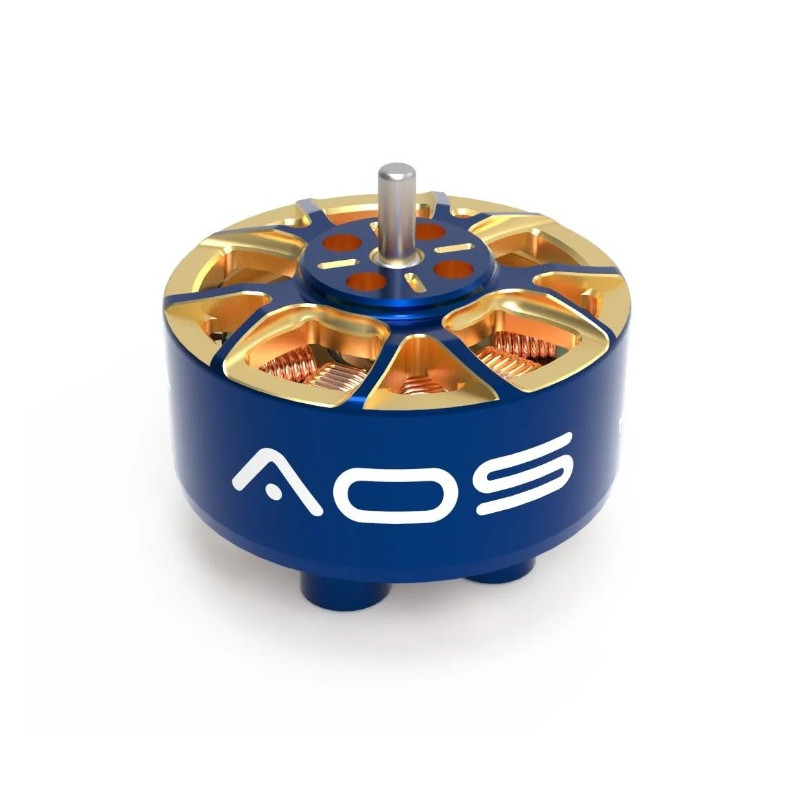

AOS Supernova 1404 4000KV Brushless Motor By Rcinpower
Hors stock
€17.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Discover the Rcinpower AOS Supernova 1404 4000KV motor — a true feat of engineering designed for ultra-light drones under 250 g.
Built on the same technology that set a world speed record with the 3220 version, this model stands out for its enhanced power, stronger torque, and exceptional efficiency, delivering a flight experience that is both smooth and highly responsive.
Designed for 2.5″ or 3″ propellers on a 4S battery, this motor pushes the limits of its class by providing instant throttle response without compromising on smoothness and precision.
It features a 1.5 mm T-Mount shaft, a blue and golden bell and can handle up to 20.9 A of current, ensuring reliability and performance even under demanding flight conditions.
Specifications
- KV: 4000
- Configuration: 9N12P
- Stator Diameter: 14mm
- Stator Length: 4.5mm
- Shaft Diameter: 1.5mm ( 2mm inside)
- Motor Dimensions: 18.75*13.2mm
- Weight: 10.2g (3cm wire)
- Idle Current(10)@10V(A): 0.77
- Cells (LiPo): 3S-4S
- Max Continuous Power(W)3S: 335
- Max Current(3S): 20.9A
- Max Efficiency Current: (4-7A)>85%
Included
- 1x AOS Supernova 1404 Brushless motor
- 1x Set of screws
