Manufacturer : AOS RC / Référence : FF14028

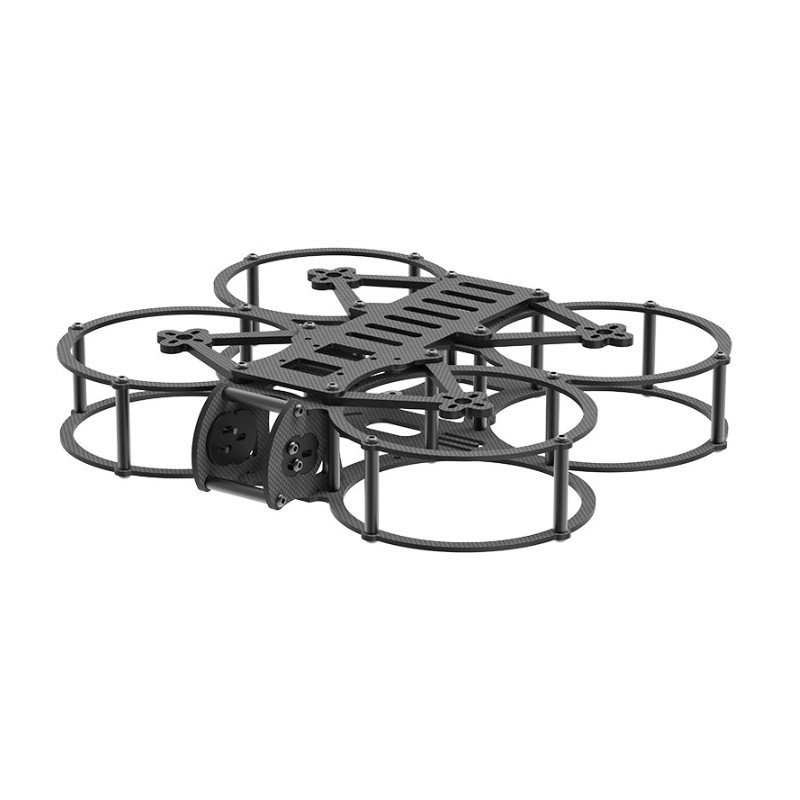

AOS Cine25 EVO V1.2 Frame Kit By AOS RC

Hors stock
€74.90
Out-of-Stock Notify me when the product is available again

8 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The latest version of the Cine25 EVO V1.2 frame from AOS RC is compatible with the DJI O3 system as well as all 19-20mm FPV cameras thanks to the updated camera plates.

Bullet points

  • Designed for 2.5 inch props, no props in view.
  • 2.5 mm Truss Arms
  • Up to two 25.5 or 20 mm stacks (front and rear)
  • One 25.5 or 20 mm stack (center)
  • 32x32mm M2 GoPro mounting holes in top plate with installed press-nuts
  • XT30 pass through top plate
  • Captive battery strap slots for lengthwise or toilet tank mounting
  • Fits 19-20mm FPV cameras including DJI O3
  • Recommended motor size 1404
  • 9x9 mm motor mounting
  • Standoffs, carbon and hardware included

Specifications

  • Frame wheelbase: 125mm
  • Frame Dimension: L99*W75.5*H32 mm  / L175*W151*H32 mm (with propguard)
  • Arm Thickness: 2.5mm
  • Top Plate Thickness: 1.5mm
  • Bottom Plate Thickness: 1.5mm
  • Upper Plate Thickness: 1.5mm
  • Motor Mounting: 9x9mm / 12*12mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

Included

  • 1x AOS Cine EVO V1.2
  • 1x Screw bag
  • 1x Strap
