Manufacturer : AOS RC / Référence : RD15412

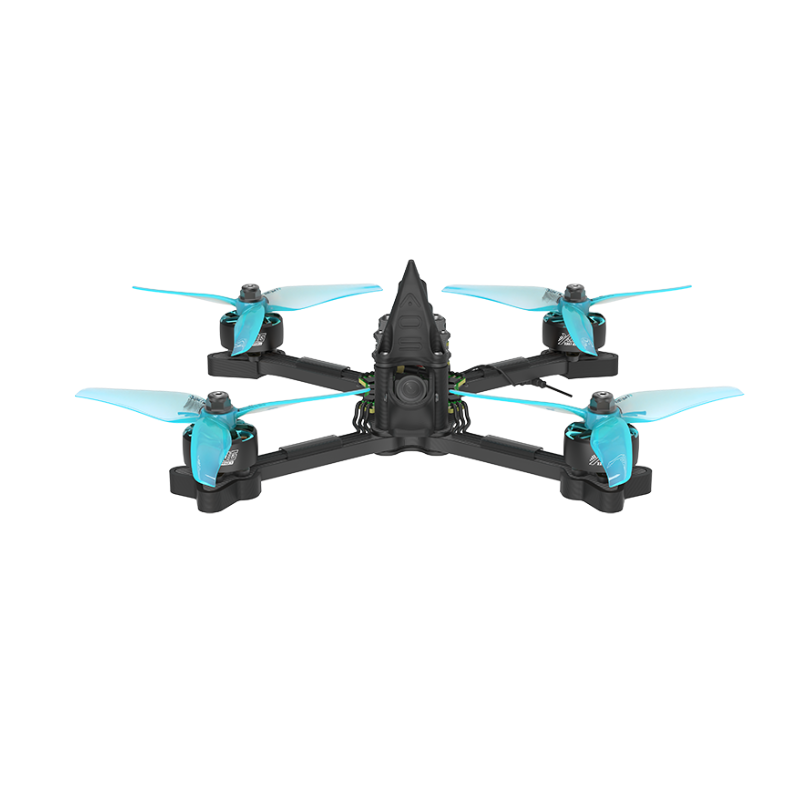

AOS 5R 6S Analog BNF ELRS 2.4G By Iflight

Hors stock
€389.90
Out-of-Stock Notify me when the product is available again

39 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The AOS 5R redefines the art of FPV racing, it has been designed with cutting-edge technology to give you an edge over the competition.

More versatile and advanced than any other frame, the AOS 5R brings innovation and adrenaline together.

This 6S BNF consists of a BLITZ Mini Force 5.8G 600mW analog VTX, a BLITZ Mini F722 FC, a BLITZ E55R ESC, Nazgul R5 V2 propellers and R5 2207 2050KV motors.

Specifications

  • Geometry: True-X
  • FC: BLITZ Mini F7 FC
  • ESC: BLITZ E55R 4-in-1 ESC
  • Video Transmission: BLITZ Mini Force 5.8g 600mW
  • Frame: 201mm wheelbase
  • Motor: R5 2207 2050KV motors
  • Prop: Nazgul R5 V2 propellers
  • Weight: 300g
  • Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
  • Dimensions (L×W×H)：142×142×38 mm
  • Max Speed: 205 km/h (Manual Mode)
  • Maximum Takeoff Altitude: 6000 m
  • Max Hover Time: Approx. 13 mins with 1400mAh no load
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: Level 6
  • Operating Temperature Range：-10° to 40° C (14° to 104° F)
  • Antennas: Single Antenna
  • GPS : No

VTX

  • Output Power: PIT/25mW/200mW/400mW/600mW
  • Input Volts: 5V
  • Working Current: ≤pit @80mA，≤25mw@280mA，≤100mw@405mA，≤400mw@485mA，≤600mw@575mA
  • Transmission fre: 40CH(A-B-E-F-R)
  • Antenna Interface: MMCX
  • Mounting Hole: 25*25 Φ2mm / 20*20 Φ3mm
  • Weight: 4 grams (W/O antenna)
  • Dimensions: 29mm*29mm

Included

  • 1x AOS 5R 6S BNF
  • 1x Lipo pad
  • 2x Propeller pair
