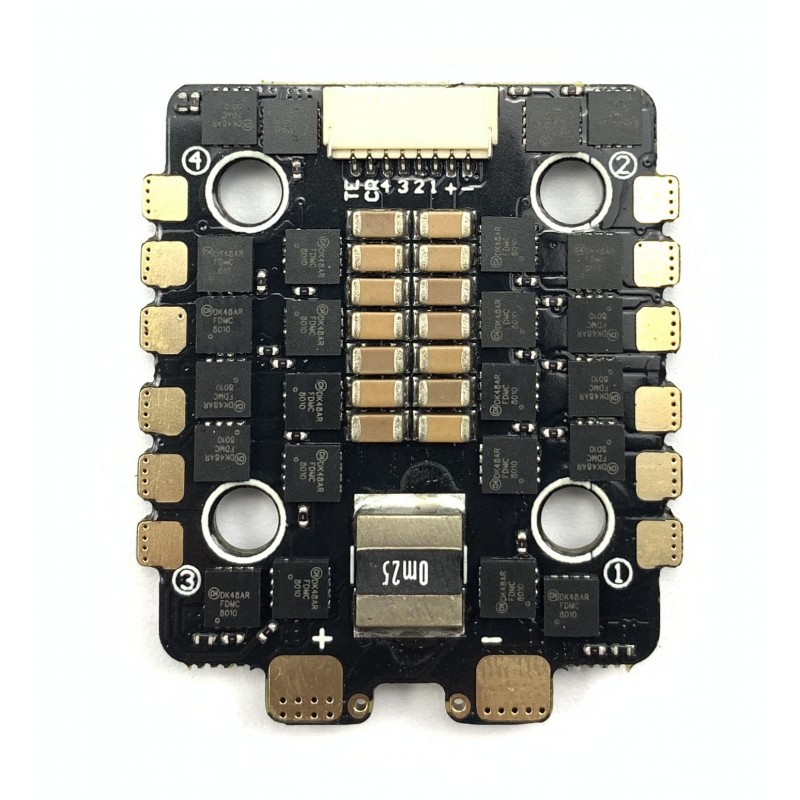

Aikon AK32PIN V2 4in1 35A 6S

The Aikon AK32 V2 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 worth your investment?

• BLHeli_32 code base
• Programmable PWM frequency of up to 48KHz
• Auto-timing for higher efficiency and reliability
• Analog Voltage/Current sensing
• Adjustable “Brake on Stop” force
• Improve direction change in Bidirectional mode
• One current sensor to measure the total amp draw and telemetry functions.
• ESC Telemetry (Voltage and RPMs and current)
• Configuring from FC using DShot commands
• Programmable sine modulation mode
• Programmable soft bidirectional mode
• Programmable autonomous periodic (every 32ms) telemetry mode
• Hardware noise filter on the signal input

Specifications

• Battery : 2-6S
• Constant Current : 35A
• Burst Current : 45A
• Mount Hole : 20*20mm
• Firmware : BLHeli32
• MCU : STM32PINF0
• Bootloader : Yes
• Weight (with/wire) : 10g
• Signal Wire length : 100mm
• Battery wire length : 100m
