AG01 CNC Hall Nano Gimbal For Pocket (2pcs) By RadioMaster
Related accessories
Technical characteristics
Enjoy unmatched precision and control with these AG01 nano Hall effect gimbals.
Compatible with RadioMaster Pocket radios, these AG01 nano will dramatically improve your RC experience!
The gimbals feature high-speed, high-precision, non-contact Hall effect sensors for precise steering and effortless centering.
Specifications
- Sensor type: Non-contact hall effect
- Working voltage: DC 3.3V
- Linearity: Real-time (No latency)
- Adjustable vertical travel range: 38°- 54°
- Self-centering adjustment: Yes

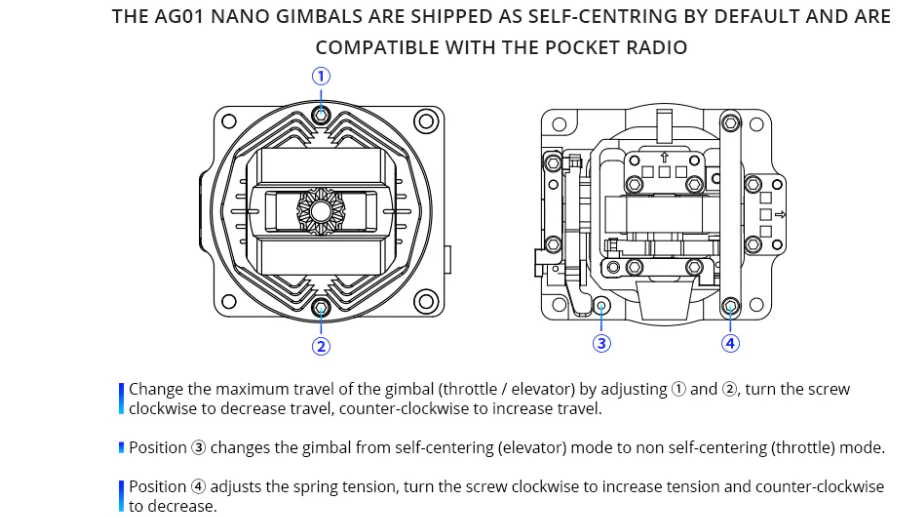

- Mode adjustment: Yes
- Adjustable tension: Yes
- Bearing: Quad precision bearings
- Temperature range: -20°C-85°C

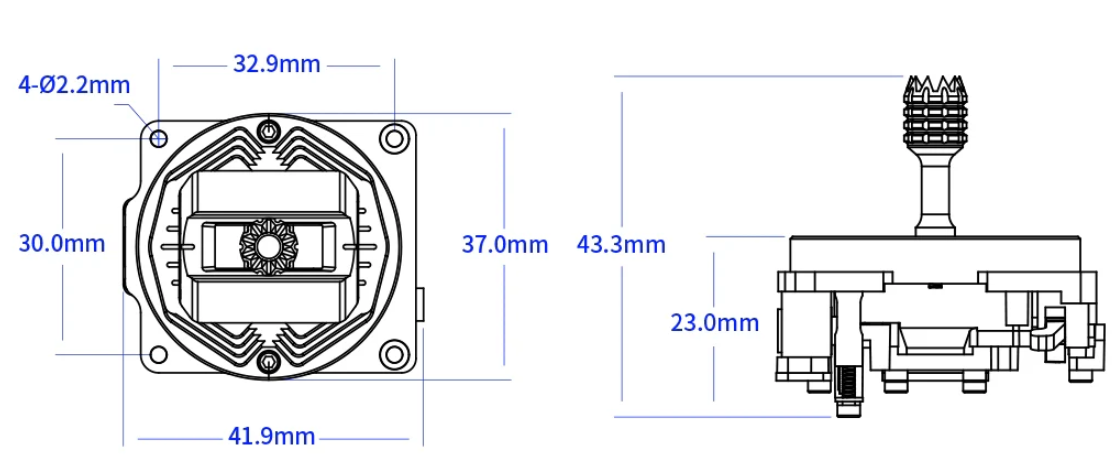

- Size: 42*37*43mm
- Weight: 32g(±0.3g)
Bullet points

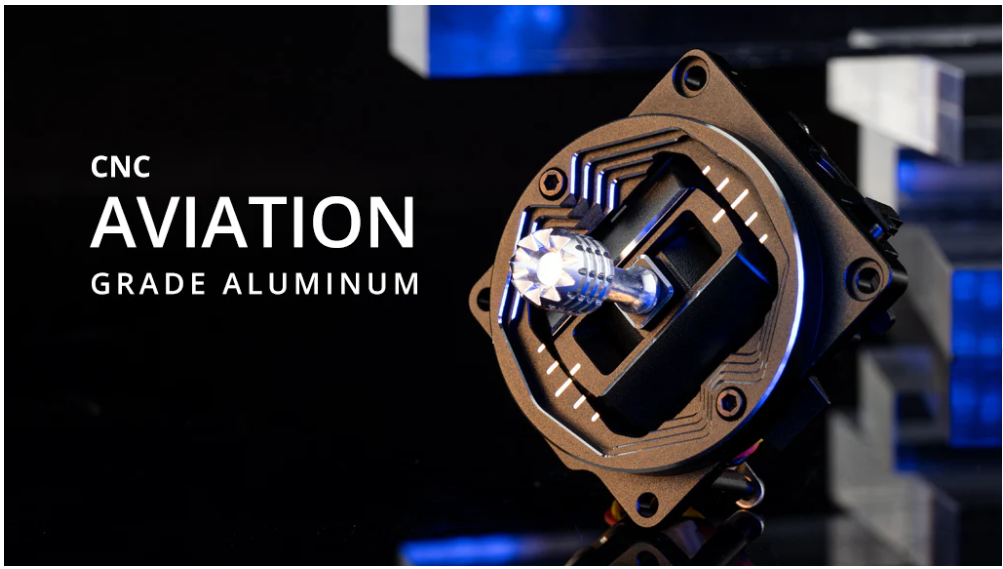

- Made with billet CNC aviation grade aluminum for superior durability and outstanding looks

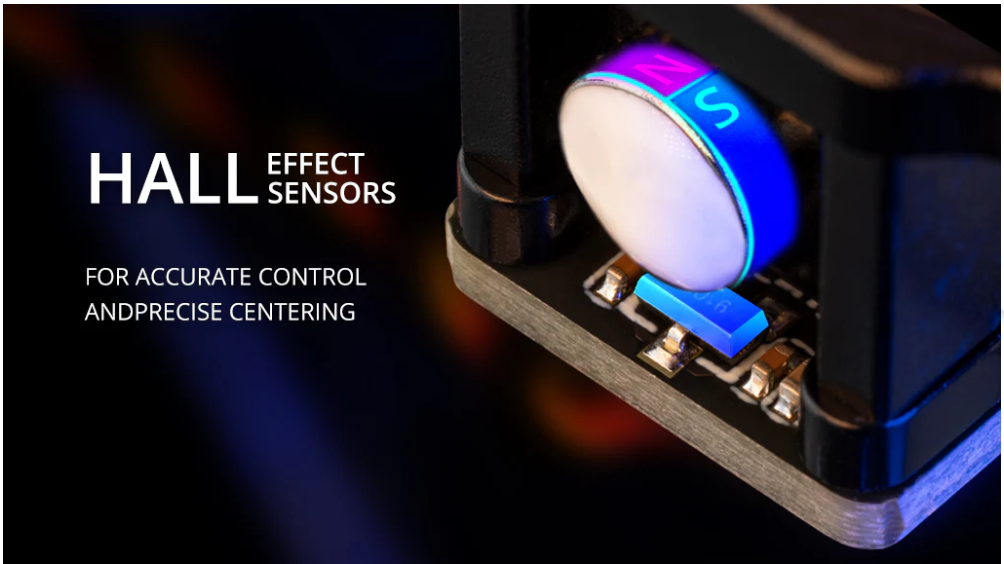

- Non contact hall sensors with precise centering for accurate control

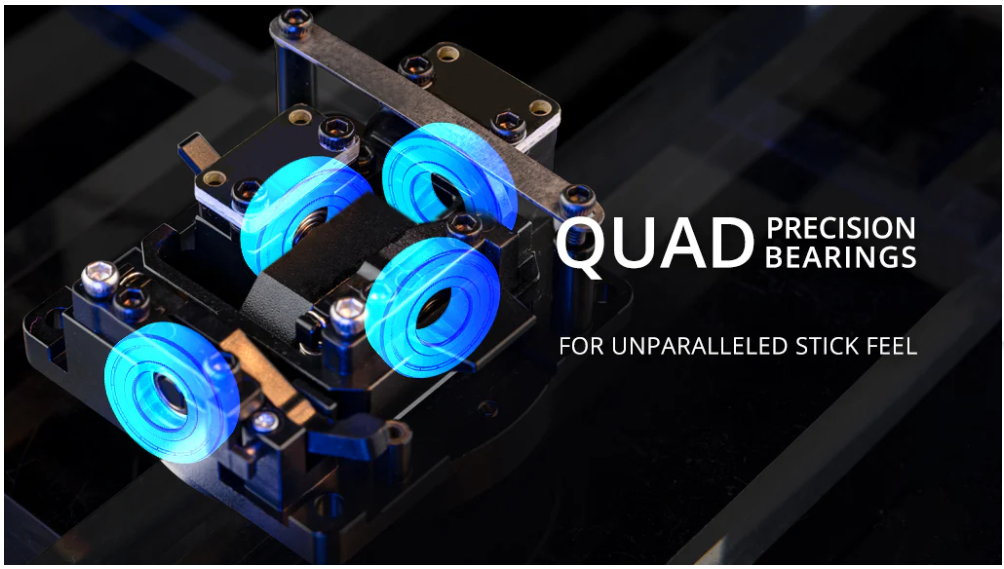

- Quad precision bearings for unparalleled feel

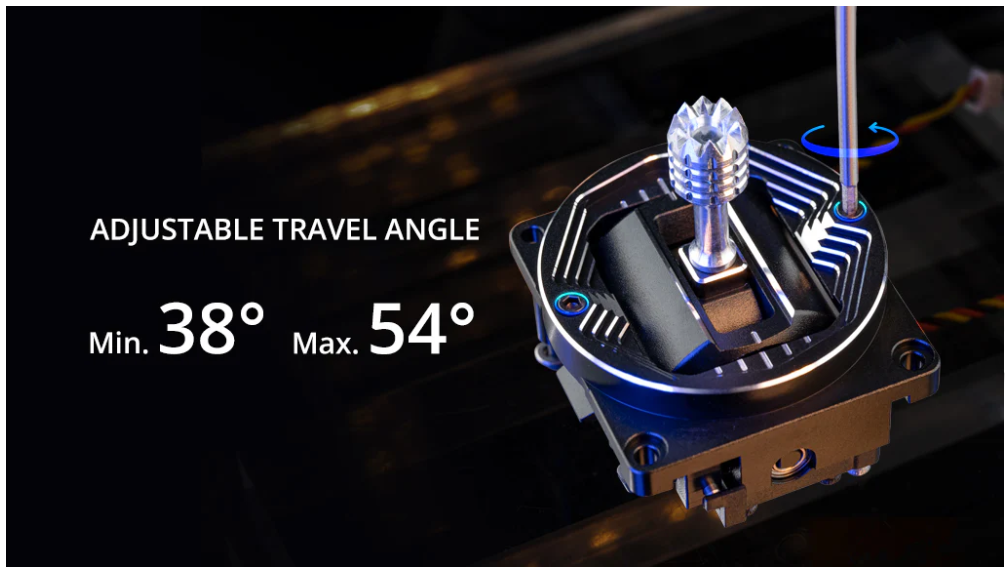

- Adjustable vertical travel angle (Min. 38°, Max. 54°)

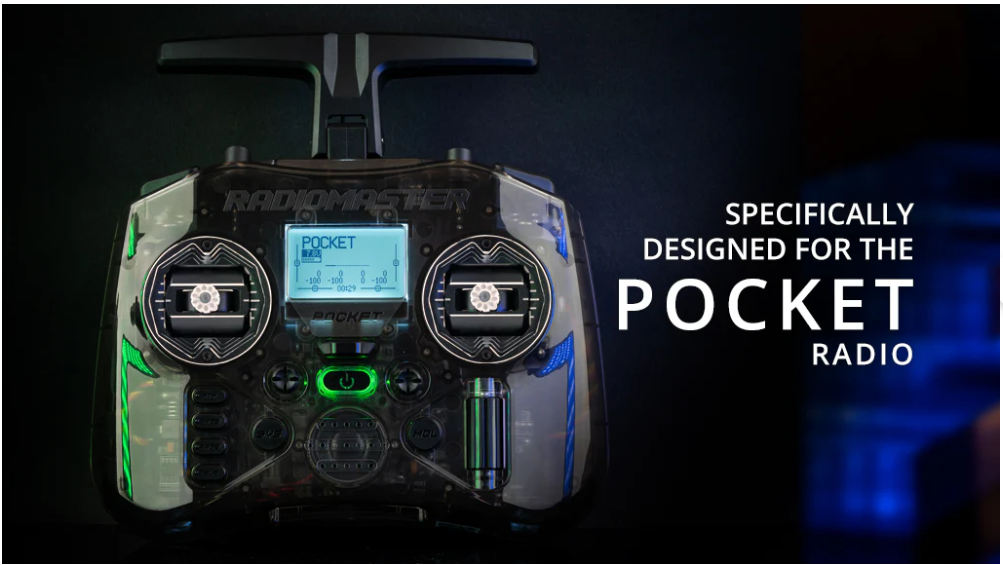

- AG01 NANO Gimbal is specifically designed for the smaller POCKET radio
Included
- 2x AG01 NANO CNC Hall CNC Gimbal
- 2x L-shaped Hexagon Socket Screwdriver
- 4x Hard Tension Spring
- 8x PB2*6 Screw
- 2x CM1.6*3 screw
- 2x Manual
Customer reviews
Le feeling et la précision sont bien meilleurs avec ces gimbals
I ordered the nano AG01 for my radiomaster pocket as i have a boxer crush with AG01 (pocket is my backup). The nano AG01 feels smoother and more sturdy compared to the original pocket gimbals. The only gripe i have is the plastic sticks. they should have made those metal to just for the feel of it. Also adjustable sticks would have been nice at that level and or price. All in all i love the gimbals. Easy and quick install, factory resistance feels good on the throttle (compared to the way to soft throttle on the standard ones)
Parfait, notice un peu légère pour le montage. Le feeling est vraiment cool ça sens la qualité.
La corsa degli stick è sempre limitata, ma la fattura dei materiali è il filing è al top.
