Manufacturer : Iflight / Référence : *B013789

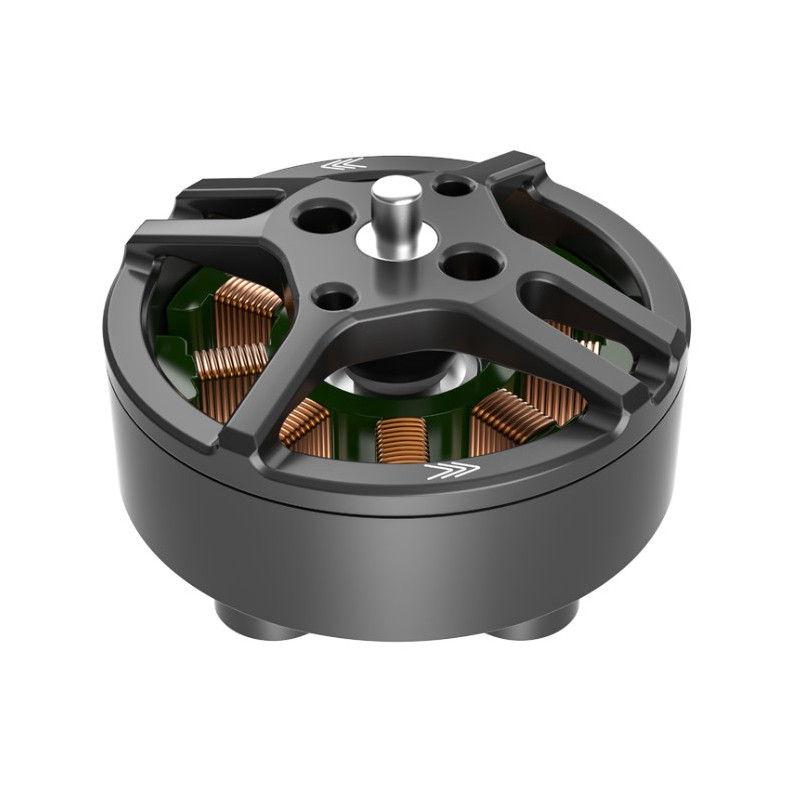

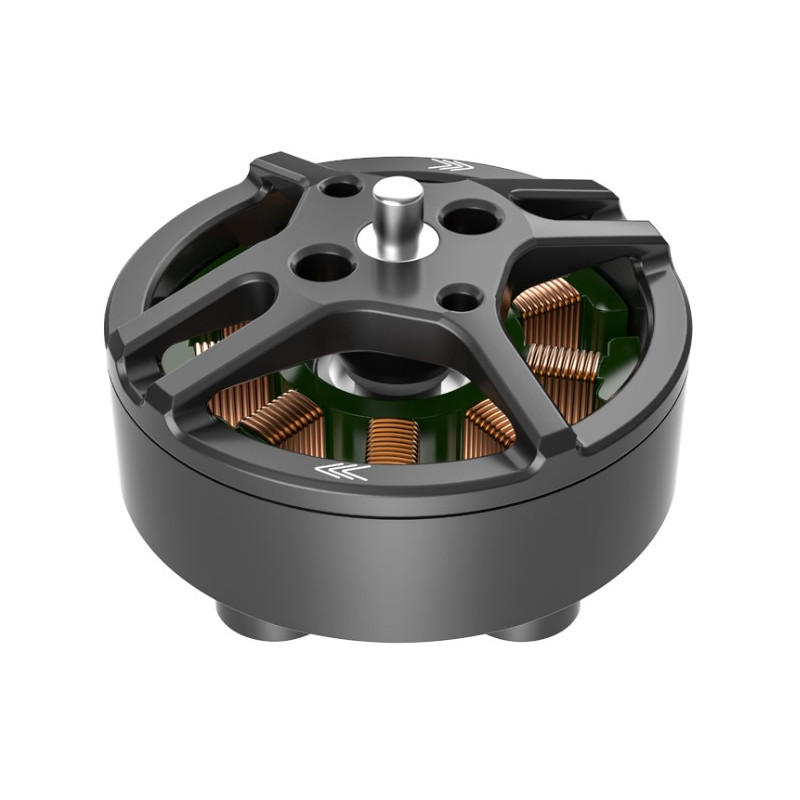

1404 - 4150KV Motor For Defender 25 - Iflight

En stock
€14.90
Sens :
Same Day Shipping

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Defender 25 motor is designed for an ultralight build.

Available in CW or CCW version, this 1404 motor is 4150KV.

Specifications

  • KV: 4150
  • Weight(included wire): 8g±0.5g
  • Dimension: φ17.7*12.5mm
  • Interphase Resistance:  0.188Ω
  • Input Volts: 4S
  • Peak Current: 12.03A
  • Max Watt: 200.8W
  • Mounting Holes: 3 x 9*9 φ2mm (3 mounting holes)
  • Rotor Specifications:  Segmented bell
  • Shaft Diameter: 1.5mm
  • Shaft Protruding Length: 1.8mm±0.2mm
  • Lead: 65mm/26AWG
  • Magnet: N52H Curved
  • Configuration: 9N12P
  • Bearing Type: NMB
  • Bearing Specification: φ5*φ2*2.5
  • Winding: Single Strand copper winding

Included

  • 1x 1404 4150KV motor
  • 4x M2x5 screw
