118mm 3" V2 Frame Kit - TuneRC - Drone-FPV-Racer.com

Detailed Description

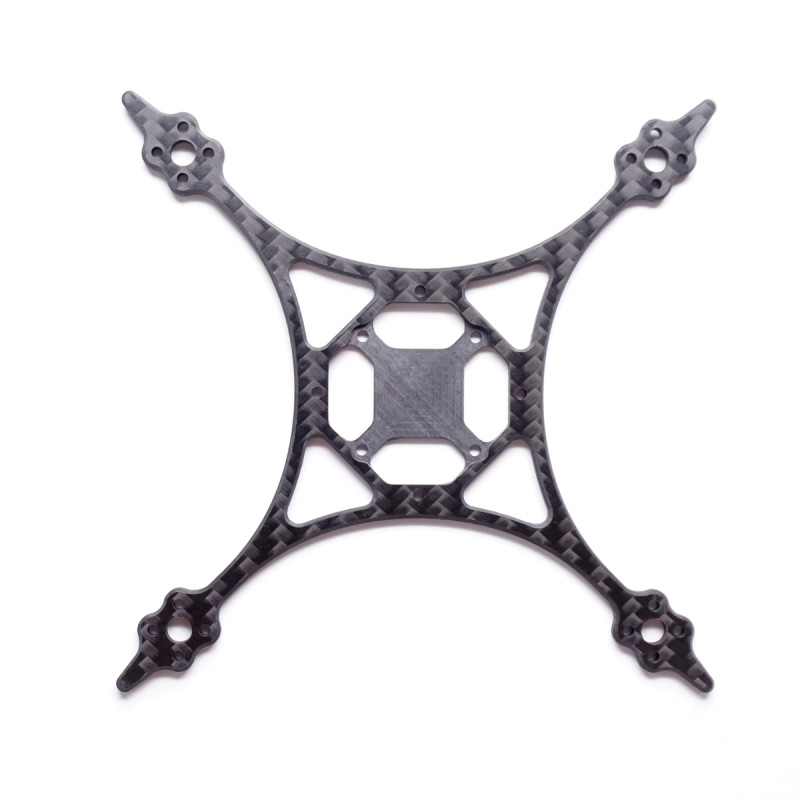

TuneRC presents here the version of its 3" 118mm carbon fiber frame kit

Unlike its predecessors, the V2 version will fit perfectly with flight controllers whose USB is upwards, downwards or sidewards. So there's no need anymore to flip the board and remap the motor direction in Betalfight.

The brand has also made some changes in terms of milling to create a dedicated place to tuck a battery strap. This will slide into the middle of the frame, allowing your battery to be held securely in place.

Specifications

Size 3"
Frame Size 100-150mm

Specifications

  • Diagonal Length : 118mm
  • Thickness : 3mm
  • Suitable Builds : 3inch 1s-4s toothpick
  • Supported FC : USB vertical direction FC, USB sidewards FC
  • FC Mounting Holes: 25.4x25.4 (20x20mm)
  • Weight : 9.2g
  • Motor mounting holes: M2 ( diagonal 9mm )
  • Recommended : Poly F405 2S-4S 20A AIO and Gemfan 3016 x3 Propeller

Included

  • 1x 118mm 3" V2 Frame Kit
  • 4x M2 x 18mm inner hex screws
  • 4x M2 nuts
  • 1x 150mm full-length rubber band (white)
  • 1x 160mm full-length rubber band (black)
