Manufacturer : TrueRC / Référence : TRUERC-X-RAY-RHCP

X-RAY 5.8GHz RHCP By TrueRC

Hors stock
€159.00
Out-of-Stock Notify me when the product is available again

16 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

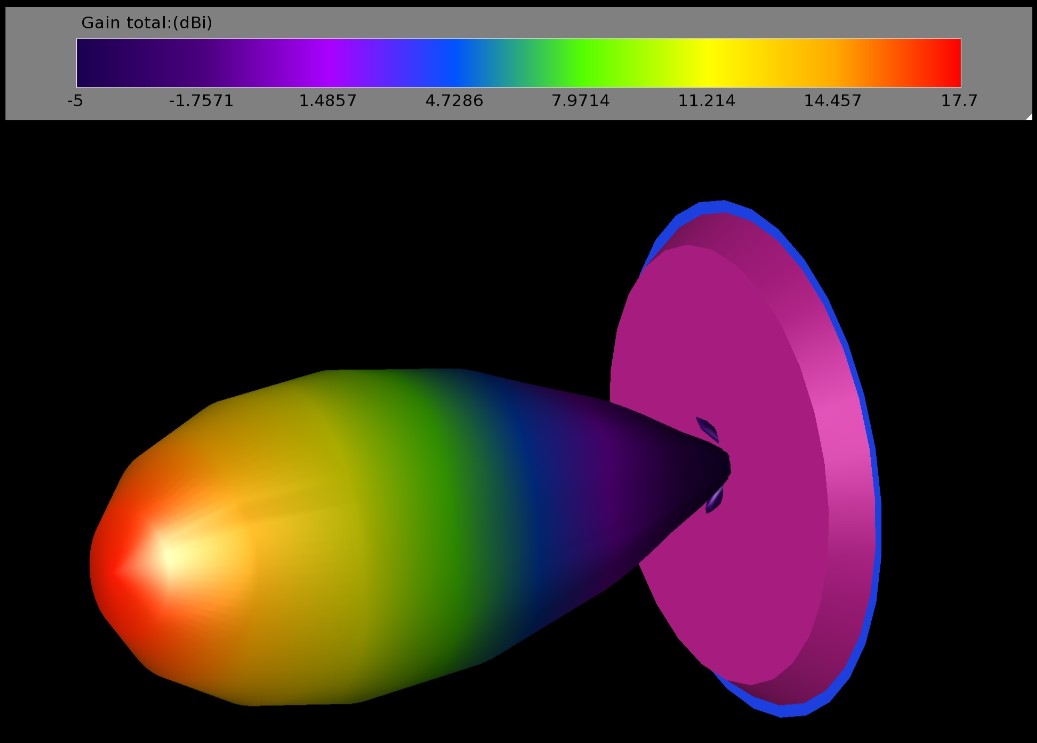

New to TrueRC, the X-RAY 5.8GHz features a single-powered panel format with super-low sidelobes that maximize mainlobe efficiency.

Bullet Points

  • Very low side lobes and excellent front to back ratio.
  • Excellent axial ratio and efficiency over a large bandwidth

Specifications



  • Frequency: 5.4-6GHz ‘
  • Gain: 17-18 dBic
  • Polarization: RHCP
  • Beam-width*: 60deg
  • Beam-width @-3dB**: 24deg.
  • Connector: SMA
  • Dimensions: 151mm dia. x 20mm
  • Weight: ~100g

*Coverage of individual antenna where reception is at least equivalent to an omni.

**Coverage of individual antenna where at least 70% of the max range is obtained.

Included

  • 1x X-RAY 5.8GHz
