Manufacturer : Parallax / Référence : VALKYRIE-FRAME-MINI

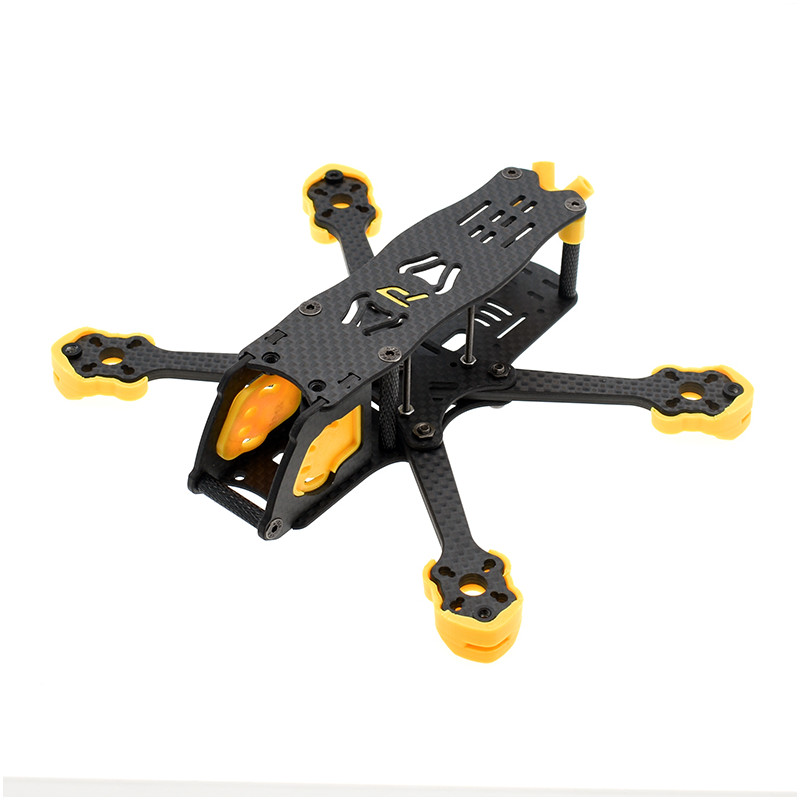

Valkyrie Mini 3.5" Frame Kit (O4 pro compatible) By Parallax

Hors stock
€49.90
Color : Yellow TPU
Color : Yellow TPU Color : Black TPU
Product available with different options Notify me when the product is available again

5 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Valkyrie Mini is Parallax FPV's 3.5" hybrid and convertible frame.

04 pro, O3, HDZero, Walksnail, Vista and analog compatible, this frame allows you to go from a light and agile freestyle chassis to a versatile and robust Cinewhoop in a few minutes thanks to the Whoopkit.

The frame has the necessary space to comfortably accommodate all the useful components in this format.

This 3.5" version of the Valkyrie offers various mounting solutions to best integrate the camera, VTX and RX suited to your needs.

The STL files of the TPUs are available HERE

Specifications

  • Weight (carbon and hardware): 75g
  • Weight (carbon, hardware and TPU): ~85g
  • Weight with Whoopkit (carbon, hardware and TPU): ~190g
  • Geometry: squished X 155mm
  • Arm thickness: 4mm
  • Top plate thickness: 2mm
  • Bottom plate thickness: 2mm
  • Middle plate thickness: 2mm
  • Flat camera thickness: 2.5mm
  • Propeller size: 3.5"
  • Stack compatibility: 20mm / 25.5mm
  • VTX compatibility: O3, Walksnail V1, Walksnail V2, HDZero Freestyle v2, analog
  • Camera compatibility: 14 to 21mm, any mounting hole type
  • Carbon: T300 matte chamfered
  • Screws: 12.9 steel screws, aluminum spacers
  • Height at the front: 30mm

Included

  • 4x Arm
  • 1x Top plate
  • 1x Bottom plate
  • 1x Middle Plate
  • 1x Cam plates set
  • 1x Set of screws
  • 1x Lipo pad
  • 1x Strap

TPU

  • 1x 19mm and O3 camera mount
  • 1x Front immortal T antenna mount
  • 1x VTX holding set and O3 antenna and walksnail dual
  • 1x SMA pigtail mount
  • 1x Immortal T rear antenna mount
  • 4x Arm protection with landing pad

Type configuration

  • Motors : GTSV3 1804 3450kv Rcinpower
  • Stack : F7 Mini 35A 3-6S 8bit SpeedyBee
  • Propellers : 3520 Gemfan
  • VTX : DJI O3, Walksnail Avatar V2
  • Camera : DJI O3, Walksnail V2
