TrueRC BLAZE 5.8GHz Antenna - MMCX90° LONG 110mm - RHCP
TrueRC BLAZE 5.8GHz Antenna - MMCX90° LONG 110mm - RHCP
TrueRC BLAZE 5.8GHz Antenna - MMCX90° LONG 110mm - RHCP
TrueRC BLAZE 5.8GHz Antenna - MMCX90° LONG 110mm - RHCP
TrueRC BLAZE 5.8GHz Antenna - MMCX90° LONG 110mm - RHCP
Manufacturer : TrueRC / Référence : *TRUERC-BLAZE-MMCX90-72-RHCP

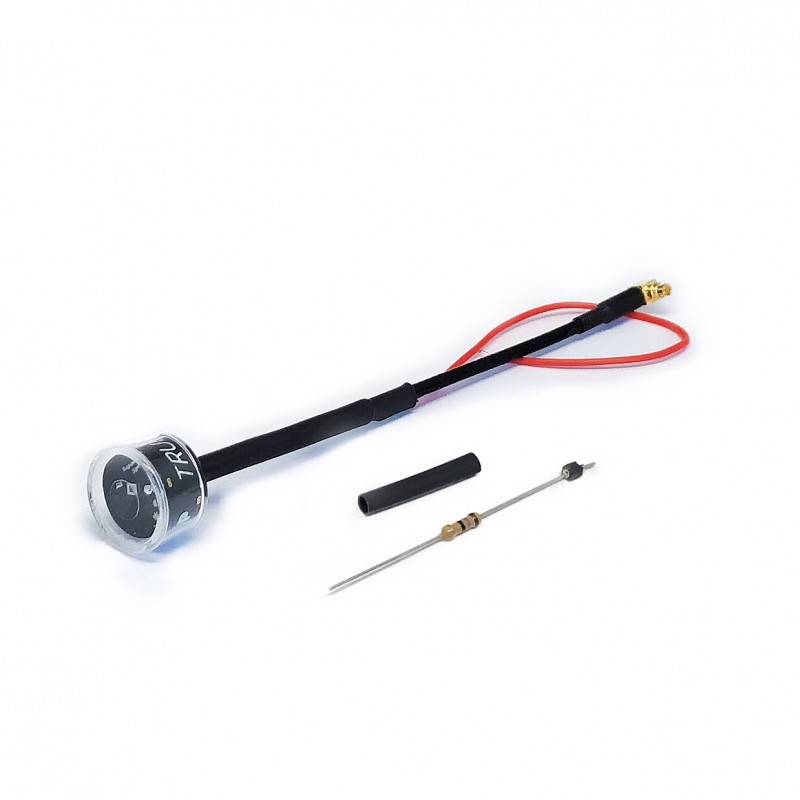

TrueRC BLAZE 5.8GHz Antenna - MMCX90° 72mm - RHCP

En stock
€15.75
€9.45
-40%
Color : Blue
Color : White Color : Blue
Last items in stock

1 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Featuring our latest high fidelity* circular polarized antenna design added of a CREE™ XQ-E high intensity LED, the BLAZE 5.8 is no ordinary antenna. It is a high performance CP omni doubling as a powerful LED light. Thanks to advanced RF design and heat management, this antenna possibly outshines anything in both the 5.8GHz and visible spectrum.

FEATURES

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing.
  • CREE™ XQ-E high intensity LED.
  • Wider Bandwidth (5.4-6.3GHz).
  • *Pattern stay true even in harsh/sub-optimal installations.
  • Single wire 5V LED power hookup with micro connector.
  • Available in red, green, blue and white.
  • Available with True-SMA connector.
  • Available with high quality dji compatible MMCX.

SPECS

  • Gain: 1.9dBic
  • Cross-Polar Rejection: -15 to -30dB, (1.9%)
  • Bandwidth: 5.4GHz-6.3GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.2:1
  • Weight: 7.9 g
  • Dimensions(head): 16.5mm dia. X 10.7mm height.
  • Length: 80mm to 125mm.
  • Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.
  • Connector: True-SMA or MMCX90
  • Current draw: 100-110mA with included resistor.
  • Max current: 400mA.
  • Supply voltage: 5V with included resistor.
  • Approx luminous flux @100mA: 20 to 50 Lumen depending on color.

INCLUDES

  • 1x Antenna.
  • 12 or 18ohms resistor depending on color.
  • Micro power connector.
  • Heat shrink.
