Manufacturer : Holybro / Référence : 31246

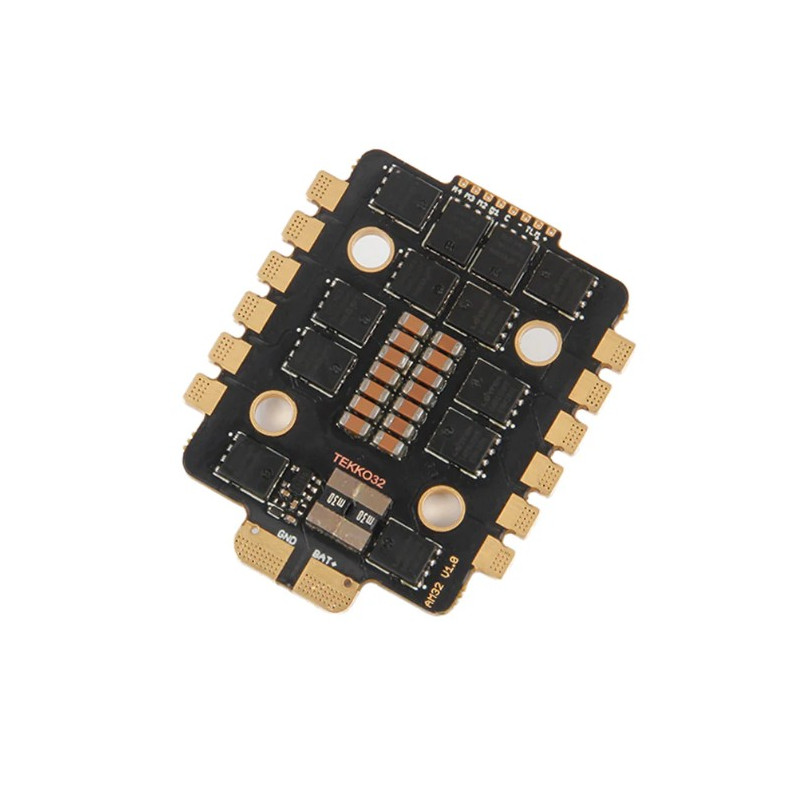

Tekko32 F4 4in1 Mini 50A AM32 ESC By Holybro
En stock
€75.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Tekko32 Mini F4 50A is a 20x20 ESC from HolyBro that supports AM32 firmware, 4-6S voltage, and DShot 150/300/600/1200 Multishot/OneShot/Proshot/PWM.
It features a faster F4 MCU and high-quality MOSFETs with low internal resistance.
Specifications
- Continuous current: 50A x4
- Burst current: 60A x4
- Battery support: 4-6S
- PWM frequency: 8k to 96k
- Support DShot 150/300/600/1200
- Support MultiShot/OneShot/Proshot/PWM, etc.
- ESC Telemetry Support
- Onboard analog current sensor
- AM32 Firmware
- 1000uf 35v capacitor included
- Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimensions: 46.6x38x6mm / Weight: 15.6g
- Firmware target: AM32_F4A_4IN1_F421
Included
- 1x Tekko32 F4 50A Mini ESC
- 4x M2 Anti-Vibration Silicone Grommet Insert
- 4x M3 Anti-Vibration Silicone Grommet Insert
- 1x Electrolytic capacitor: 1000uF 35v
- 1x 8pin to 8pin 1mm pitch 65mm cable
- 1x 8pin to 8pin 1mm spacing 25mm cable
