Manufacturer : Team BlackSheep / Référence : A-TBSS-AIO1L

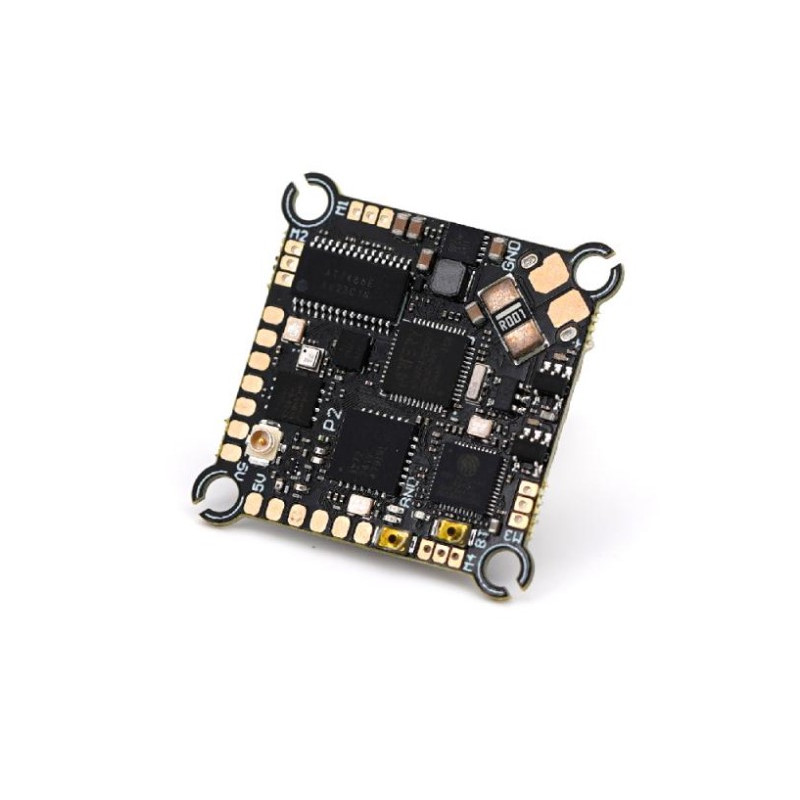

TBS Lucid AIO 1-2S CRSF
Hors stock
€74.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Team BlackSheep's Lucid AIO is compatible with 1-2S voltage and supports long range R/C protocols.
Designed for 25*25mm mounting, this AIO has the power to run 2S boards without burning them out, while still being able to run 1S batteries at the lowest voltage.
The Lucid is a 3in1, it includes a flight controller, a 4in1 ESC and a Crossfire receiver, plus it is equipped with an OSD for analog.
Specifications
- MCU : AT32F435RMT7, 288MHz
- Gyro : ICM-42688P
- ESC : 4x 7A (24A total max) with telemetry and current sensor
- BEC : 5V 2A
- OSD : AT7456E
- Blackbox : 8M
- UARTs : 3 (UART1/UART3/UART5)
- Input : 1-2S
- Size : 28mm x 28mm (30mm x 30mm outer dimensions)
- Mounting : 25mm*25mm
- Weight : 4g
- UART1 (recommended) : Spare
- UART2 (recommended) : Smart Audio
- UART3 (recommended) : DJI O3 Air Unit
- UART5 (recommended) : CRSF Rx (included on the board)
Included
- 1x AIO TBS Lucid
- 1x TBS Crossfire RX Micro Antenna
- 4x Damper
- 4x Separate Motor Socket
