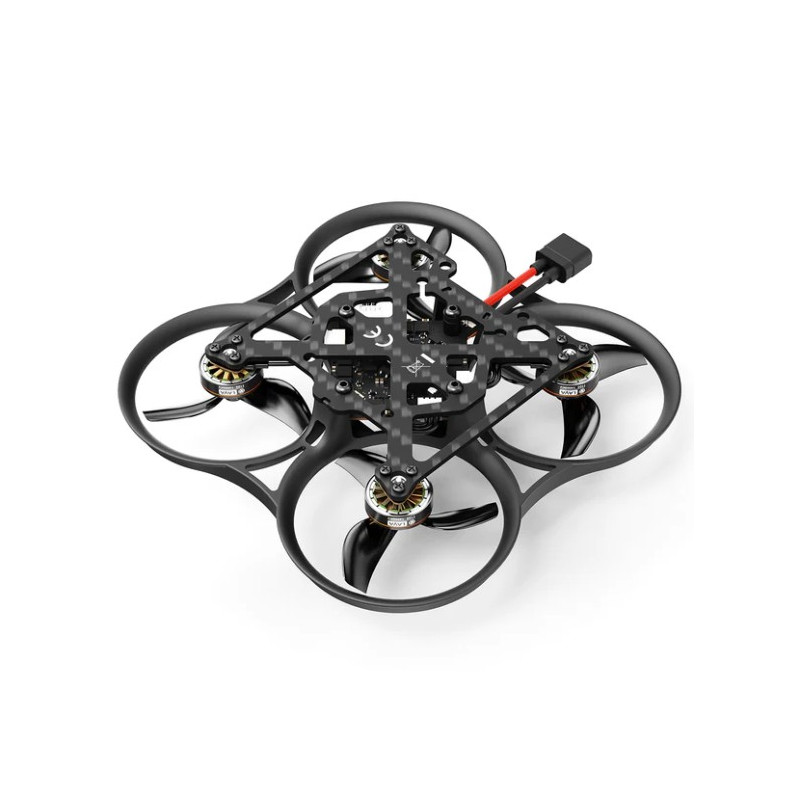

Pavo Pico II Brushless Whoop BNF ELRS 2.4G (No VTX) By BetaFPV
Related accessories
Technical characteristics
The Pavo Pico II represents the new generation of compact cinewhoops, fully redesigned to provide flawless integration with the DJI O4. Its reinforced structure and guided mounting system allow for simple and precise installation while ensuring optimal rigidity, essential for demanding shooting conditions.
This new version relies on the O4 Bracket II, equipped with four dampers, designed to effectively eliminate jello effect and deliver perfectly stabilized footage. The redesigned carbon plate, compatible with both DJI O4 and DJI O4 Pro air units, offers a durable and future-proof solution that adapts to the needs of pilots seeking the latest technologies.
Powered by upgraded LAVA 1102 motors, the drone maintains an ultra-light weight of 53.7 g, ensuring exceptional maneuverability. The result is a compact and highly efficient platform capable of producing smooth, pristine 4K footage, no matter the flying environment.
Thanks to its combination of power, lightness, and advanced compatibility, the Pavo Pico II stands out as a benchmark for pilots seeking an ultra-compact cinewhoop with professional-grade performance.
This BNF includes the LAVA 1102 14000KV motors, an F4 20A AIO, Gemfan 45mm propellers, and an ExpressLRS 2.4G receiver.
Note : DJI O4 air unit not included

Specifications
- Color: Black
- Wheelbase: 80mm
- Frame: Pavo Pico II Brushless Whoop Frame
- Battery: Lava 2S 550mAh, LAVA 2S 450mAh (not included)
- FC: F4 2-3S 20A AIO FC
- Props: GF 45mm 3B Prop
- Motor: LAVA 1102 | 14000kv
- Battery Connector: XT30
- Battery Slot: 16*12.7mm
- Flight Time: 6:30 min (O4 Version with LAVA 2S 550mAh battery)
- Weight: 39.1g
- RX Version: Serial ELRS
Included
- 1x Pavo Pico II Brushless Whoop Quadcopter PNP
- 1x Top Plate for O4 Air Unit Bracket II
- 1x Bottom Plate for O4 Air Unit Bracket II
- 1x O4 Air Unit Pro Bracket
- 4x GF 45mm 3-Blade Propellers
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0-4Pin Adapter Cable
- 6x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
- 6x Shock-absorbing Balls for O4 Air Unit Bracket II (8.8mm)
- 6x Shock-absorbing Pads for O4 Air Unit Bracket II (1.5mm)
- 6x M2*10 Cylindrical Socket Head Cap Screws
- 6x M2*4 Flat Head Socket Cap Screws
- 6x M2*4 Socket Head Cap Self Tapping Screws
- 8x M1.4*6 Phillips Flat Washer Head Tapping Screws
- 2x 5.8G VTX Antenna
- 1x 5.8G VTX Antenna Mount
- 1x Phillips Screwdriver
- 1x H1.5 Hex Screwdriver
Note : DJI O4 air unit not included
