Manufacturer : Iflight / Référence : F019484

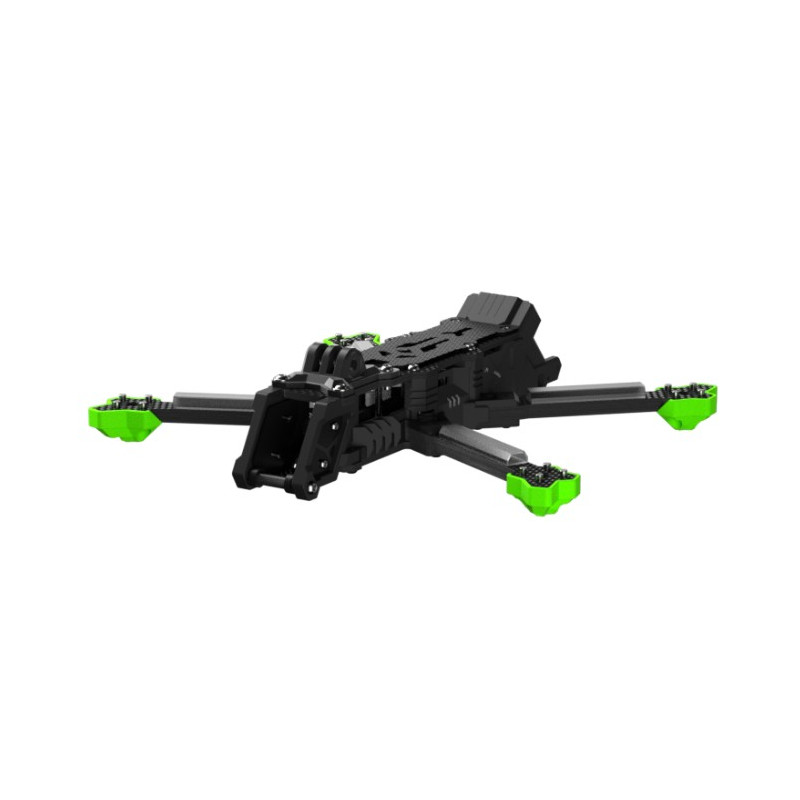

Nazgul Evoque F5 V3 Frame Kit By Iflight

Hors stock
€99.90
Out-of-Stock Notify me when the product is available again

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Iflight further enhances its popular 5" Nazgul Evoque drone with this third version, featuring an innovative modular DeadCat/X frame design!

Whether you prefer the DC geometry for cinematic shots with no props in view or the agile X geometry for freestyle maneuvers, the Nazgul Evoque F5 V3 adapts to all your flight scenarios.

This O4 Pro compatible versatile companion offers better heat dissipation than its predecessor, along with a layout designed for improved interference management.

Specifications

  • Frame wheelbase: 236mm (DeadCat-default) / 239mm (True X-switchable)
  • Frame Dimension(LxWxH): 230*207*54 mm (DeadCat)/207*199*54mm(True X)
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 3mm
  • Max Flight Stack Height: 25mm
  • Max VTX Height: 13mm
  • Motor Mounting: 16x16mm /Φ3mm
  • Flight Stack Mounting: 20*20/Φ3mm
  • VTX Mounting: 25.5*25.5/Φ2mm
  • Weight: 256g±10g
  • Compatibility: DJI O4 Air Unit Pro/ BLITZ Whoop 1.6W VTX/ BLITZ Mini Force 600mW VTX

Bullet points

  • DeadCat/X switchable Geometry
  • DJI O4 Pro compatible
  • Versatile Quad
  • Improved Safety and Stability
  • Front-Mounted Air Unit design
  • Improved Heat Dissipation

Included

  • 1x Evoque F5 V3 Frame Kit
  • 1x Injection-Molded Set
  • 1x Screw Bag
  • 2x IPEX to RP-SMA Antenna Pigtails
  • 2x Anti-slip Battery Pad
  • 2x Battery Strap
