Manufacturer : GEPRC / Référence : GP107754

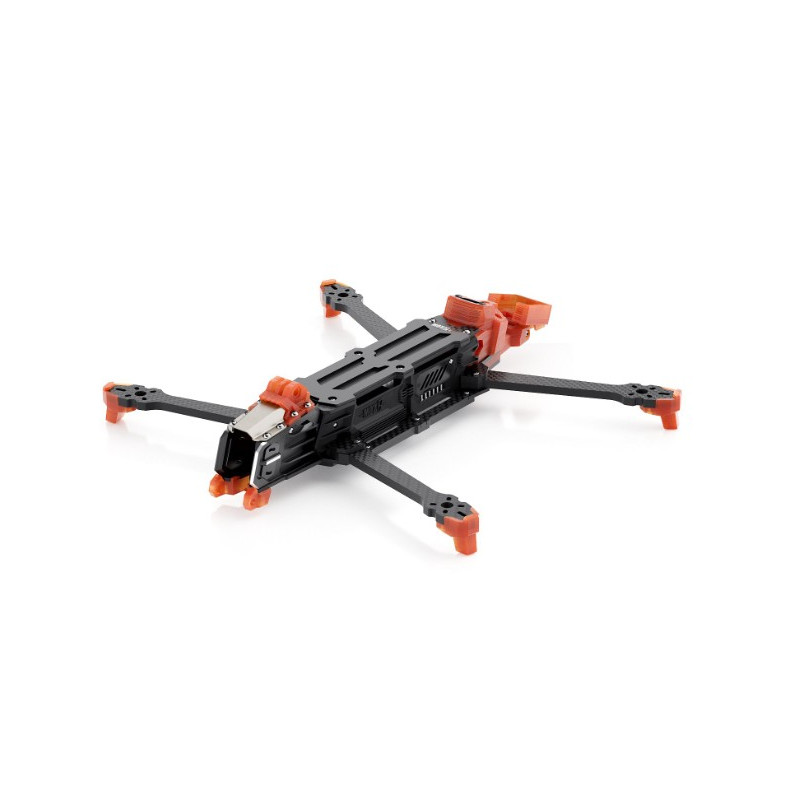

MOZ7 V2 Frame Kit By GEPRC
Hors stock
€99.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Break the distance and capture extraordinary images with the new MOZ7 series!
GEPRC's MOZ7 V2 is a 7.5" Long Range drone that continues the design concept of traditional models with a custom protective side plate. Two battery and action camera mounting options are available to create your own setup.
Bullet points
- Compatible with the O4 Air Unit Pro HD VTX, with no props visible in the camera view.
- Tech-inspired design featuring aerospace-grade aluminum camera mounts and a metal top plate for lens protection.
- Vertical reinforcement structure and 6mm-thick arms ensure flight stability and support for bottom-mounted batteries.
- O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.
- Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satellite lock.
- Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.
- Action camera mount is interchangeable with metallic canopy for center of gravity adjustment.
- Durable landing gear prevents the bottom plate from scraping during landings.
Specifications
- Dimension: 376mm × 303mm × 35.5mm
- Weight: 270g ± 5g
- Wheelbase: 336mm
- Top Plate Thickness: 2.5mm
- Bottom Plate Thickness: 2.5mm
- Arm Thickness: 6mm
- Clamp Plate Thickness: 3mm
- FC Mounting Holes: 30.5×30.5mm（M3) , 25.5×25.5mm (M2) , 20x20mm (M3)
- VTX Mounting Holes: 25.5×25.5mm（M2），20x20mm（M2）
- Motor Mounting Holes: 16x16mm / 19x19mm (M3)
- Lens Mounting Holes: 20mm (M2)
Included
- 1x GEP-MOZ7 V2 Frame Kit
- 2x M20*300mm battery straps
- 1x Upper battery anti-slip pad
- 1x Lower battery anti-slip pad
- 1x Printed parts pack
- 1x 1.5mm L-shaped screwdriver
- 2x 2mm L-shaped screwdrivers
- 1x 3mm L-shaped screwdriver
- 1x M8 wrench
- 1x Screw pack
