Mobula8 2S Analog UART BNF ELRS 2.4G By Happymodel
Related accessories
Technical characteristics

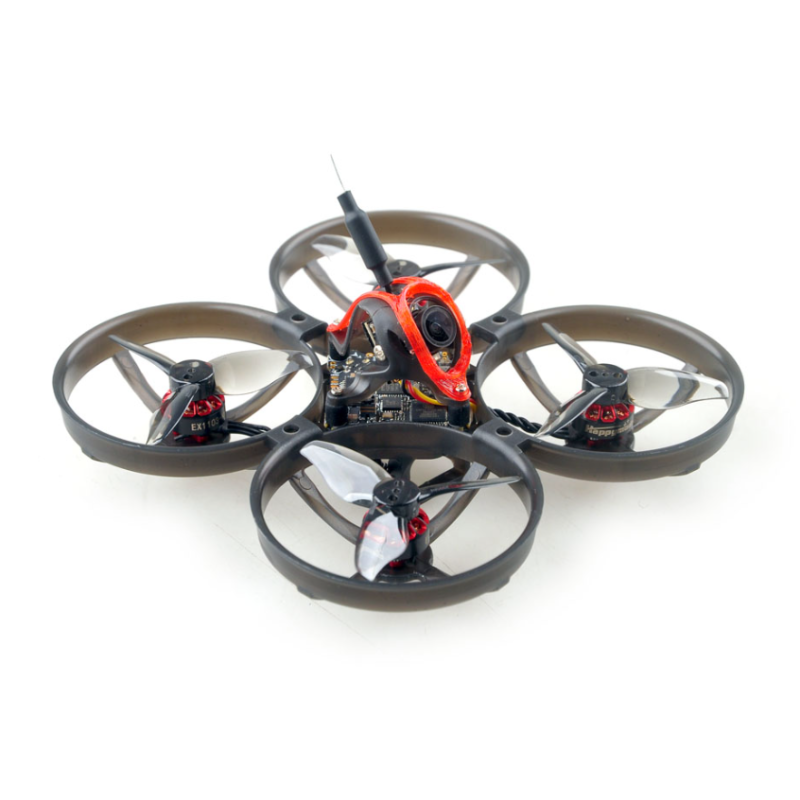

The Happymodel Mobula8 is a 85mm whoop.
This new UART version brings a new AIO X12 ELRS Pro V1.1.
The built-in VTX and built-in UART ELRS receiver are controlled by the ESP32 chip.
Now you have a free set of UART and you will be able to flash single ExpressLRS firmware for this Mobula8.
Specifications
- Wheelbase: 85mm
- Size: 120mm*120mm*50mm
- Weight: 43g
- AIO : X12 ELRS Pro V1.1 5in1 built-in ELRS 2.4G V3.0
- VTX : OpenVTX 0~400mW
- Camera : Caddx Ant
- Motors : EX1103 11000KV
- Props : Gemfan 2023-3
- Receiver : ExpressLRS 2.4G SPI
- Voltage : 1-2S
- Connector : XT30
Included
- 1x Mobula8 Frame
- 1x X12 ELRS Pro flight controller built-in SPI ELRS 2.4G receiver
- 4x EX1103 KV11000 brushless motor
- 1x Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)
- 1x Caddx ANT 1200TVL Camera
- 1x Onboard 5.8G Openvtx 0mw~400mw VTX
- 1x Canopy for 14mmx14mm camera
- 1x Screw driver
Customer reviews
Problème avec le retour caméra. Anthony stp arrête de posez des questions.Laisse moi te renvoyer le drone,je n'en demande pas un autre.Juste vérifie et si mes amis se son trompez je te présenterai mes plus plattes excuse. Cordialement Adrien
Nice drone to fly in the backyard. Hardware is a bit outdated. The latest ELRS firmware you can install is 3.5.1, newer will not fit into RX controller. I recommend to stay on default betaflight firmware to avoid problems.
Drone overheating
très bien
Пока не могу - ещё не получил
